Technical Specification



8008 core picture
Introduction date:
Frequency:

Technology:
Category:
Transistors:
Addressable memory:
Instructions:

History:

April 1972
8008      0.5MHz
8008-1  0.8MHz
P-channel silicon gate MOS technology
8 Bit microprocessor
3500 , 10 Micron
16K x 8-bits
48 with a 8 level stack, seven 8-bit registers and interrupt abilities

The 8008 was developed in tandem with the
4004 and was intended
to be a custom chip for CTC  but was rejected because it was too slow.

The Intel 8008 was the first 8-bit CPU. This Processor  was available  in two different speed. Because of the 8-bit data bandwidth the clock speed was
slower than the 4004. The Intel 8008 can address up to 16KB of memory, and was
developed in tandem with the 4004 and was intended to be a custom chip
for Computer Terminal Corporation's (CTC) new systems.
But the performance of the 8008 was lower than expected and CTC rejected
this processor.

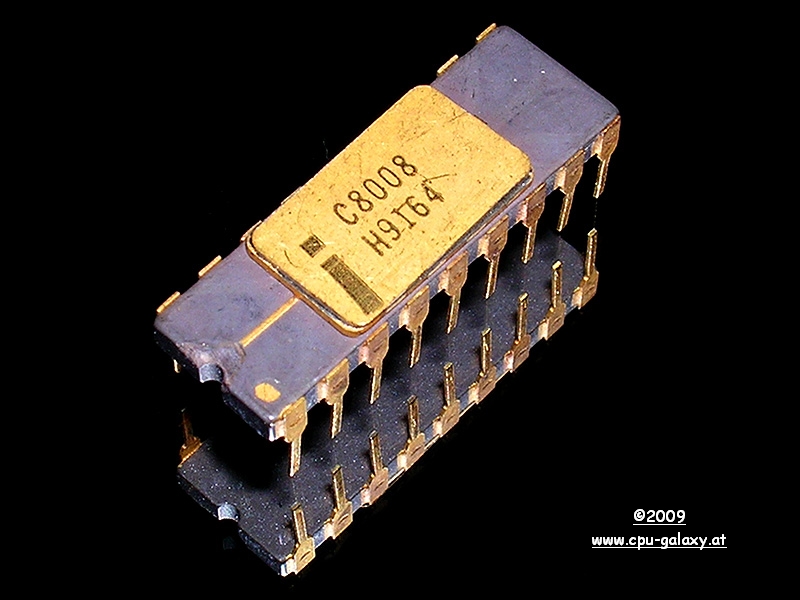

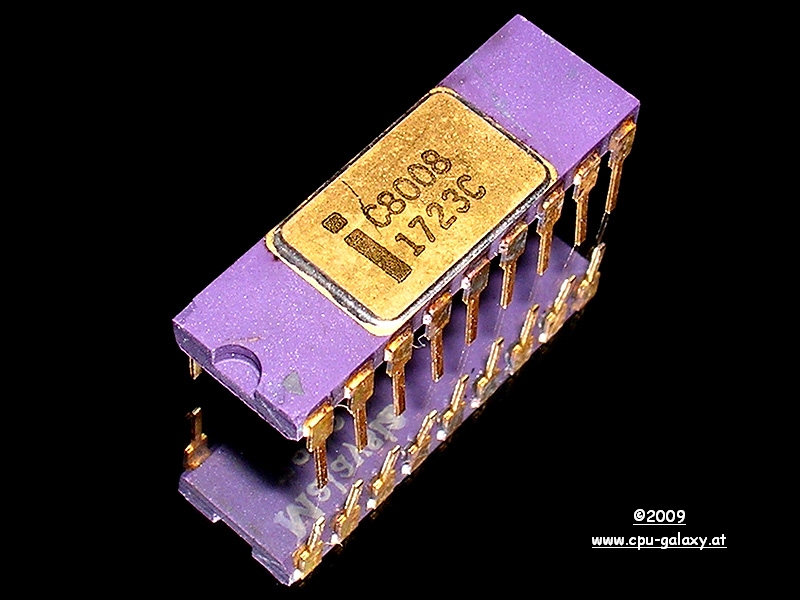

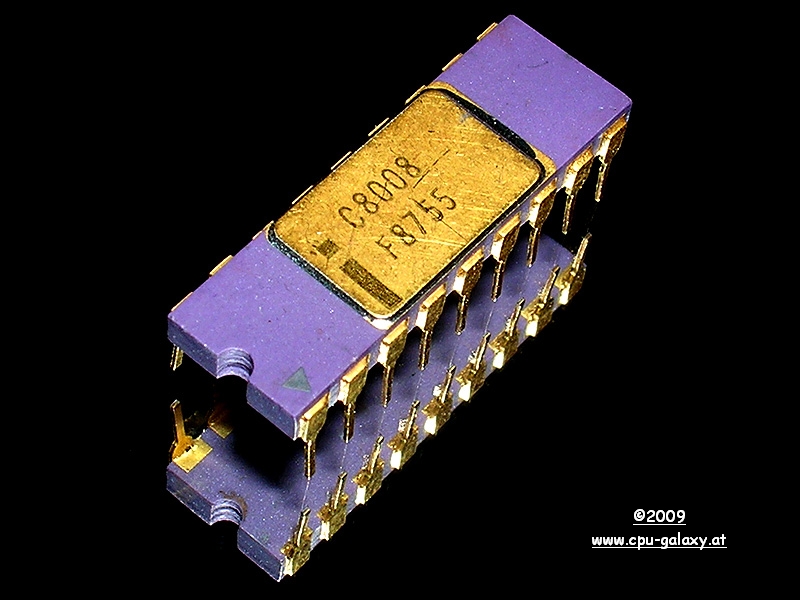

C8008 C8008 C8008

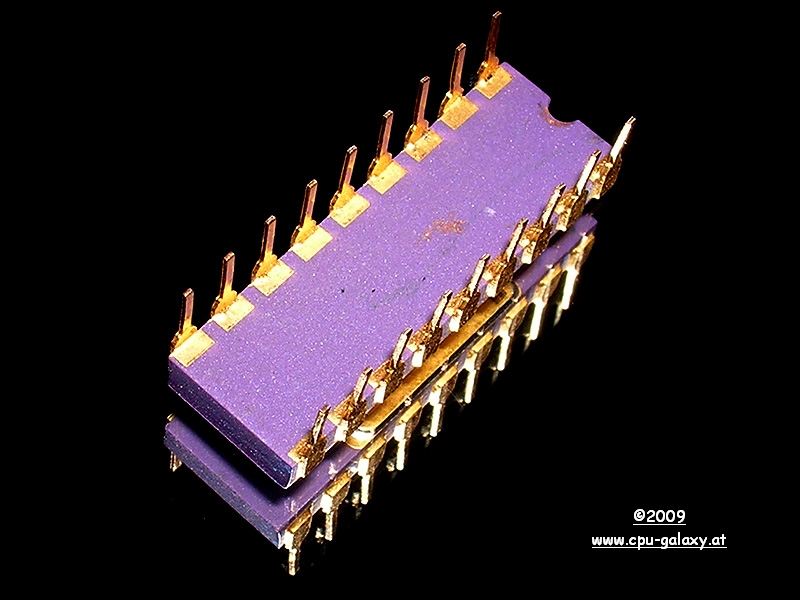

N.D.C.
bottom view

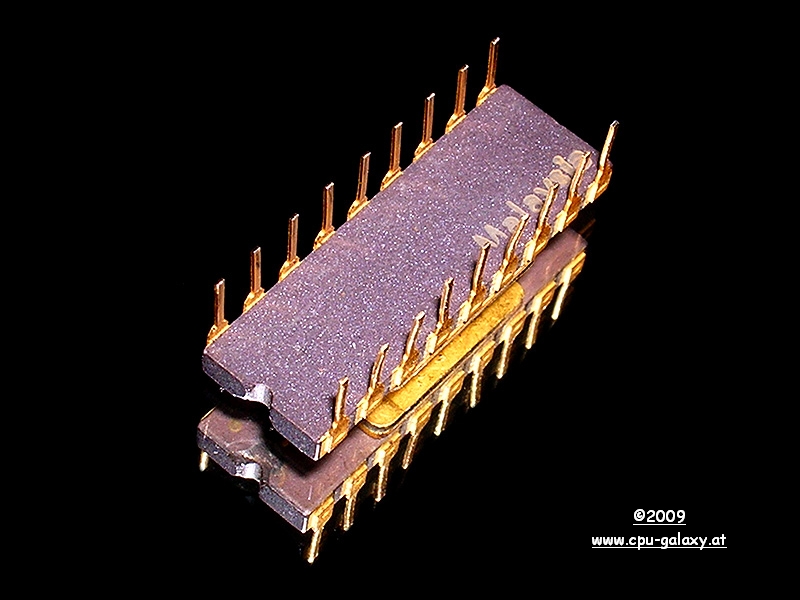

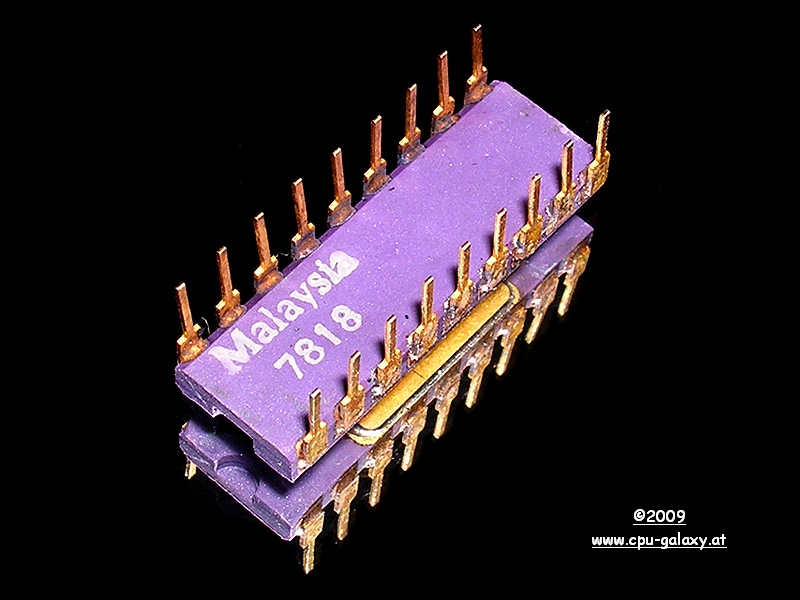

Malaysia, 7818
bottom view
ground strap, gold dot, N.D.C.
bottom view

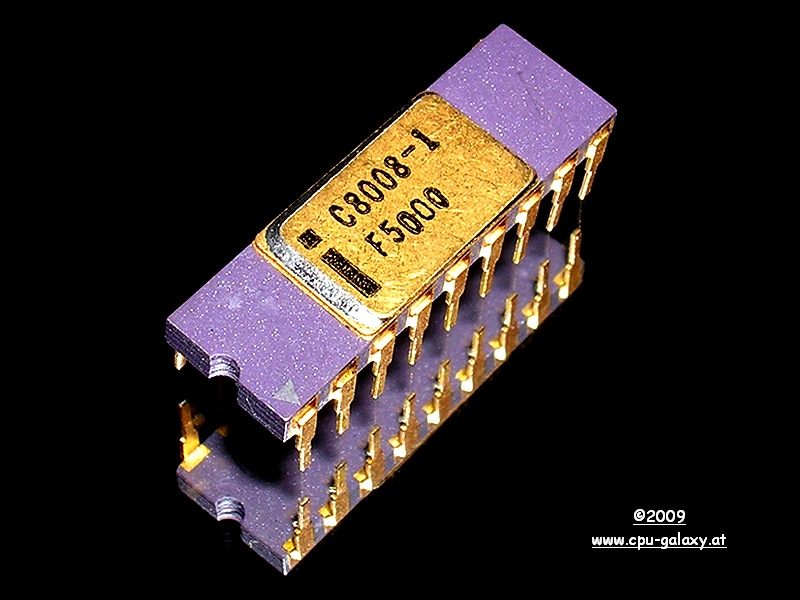

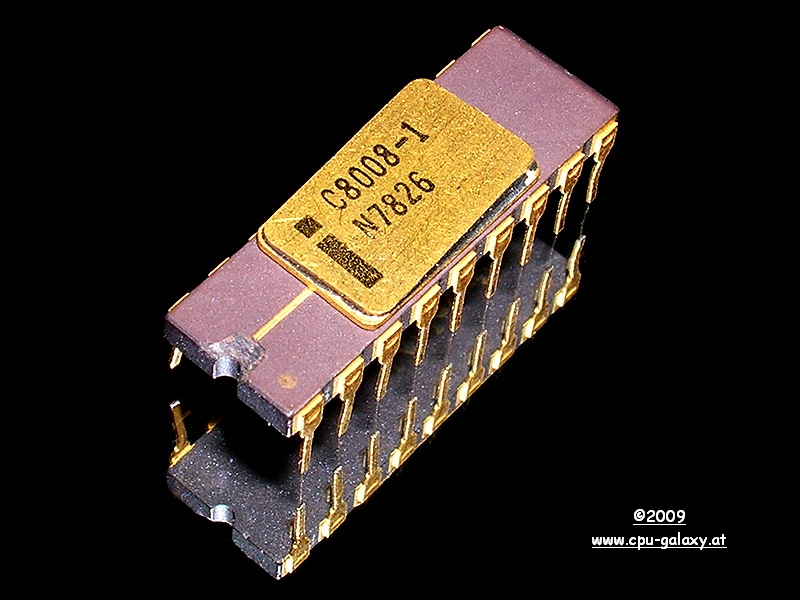

C8008 C8008-1 C8008-1

Ground strap, Malaysia, N.D.C.
bottom view
N.D.C
bottom view

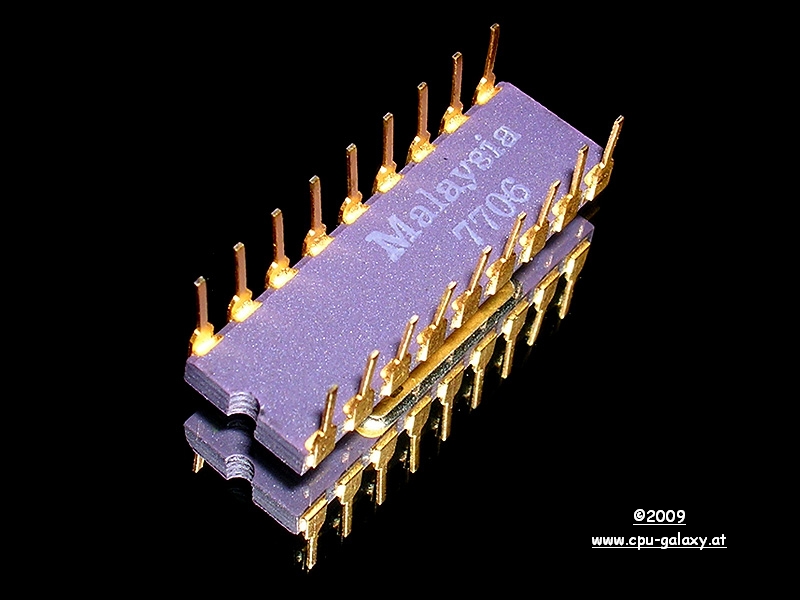

Malaysia, 7706
bottom view

C8008-1 C8008-1 C8008-1

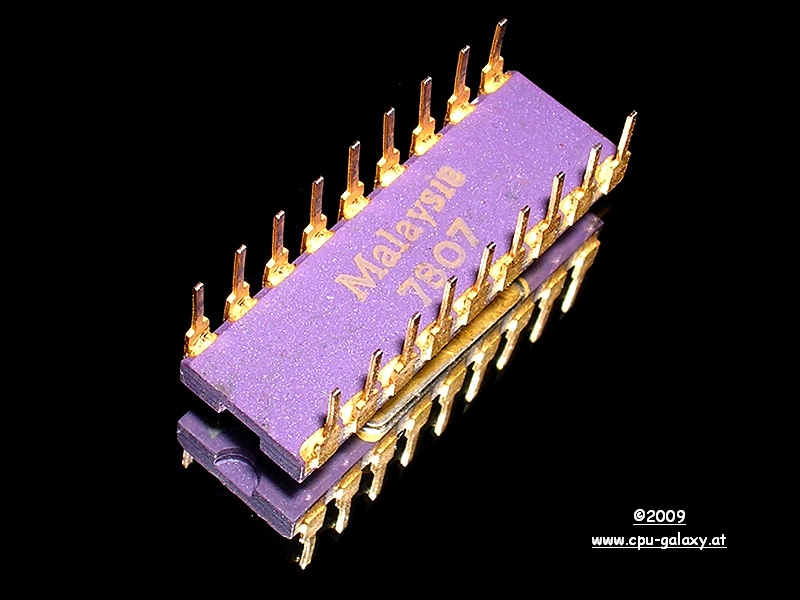

Three lines, Malaysia 7807
bottom view

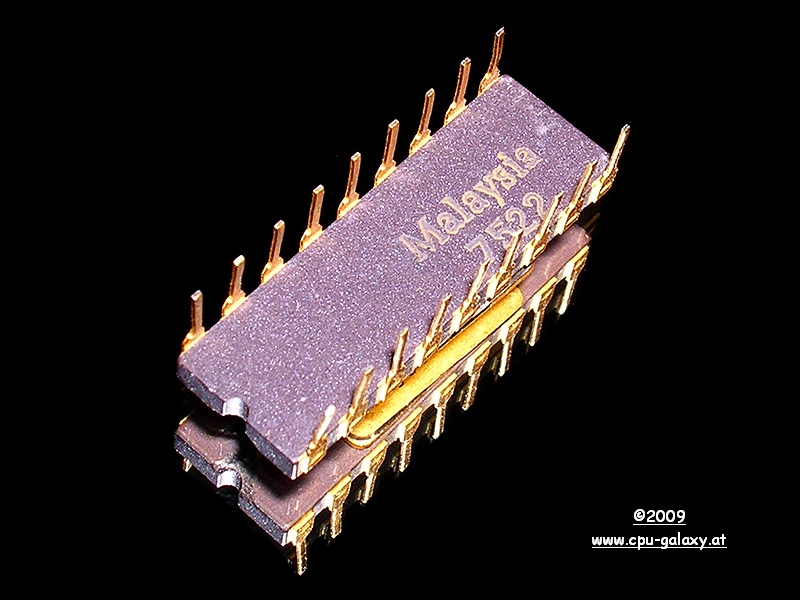

Ground strap, Malaysia, 7522
bottom view
Ground strap, Gold dot, N.D.C
bottom view

C8008-1 C8008-1 C8008-1

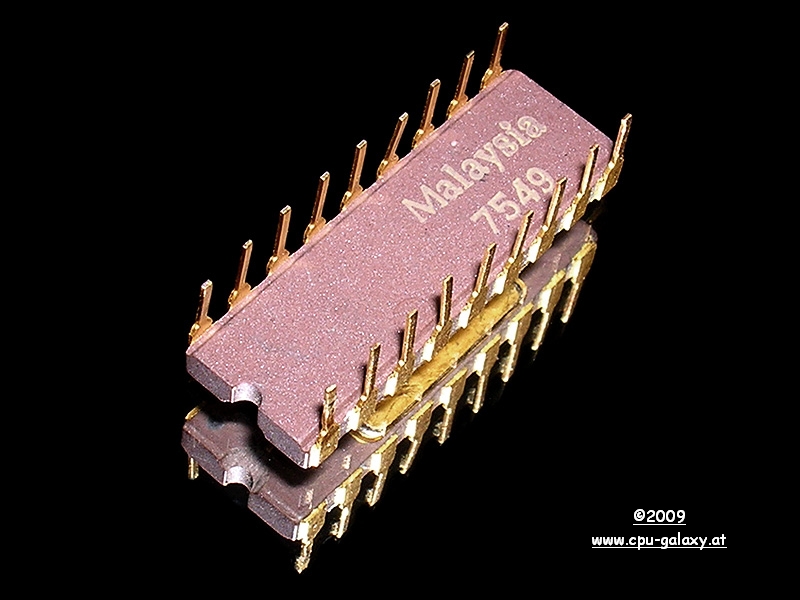

Ground strap, Malaysia, 7549
bottom view
Philippines, 7620
bottom view

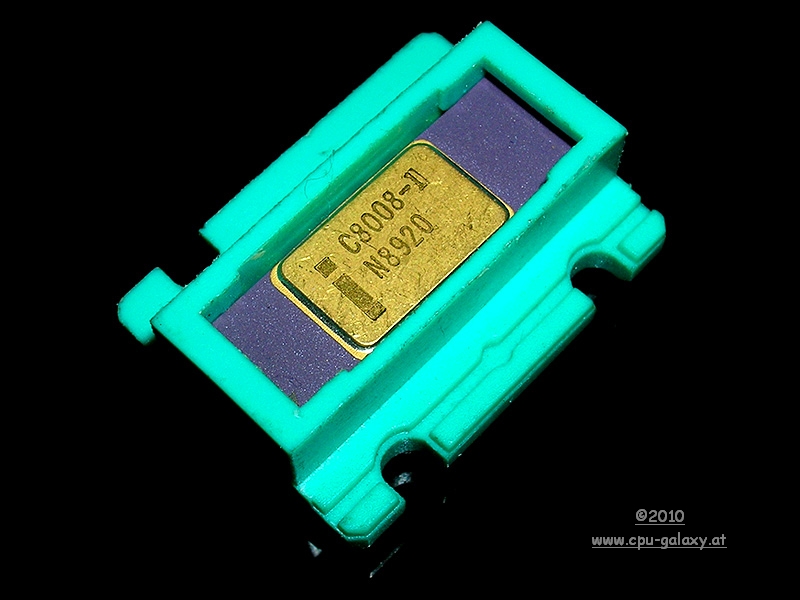

Malaysia, 7529 new in original carrier

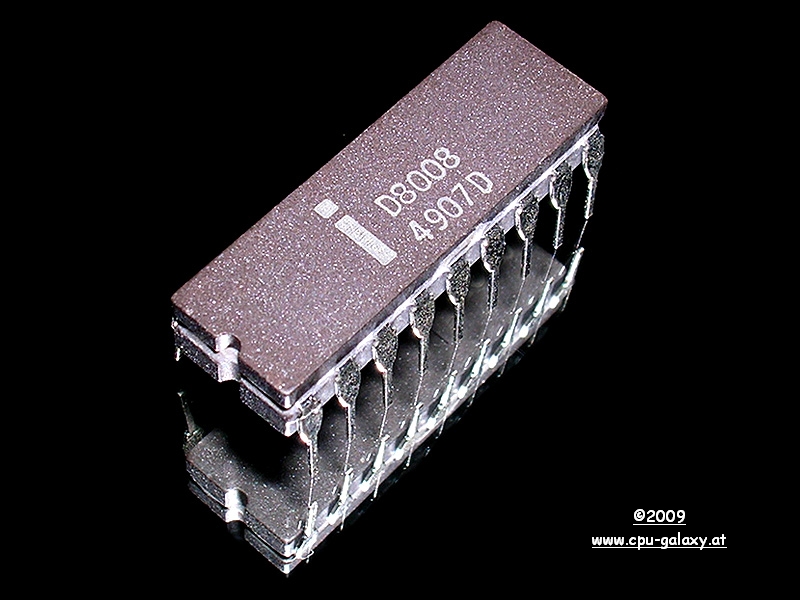

D8008 D8008-1 D8008-1

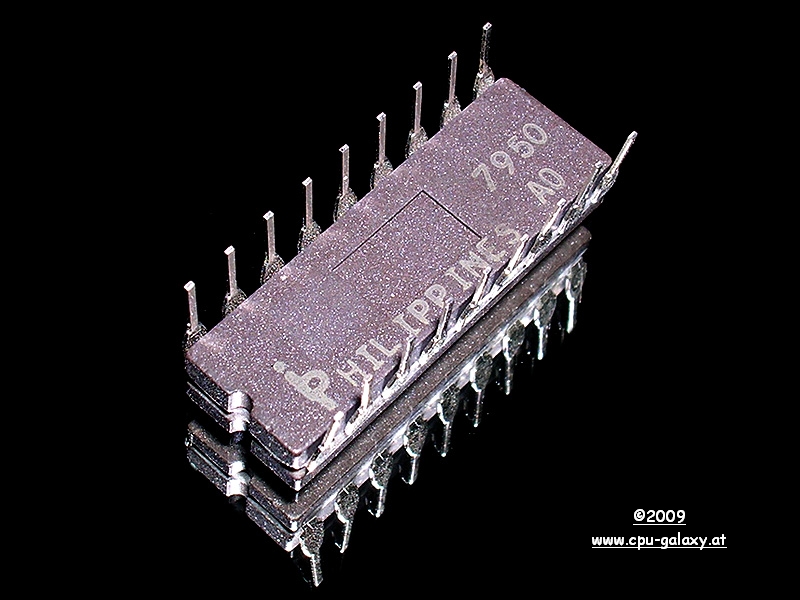

Philippines, 7950
bottom view

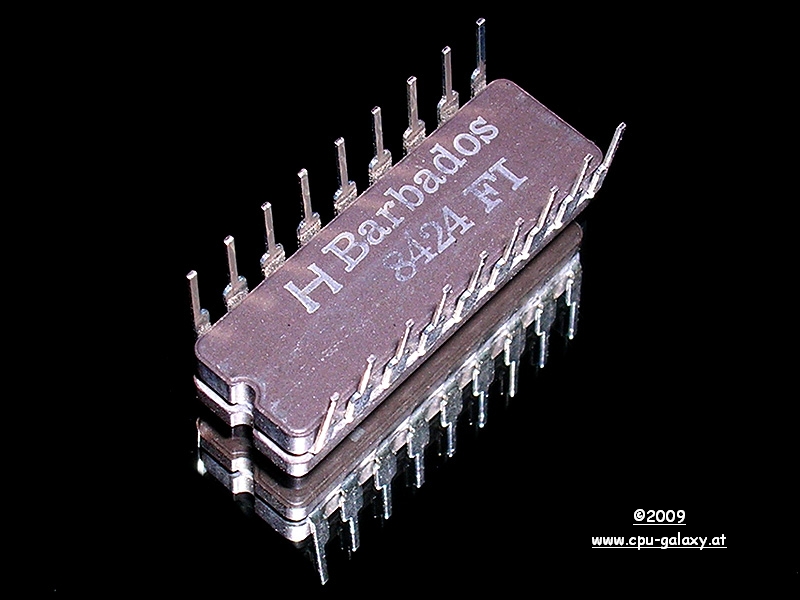

Barbados, 8424
bottom view

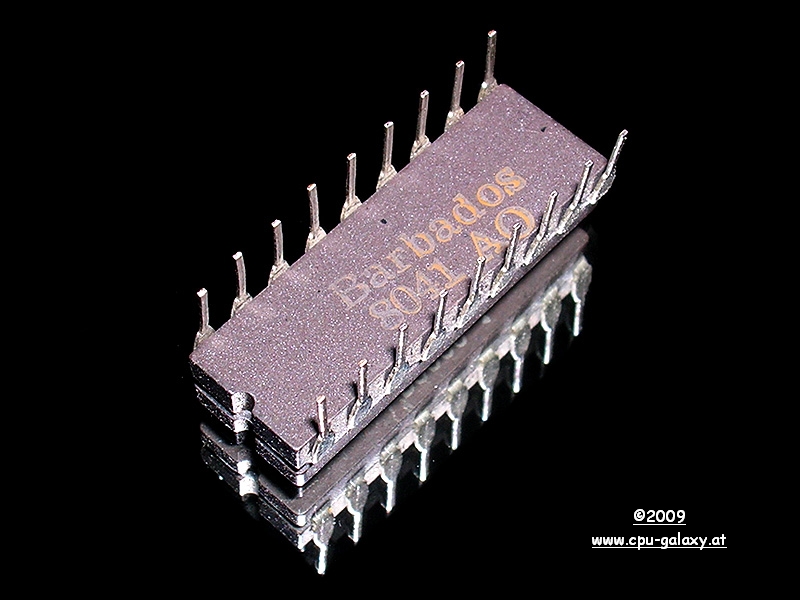

Barbados, 8041
bottom view

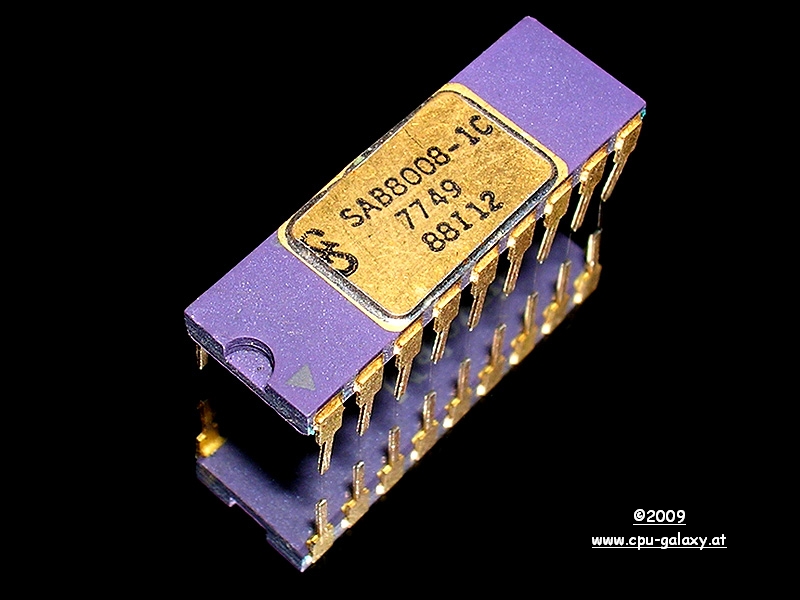

  Siemens, SAB8008-1C
Siemens and Microsystems International were second sources to the Intel 8008.

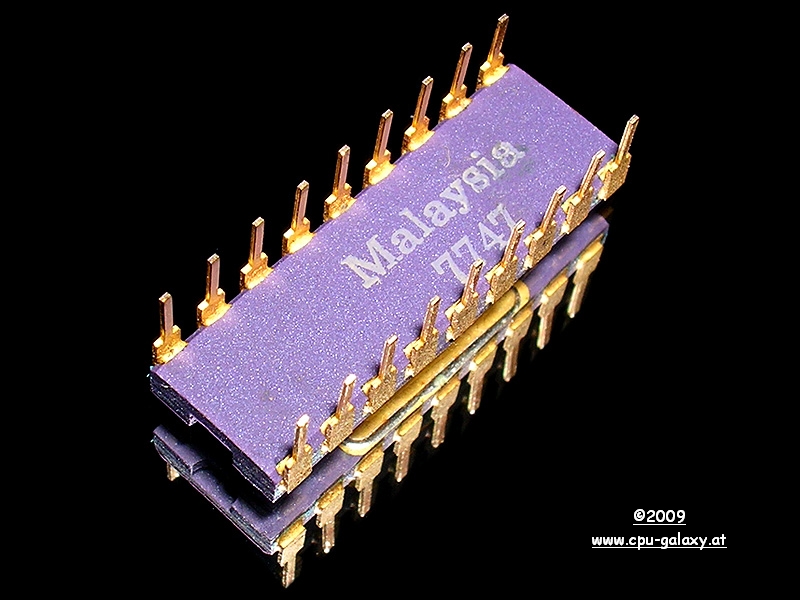

  Malaysia, 7747
bottom view

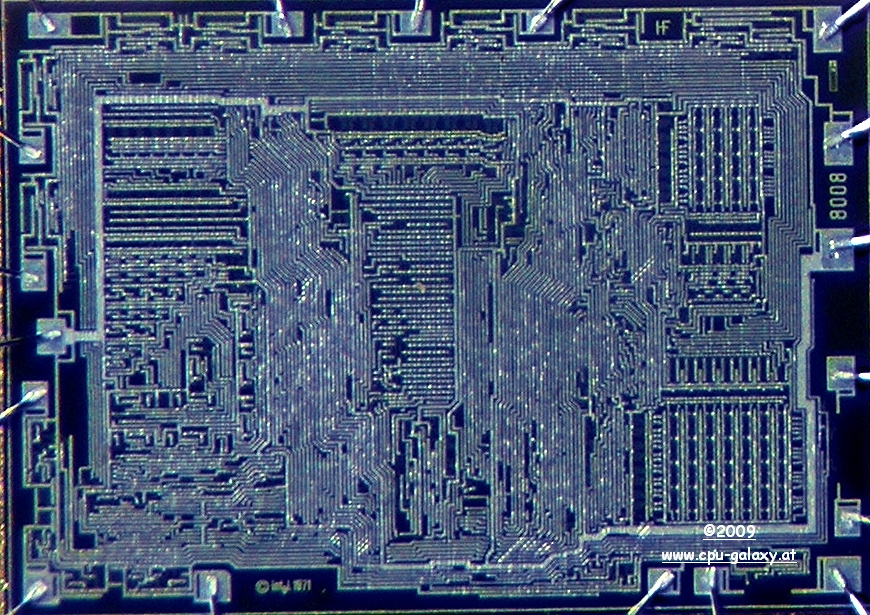

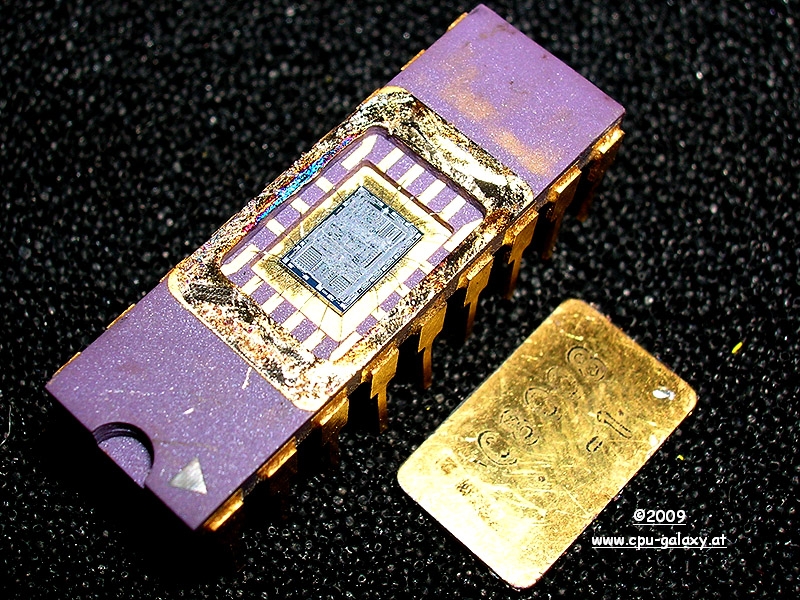

 Intel 8008 cap off Intel 8008 Pin out Intel 8008 die
