Intel  8080


Technical Specification

Introduction date:
Frequency:



Technology:
Category:
Transistors:
Addressable memory:
Instructions:

History:

April 1974
8080A      2.0MHz
8080A-1  3.125MHz
8080A-2  2.67MHz
8080B     4.0MHz
N MOS
8 Bit microprocessor
6000 , 6 Micron
64 Kbytes
78 with six 8-bits registers

The 8080 was an enhanced version of the 8008 and had
10 times the performance of the 8008

C8080A C8080A C8080A-1
Malaysia, 7724 Malaysia, 7552 Malaysia, 7603
D8080A D8080A D8080A
Malaysia, 7848 Malaysia, 8313 Malaysia
D8080A-2 MD8080A/B P8080A
Malaysia, 7847  Malaysia, 8343 Philippines, 8130
P8080A P8080A-2

Malaysia Philippines, 7920


More Info and Pictures Intel 8080

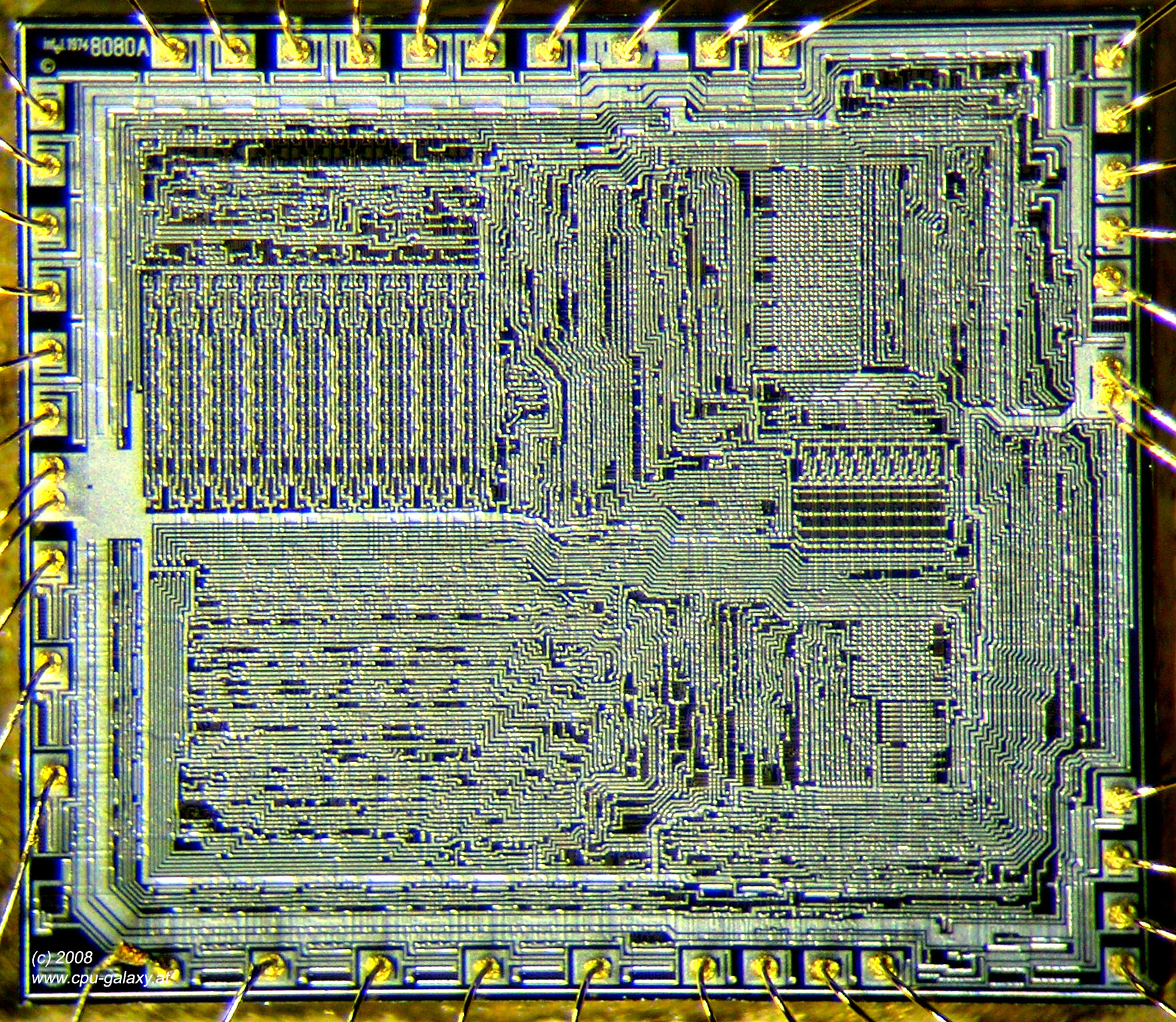

Intel 8080 Core

Download HIRES (1700x1500) Core Picture

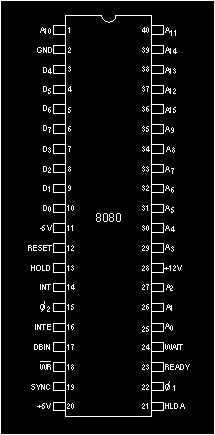

8080 Pin out introduction of the Intel 8008
