Intel  8085


Technical Specification

Introduction date:
Frequency:
Technology:
Category:
Transistors:
Addressable memory:
Instructions:

History:

March 1976
3,0 MHz
N MOS
8 Bit microprocessor
6500 , 3 Micron
64 Kbytes
78

The 8085 was an improved version of the 8080 with 100%
software (not pin) compatibility but needed only single +5V power supply

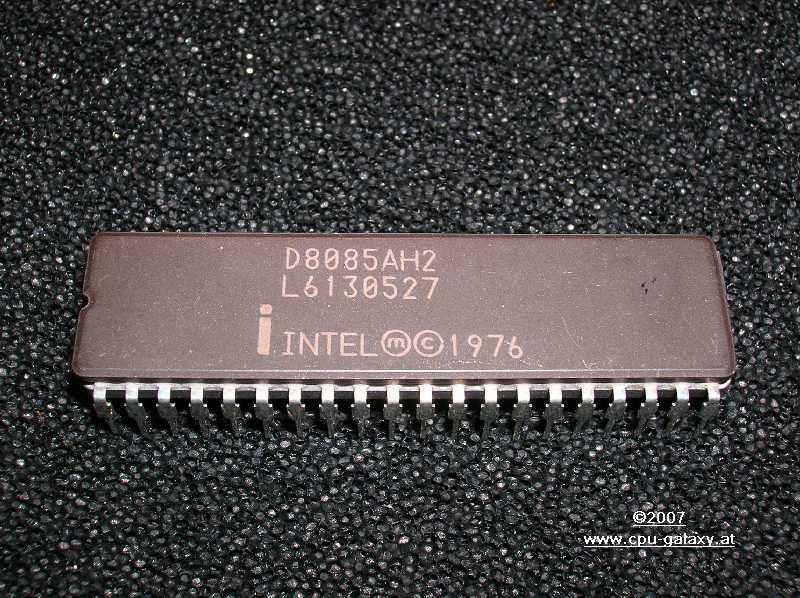

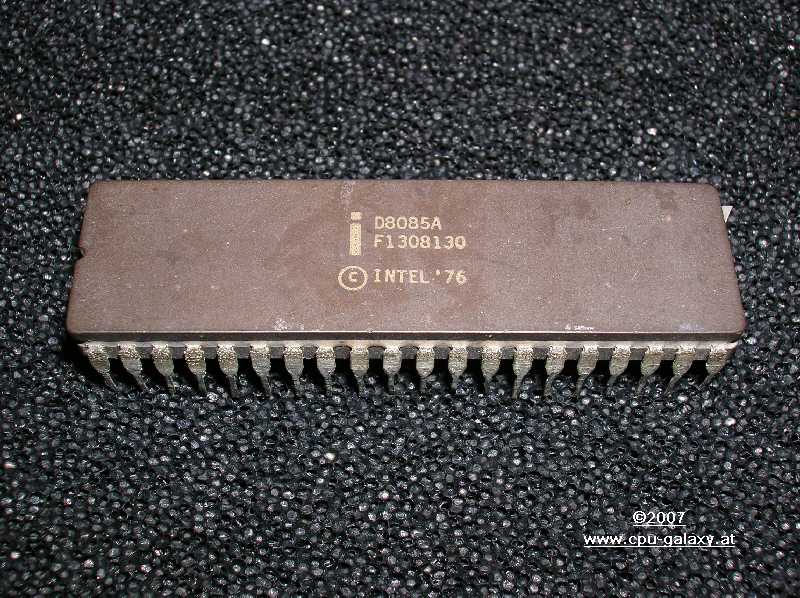

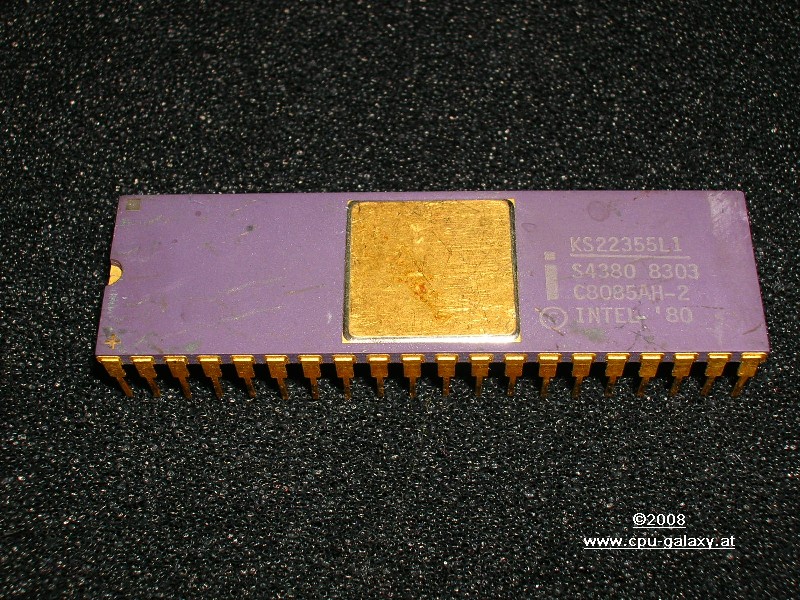

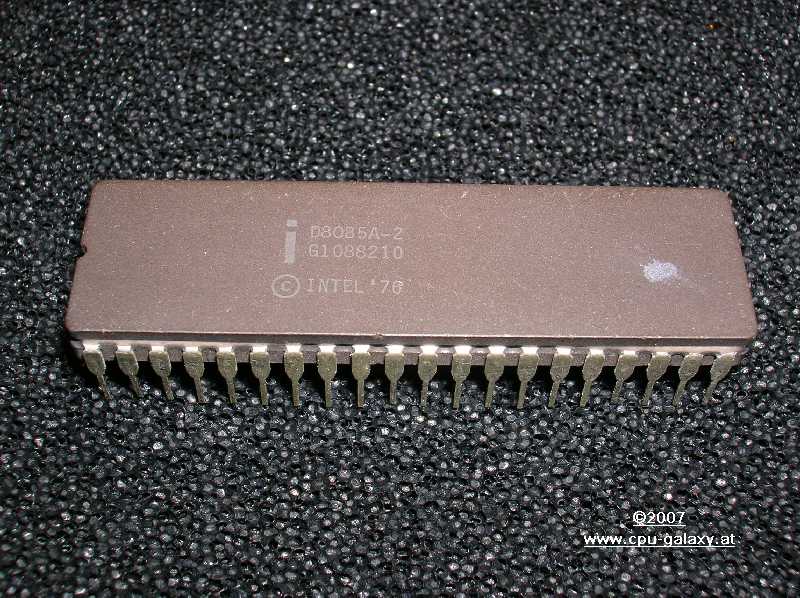

C8085AH-2 D8085A D8085A-2
Malaysia, 8303 Malaysia Malaysia, 8030

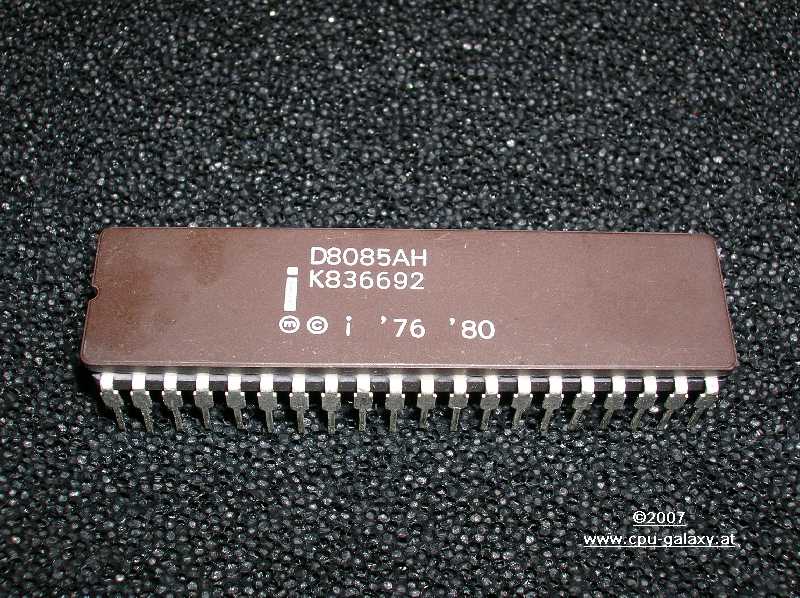

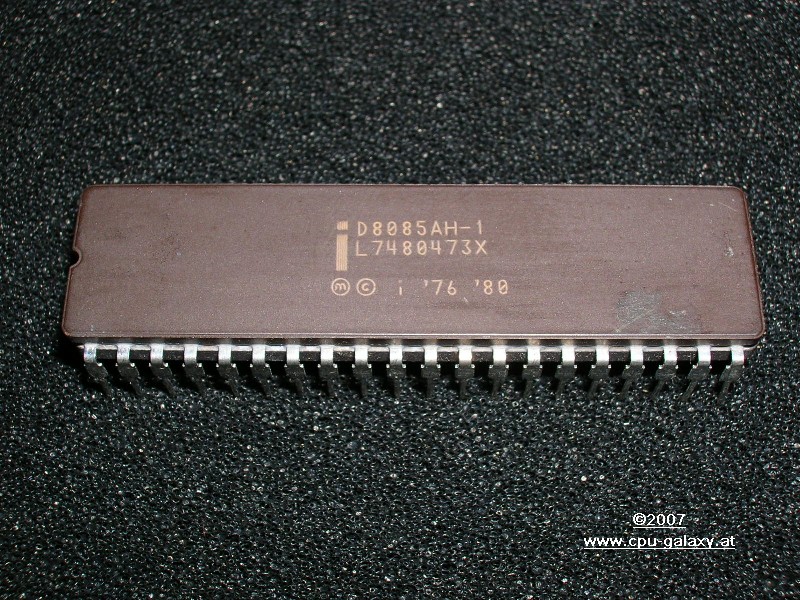

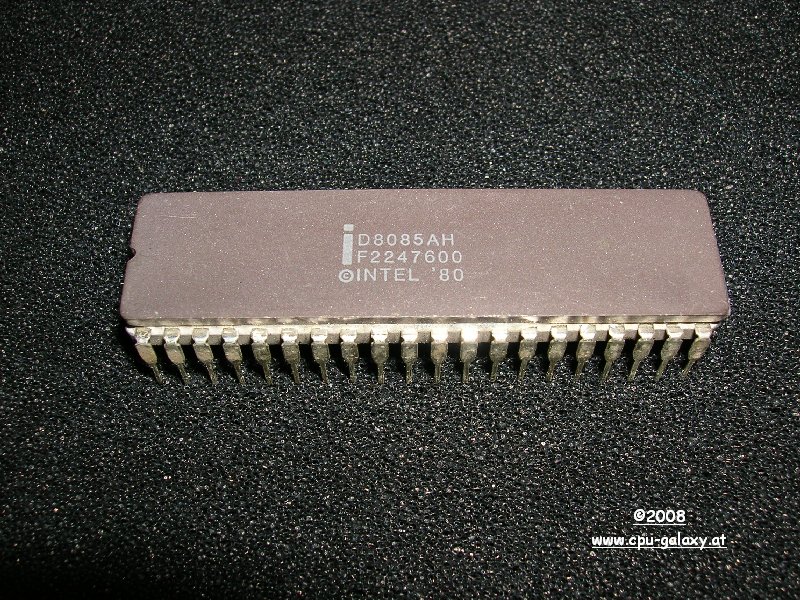

D8085AH D8085AH D8085AH-1
Korea, 8834

Philippines Malaysia

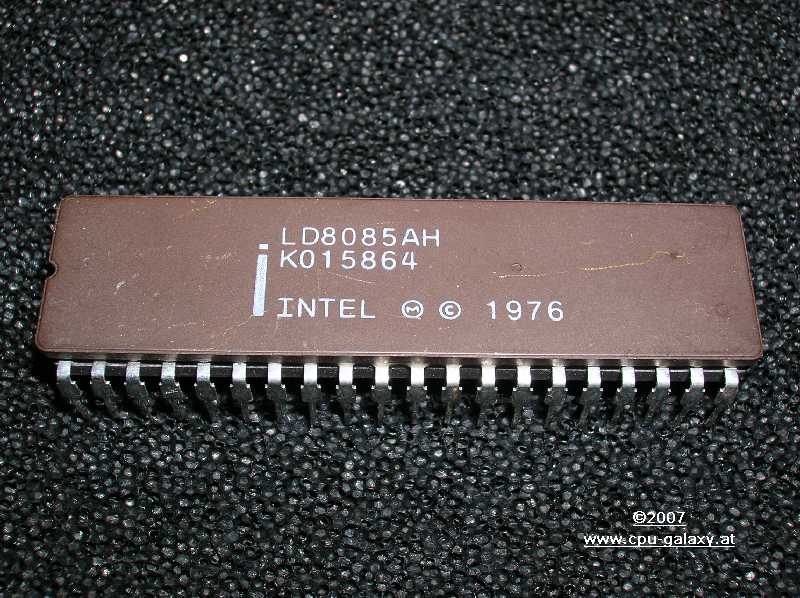

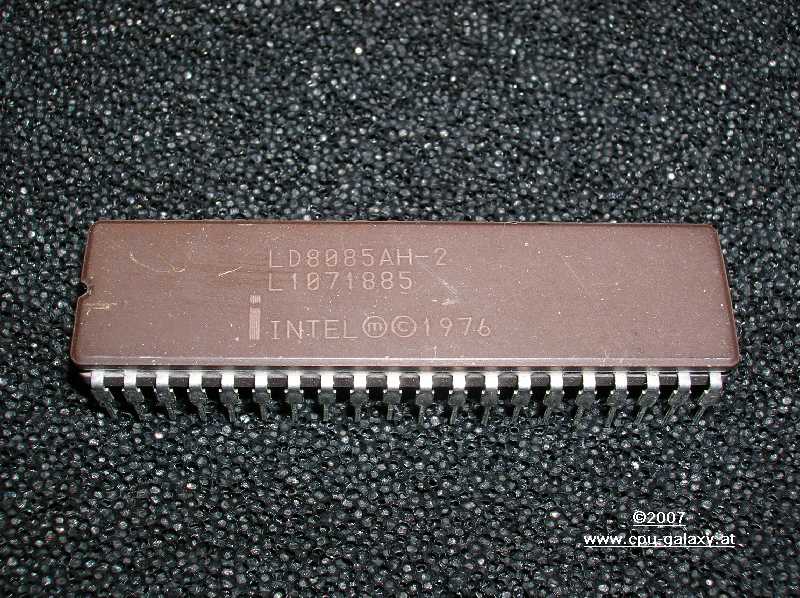

D8085AH-2 LD8085AH LD8085AH-2
Malaysia Korea Malaysia

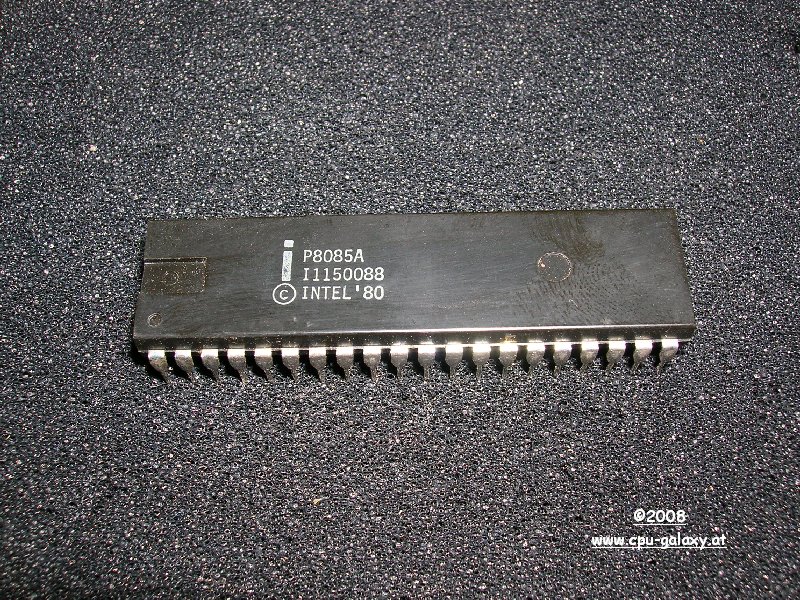

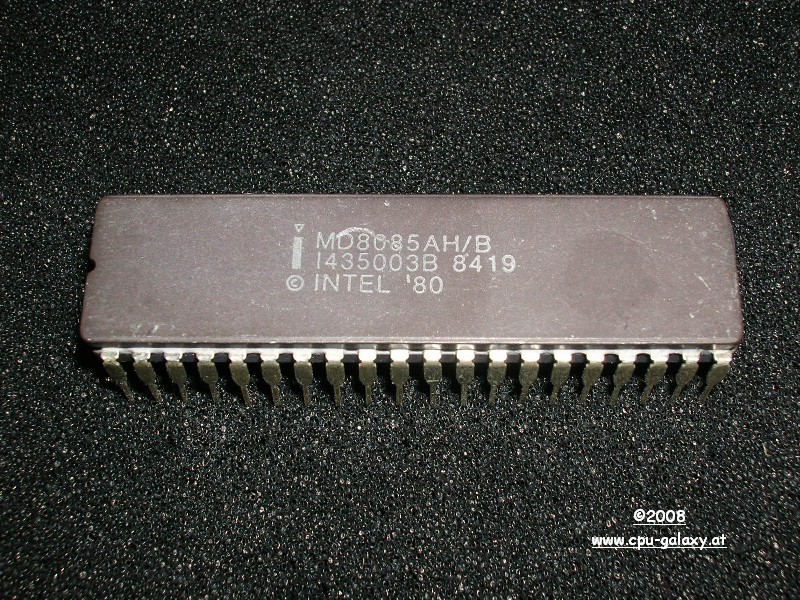

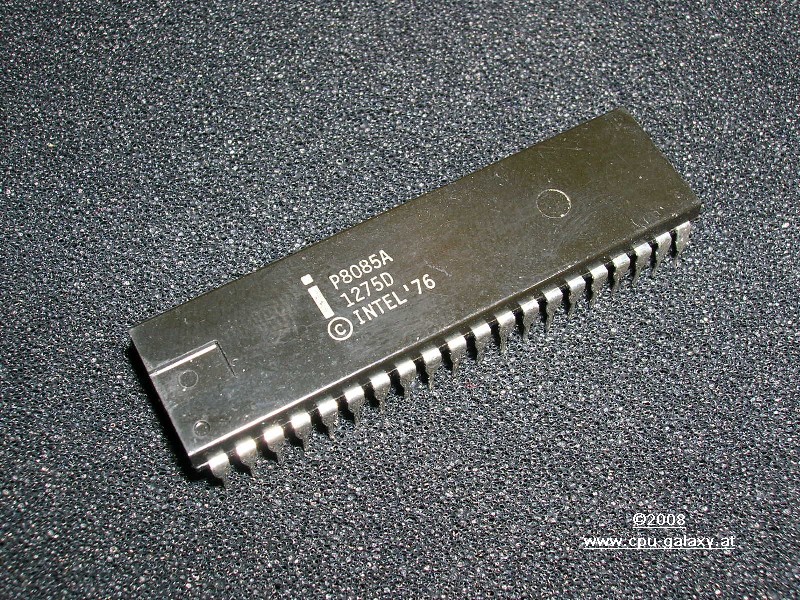

MD8085AH/B P8085A (c) 76 P8085A (c) 80
Philippines, 8418 Philippines, 7926 Philippines

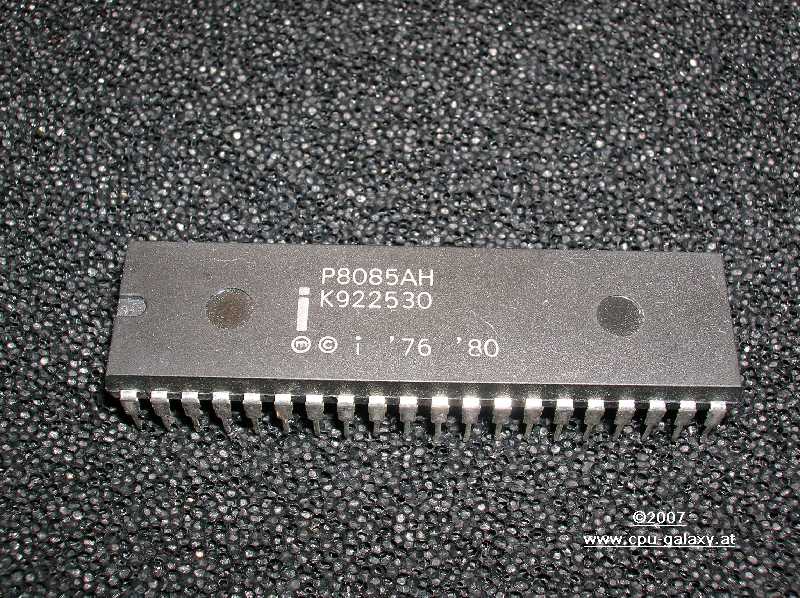

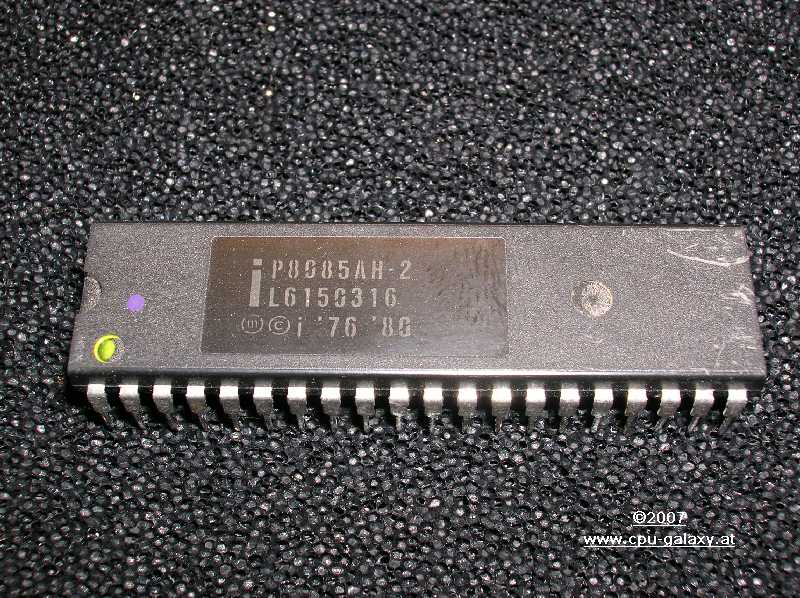

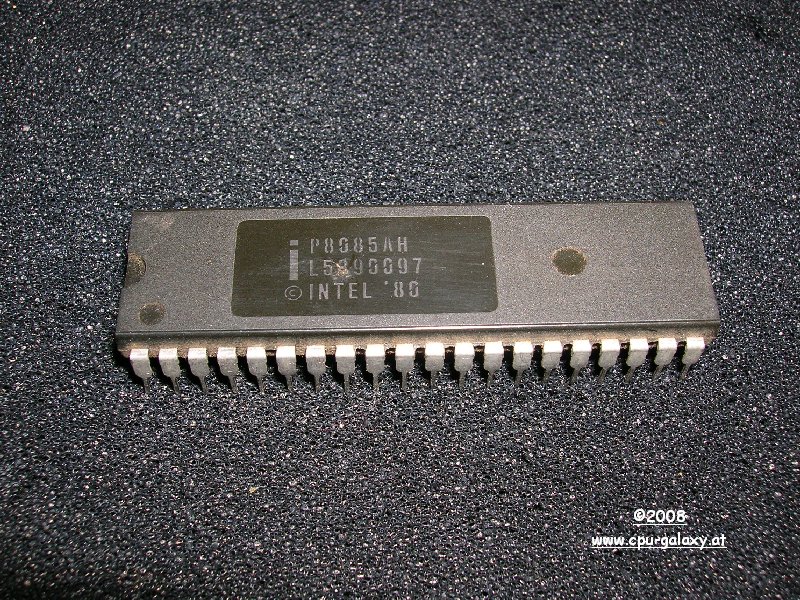

P8085AH P8085AH P8085AH-2 (c) 76,80
Malaysia, 8536 Korea, 8919 ??, 8614

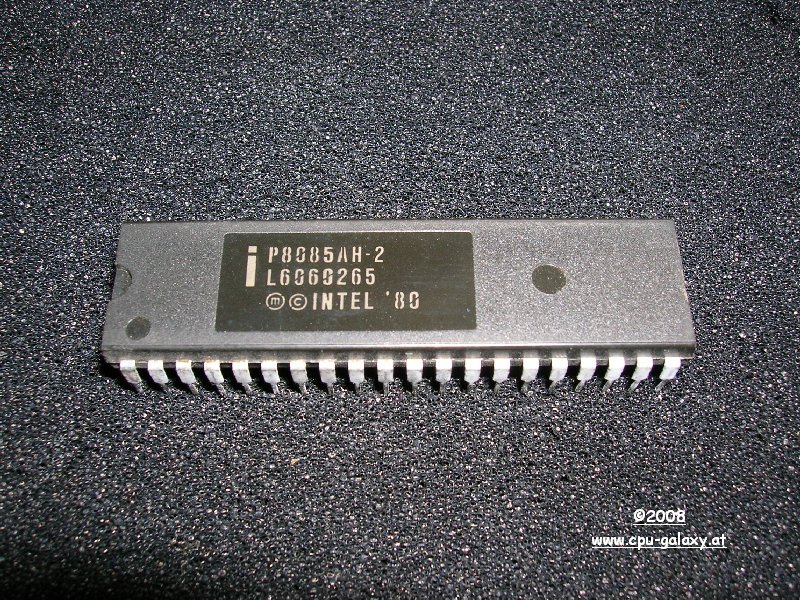

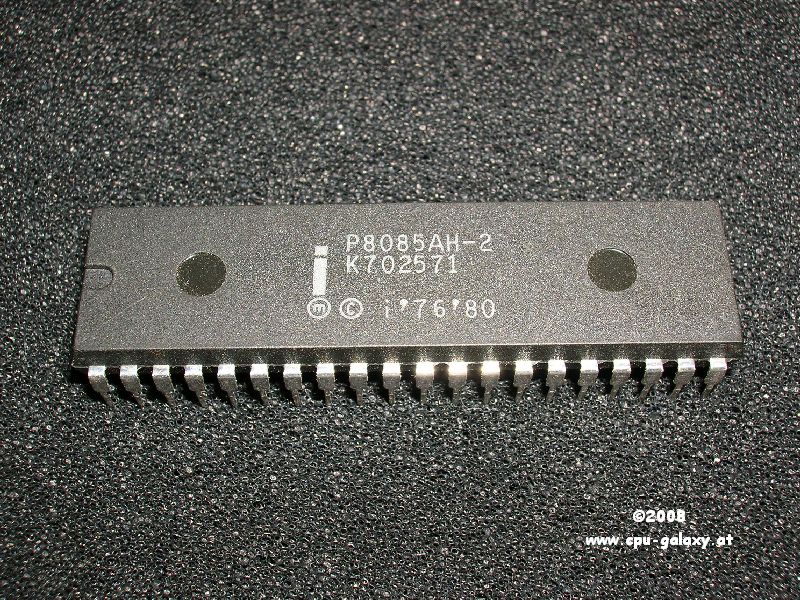

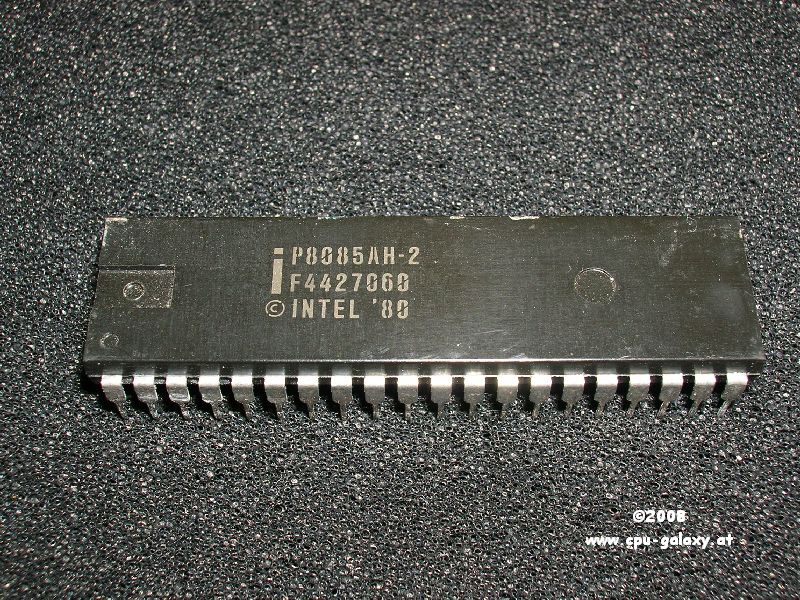

P8085AH-2 (c) 80 P8085AH-2 P8085AH-2
Philippines, 8603 Korea, 8701 Philippines, 8440

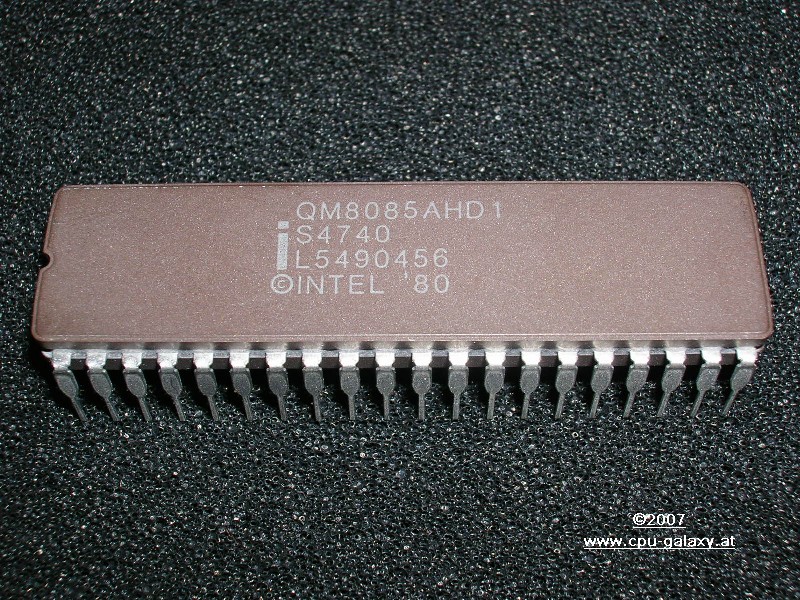

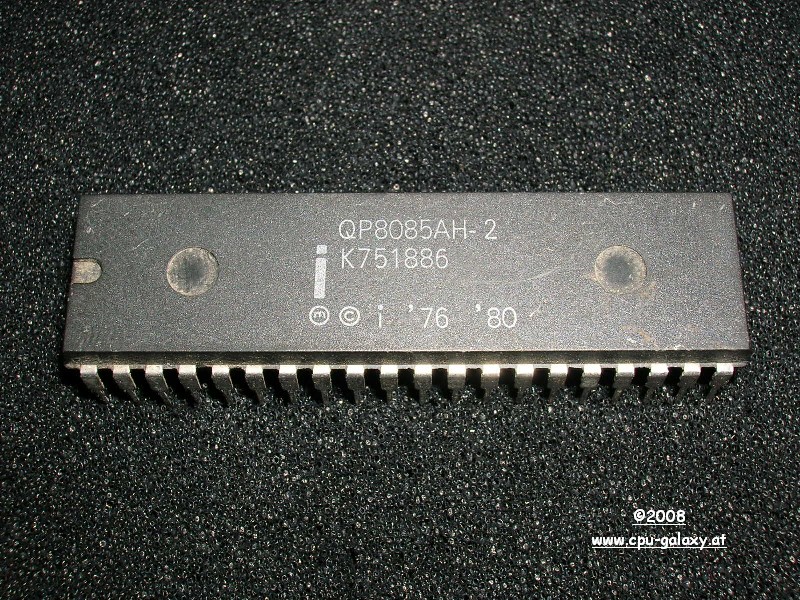

QM8085AH QM8085AHD-1 QP8085AH-2
Malaysia Malaysia, 8547 Korea, 8750
TD8085AH-2

Korea, 8928


More Info and Pictures Intel 8085

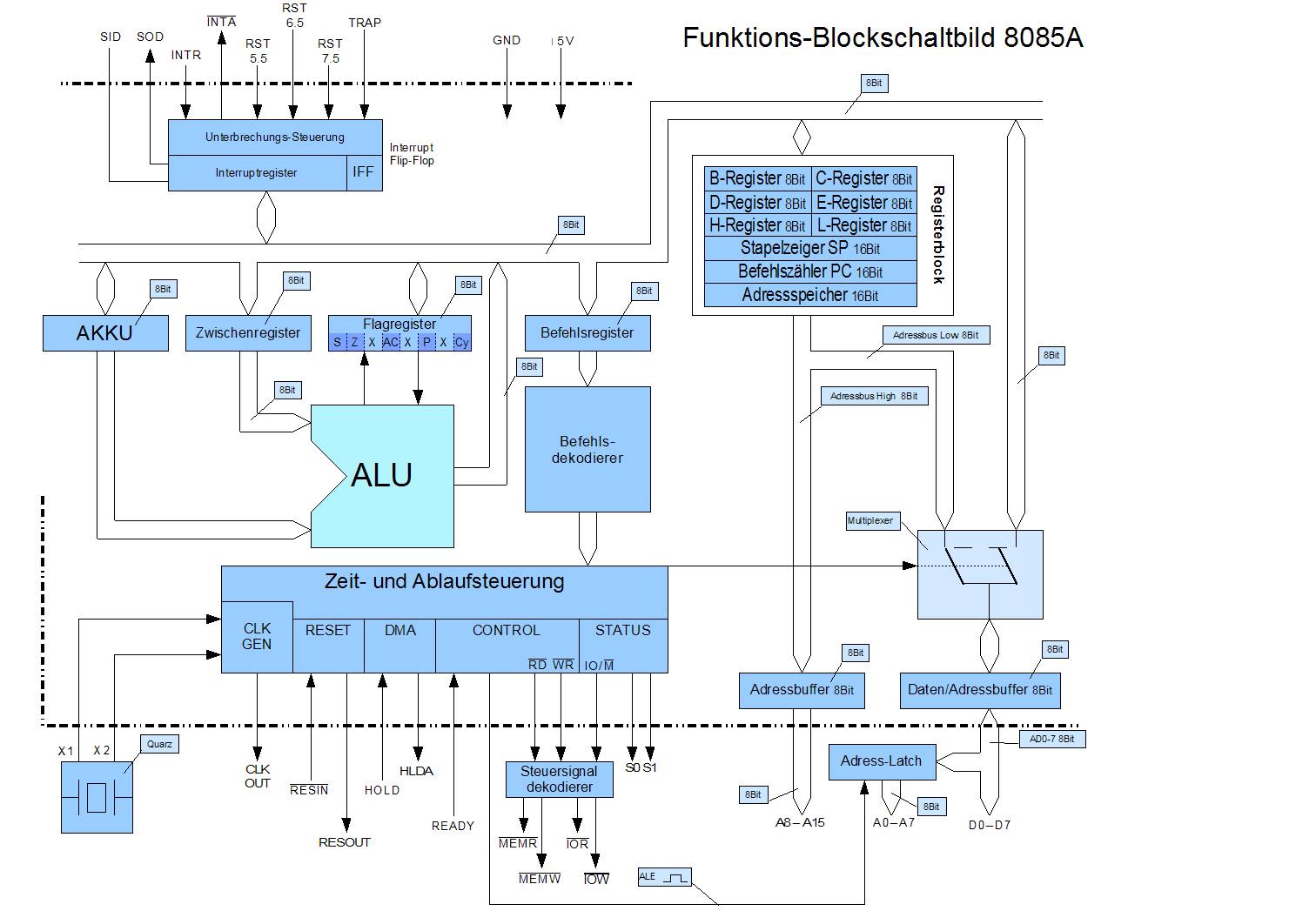

Intel 8085 schematic

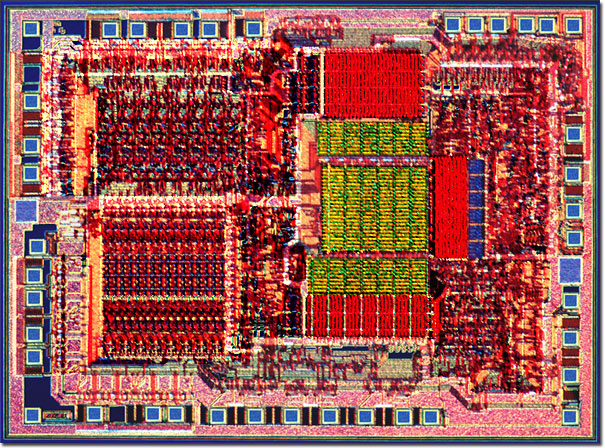

Intel 8085 Core

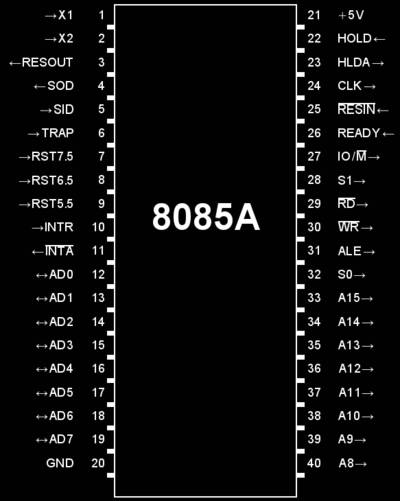

Intel 8085 pin out
