Technical Specification



Download Datasheet 1702
Introduction date:
Technology:
Category:
Memory:
Max. access time:
Nom. Supp:
Program Voltage:

History:


1972
P-channel silicon gate MOS technology
Static
Erasable Programmable Read Only Memory
256 x 8-bit
750 ns
+5V and -9V
up to -48V

The 8702, 4702 & 1702 share the same core. This EPROM's were produced up to the middle of the 80īs.
The 8702 was a member of the MCS8/80 family.




  B8702A-4 C8702A

  Malaysia, 7631 Malaysia

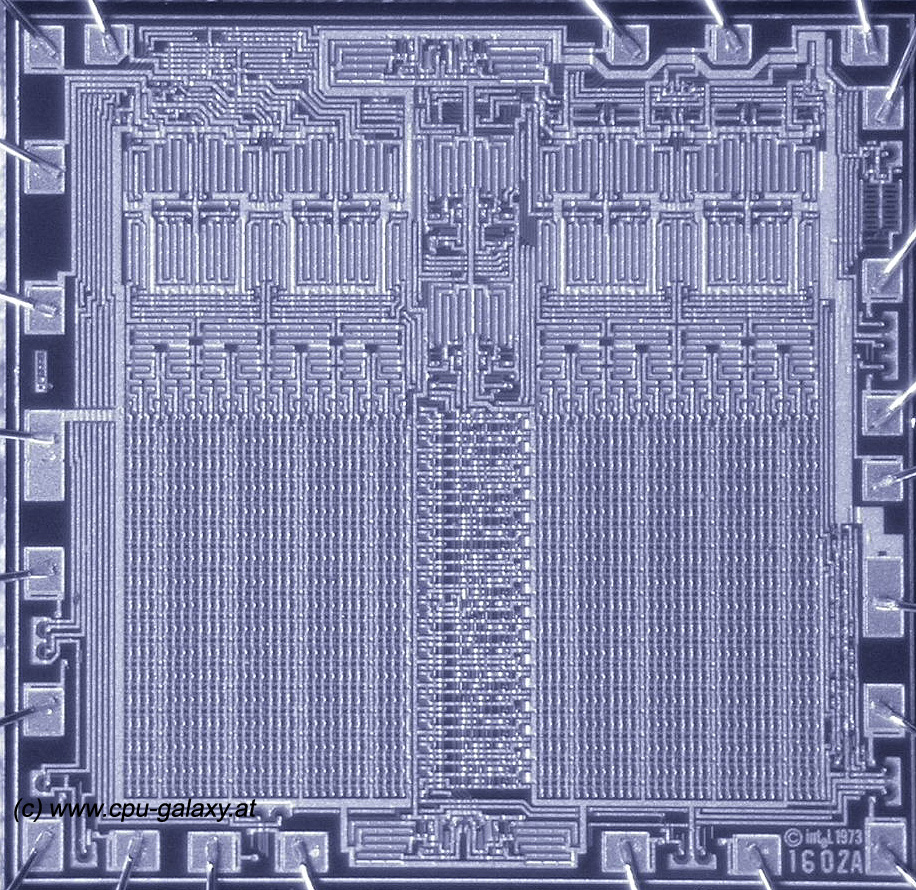

4702 Core marked
1602
 (c) 2009
naked1300
