In this section you can see
some unfinished chips and semiconductors. From many I don't know their
ancestry or from which manufacturer they are, but this stuff is very nice to look at! If anyone knows details of some chips and items, so please let us know, we all would be very thankful for any information's! The history of chips is very interesting but a relatively new invention. The idea wasn't conceived until the mid 1950's by a radar scientist working for the Royal Radar establishment of the British Ministry of Defence. It is amazing to think that due to a tiny chip we now can do incredible things like search the internet for almost any information, play games such as online bingo and read a whole novel off a computer screen. With all technological things it is always being developed, that is why I enjoy my collection of vintage chips to appreciate where it has come from, as things are always rapidly changing. I am really proud of my rare collection and I hope that you too will get some pleasure from it. Hopefully, if you didn't previously know a lot about chips you will learn something here too. |
|
|
|||
 |
 |
 |
 |
|

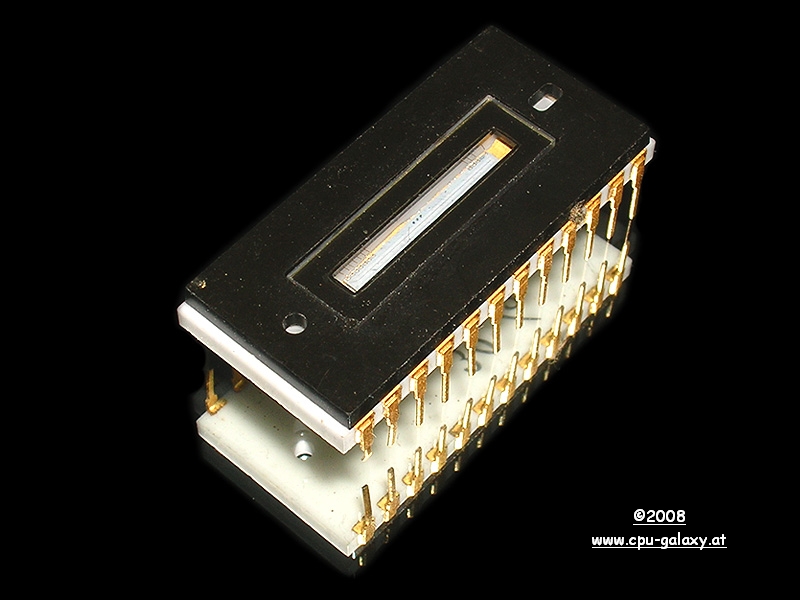

Kind of

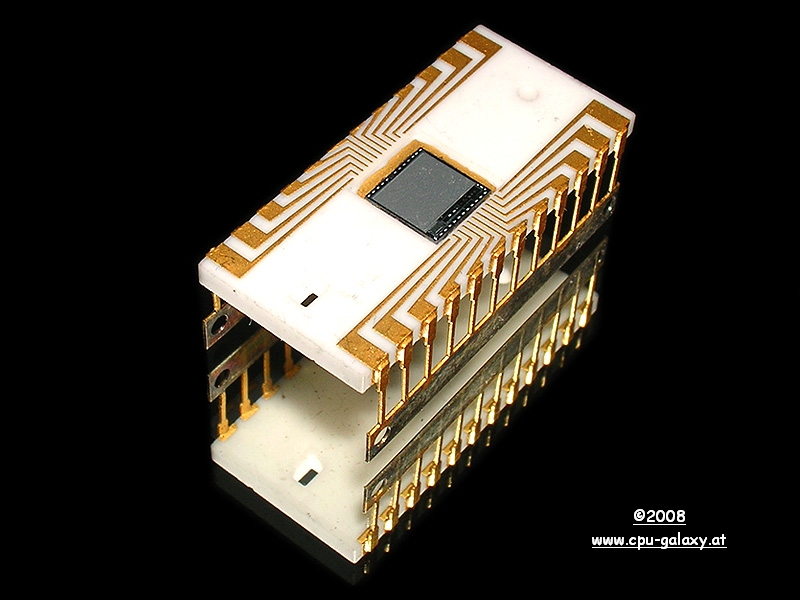

early CCD Sensor. Unbonded, with core. No manufacturer details on the core or on the package. |
Kind of
early CCD Sensor. Unbonded, with core. No manufacturer details on the core or on the package. |
Early kind
of CCD sensor or finger- print sensor. Unbonded No details on the core. |

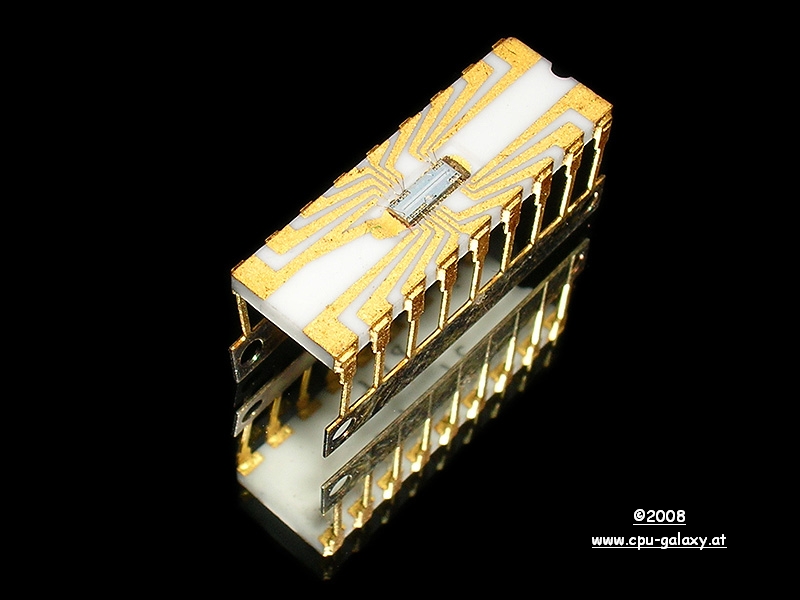

Without
core, nice white item with thick gold traces. |
|
|
|||
 |
 |
 |
 |
|
Early kind
of CCD sensor or Finger- print sensor. Unbonded No details on the core. |
Early kind
of CCD sensor or Finger- print sensor. No Manufacturer known. |
Small 18
pin chip with bonded core. Maybe also any kind of CCD Sensor. No details on the core. |
Nice small
18 pin purple ceramic with gold traces. |
|
|
|||
 |
 |
 |
 |

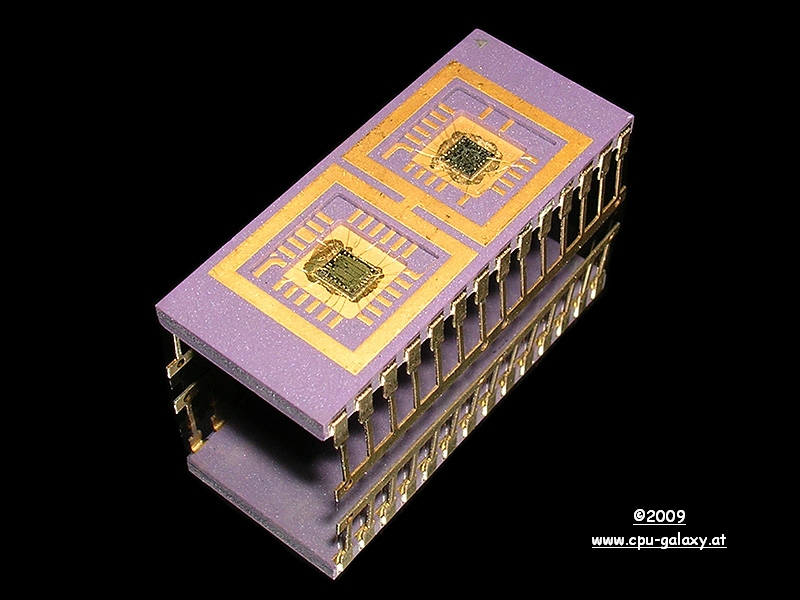

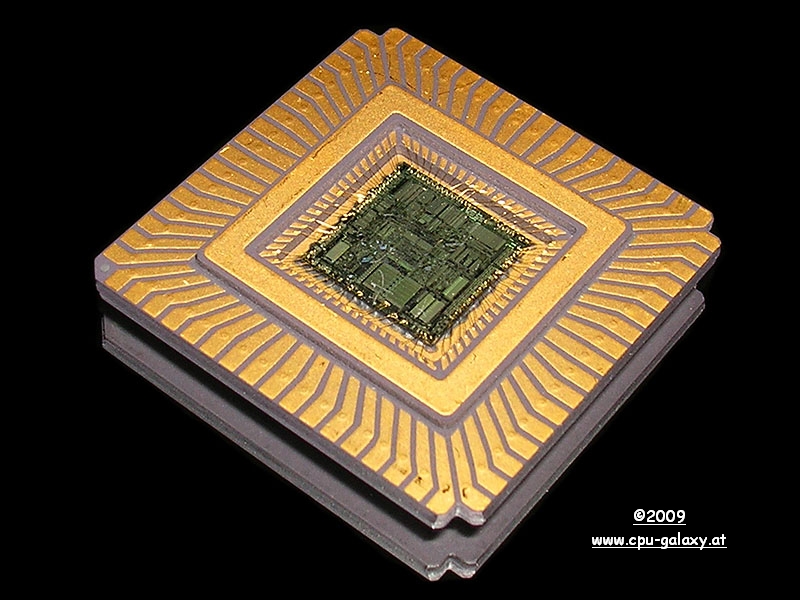

| unknown 2 Core unfinished chip | unfinished SAB80286 processor |

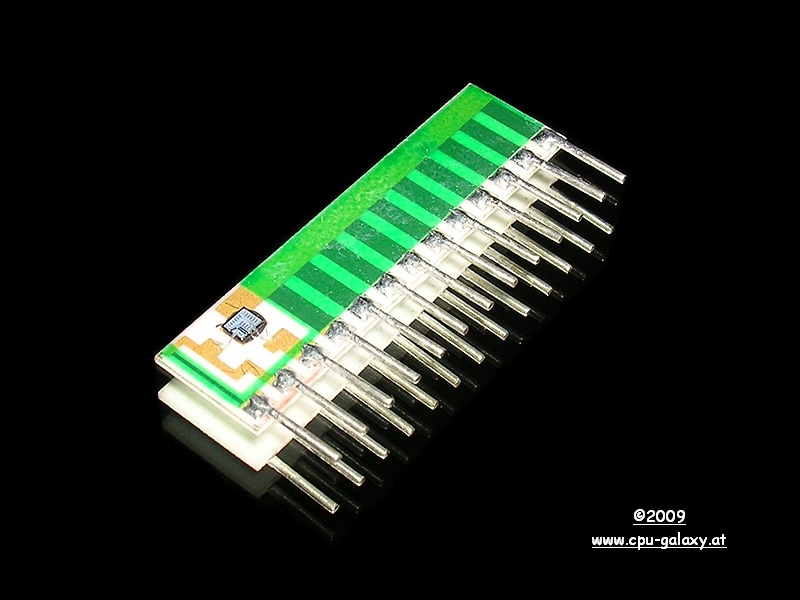

unknown,
unfinished something. white ceramic with small die on it |
unknown,
unfinished 16pin ic?s with cores on it. |
|
|
|||
 |
 |
 |
 |
|

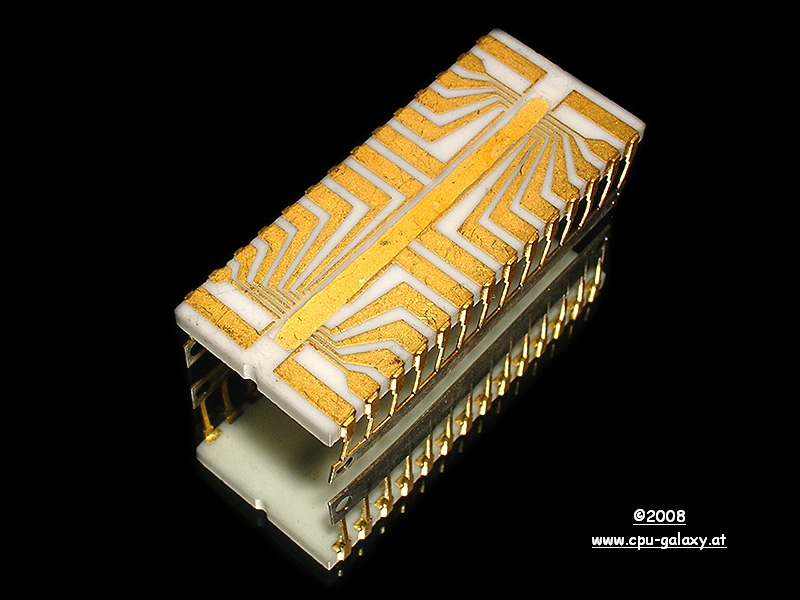

unfinished
28 pin ceramic package with gold pins |
unfinished
28 pin ceramic package with gold pins |

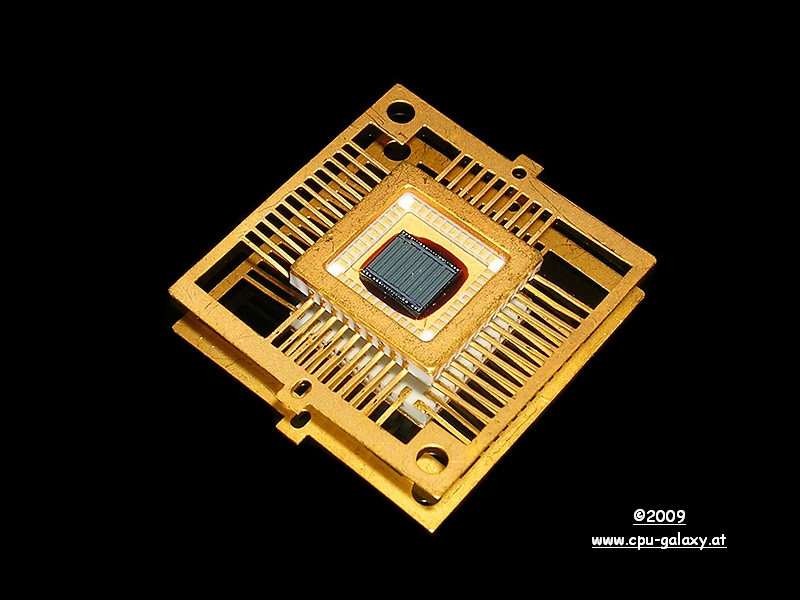

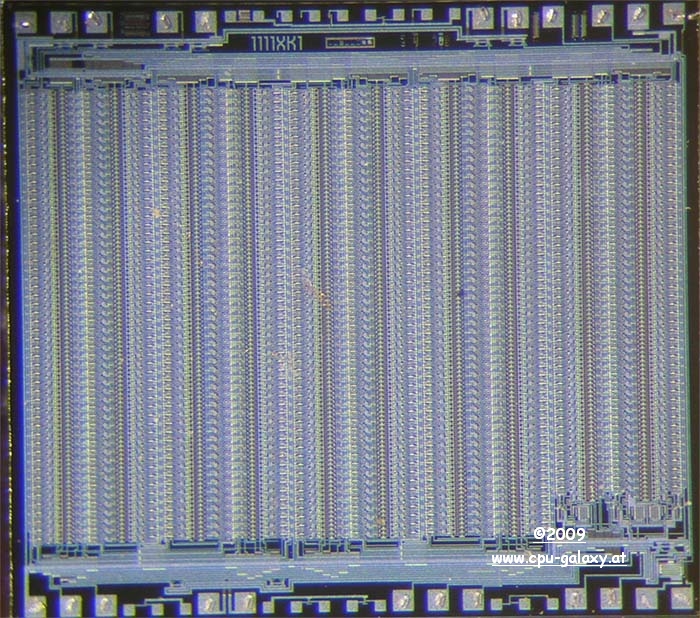

unfinished
memory in gold frame. click HERE for a closer picture of the core. |

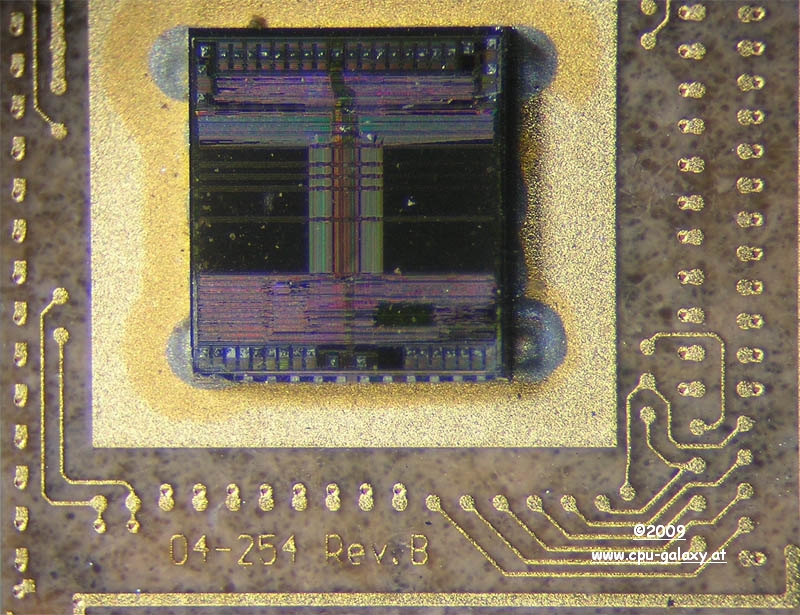

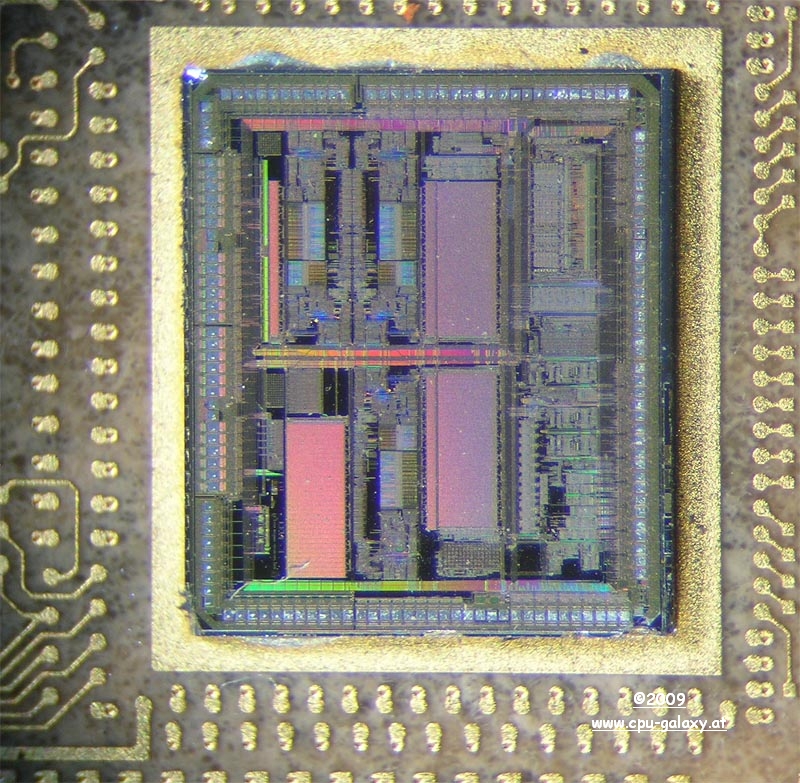

unknown,
unfinished dual core chip. No details found. closer pictures: pic1, pic2 |
|
|
|||
 |
 |
 |
 |
|
unfinished
16pin ic?s without cores |
unfinished
diodes with gold legs. |

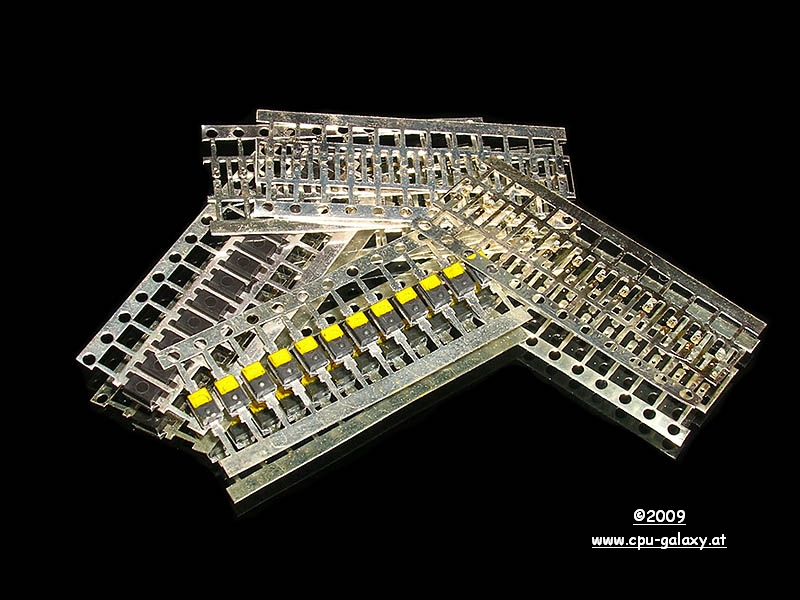

unfinished
diodes with silver legs. |

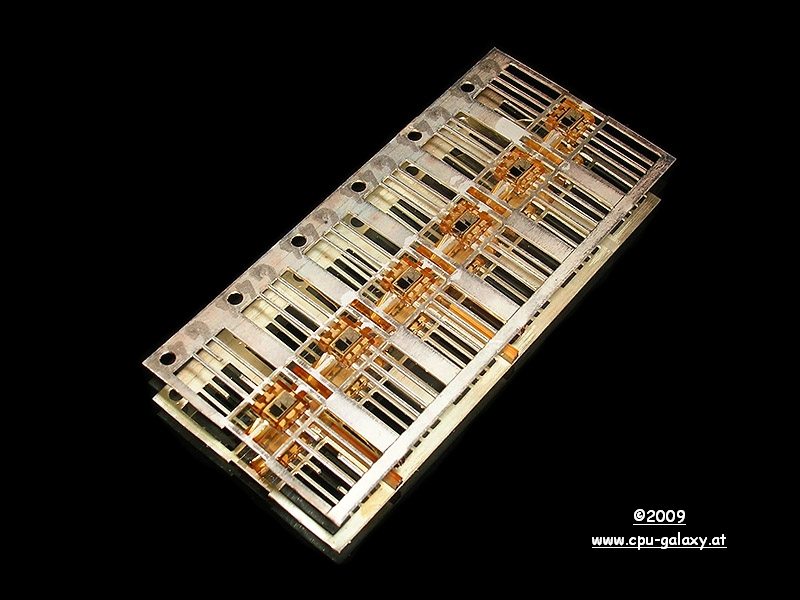

unknown,
unfinished kind of opto-ic. |
|
|
|||
 |
 |
 |
 |
|

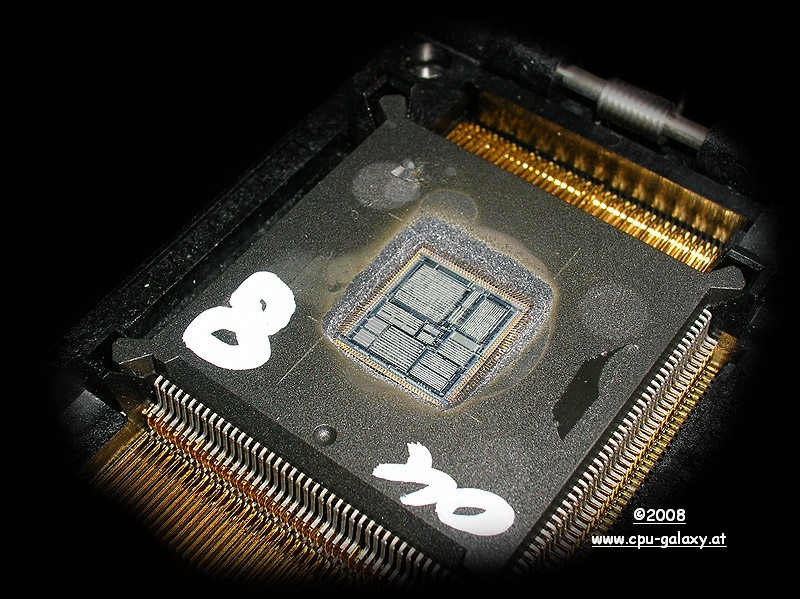

Test and
measuring socket with etched plastic chip to uncover the die core. |
Uncovered
die core. This is a logic device from Siemens. |

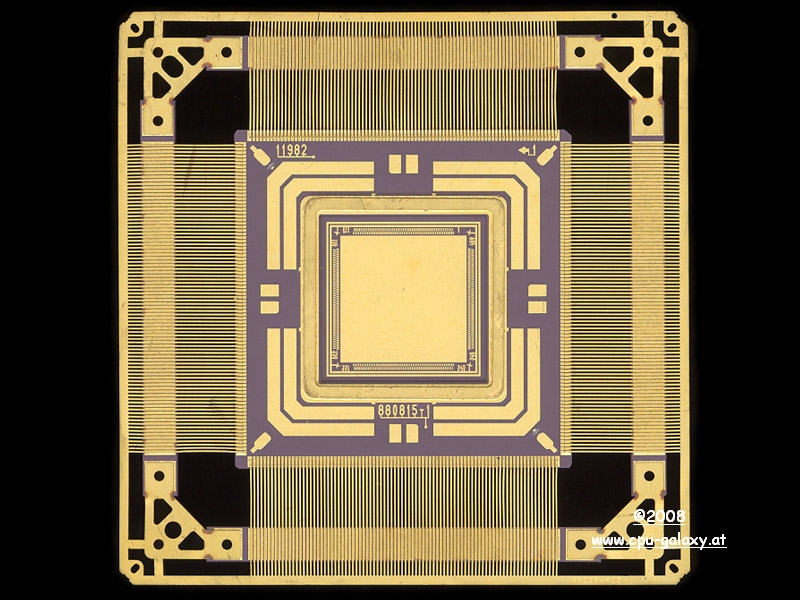

Very heavy
and nice unready chip wired in a gold/ceramic tray without die. |
....and the bottom... |
|
|
|||
 |
 |
 |
|
|
Unready
hybrid chip from Kyocera. This chip is a part of a solar cell controller. Very nice item.... |
.... and the bottom. | unready ceramic lcc package. | |
|
|
|||
 |
 |
 |
 |

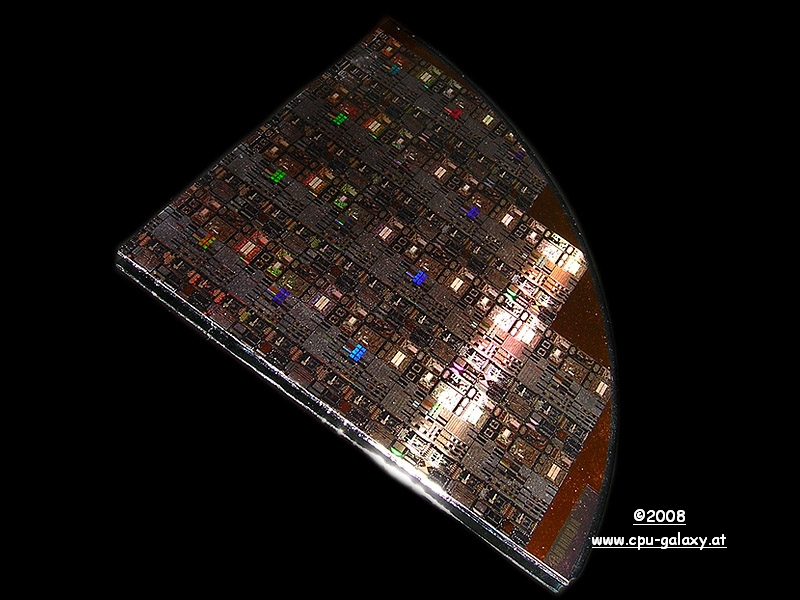

| A quarter of a Infineon wafer. |

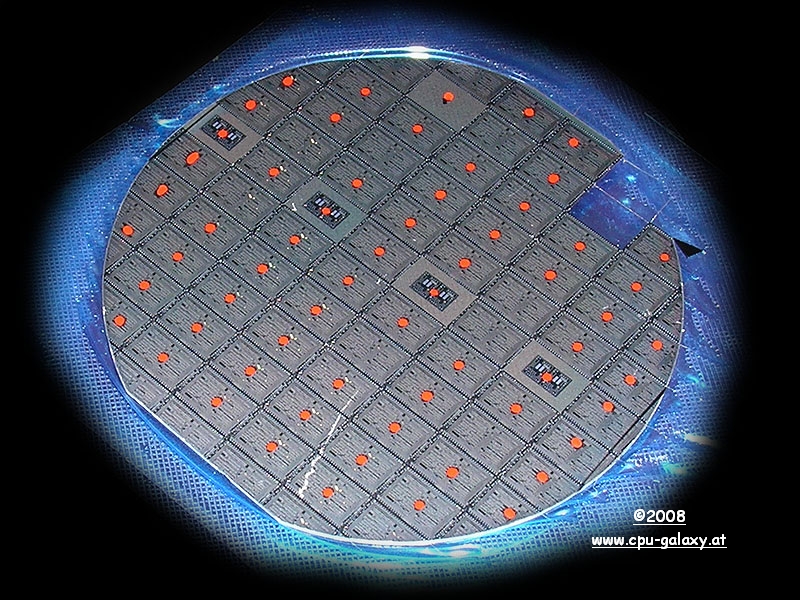

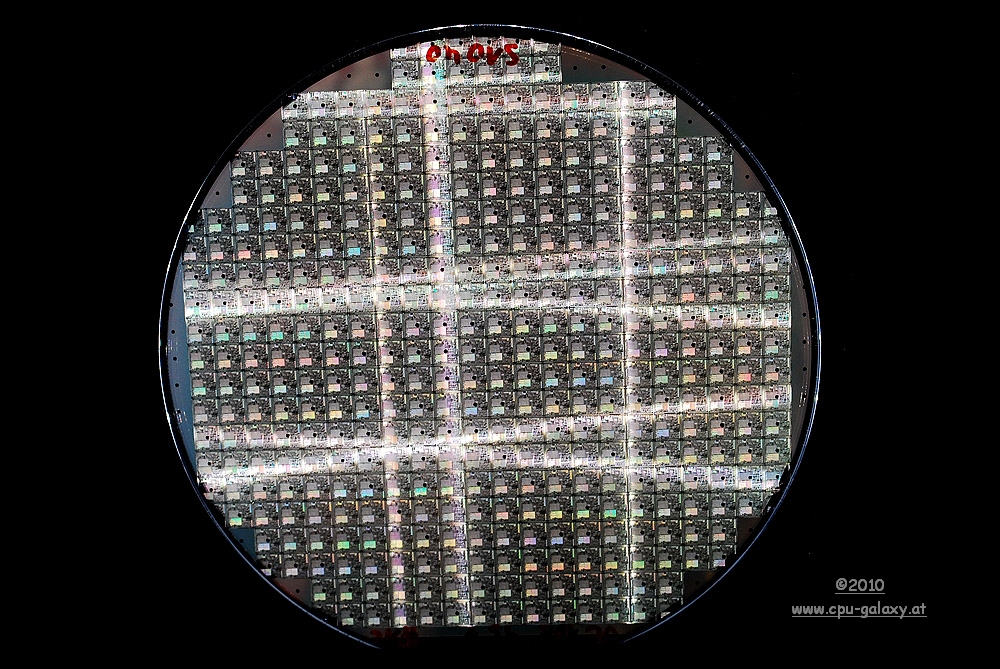

2" wafer
with structure and cut on tape. click HERE for a closer picture of a core |

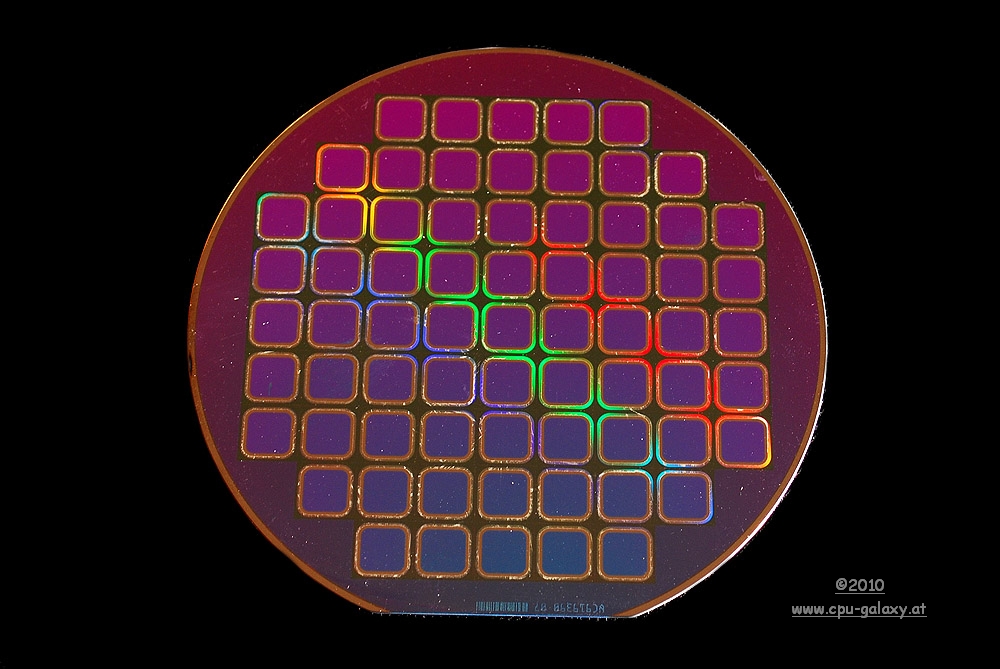

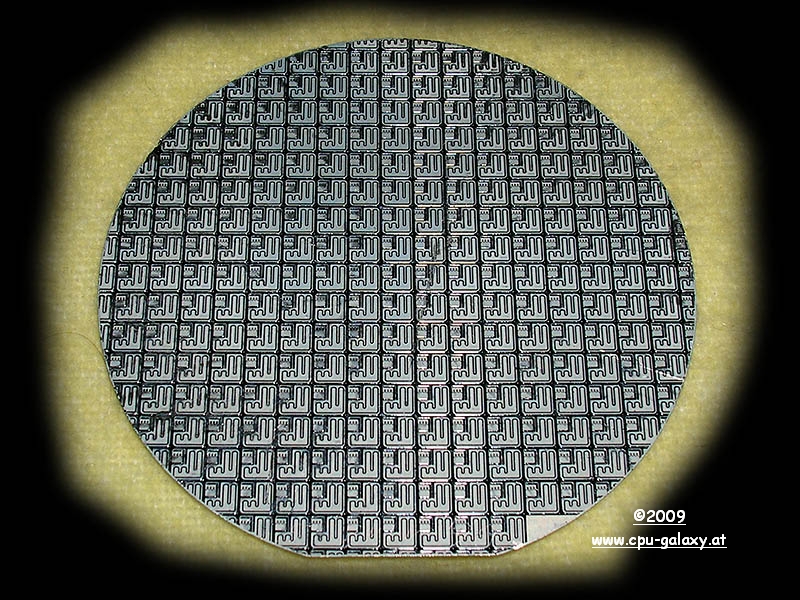

2" wafer
with power mosfet dies Manufacturer: Siemens |

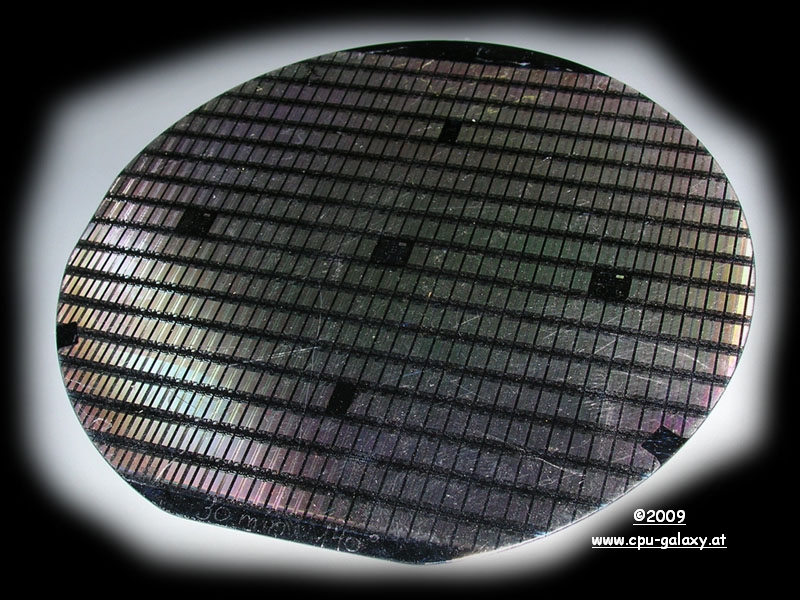

5" wafer
with EPROM cores Manufacturer: Siemens |
|
|
|||
 |
 |
 |
 |

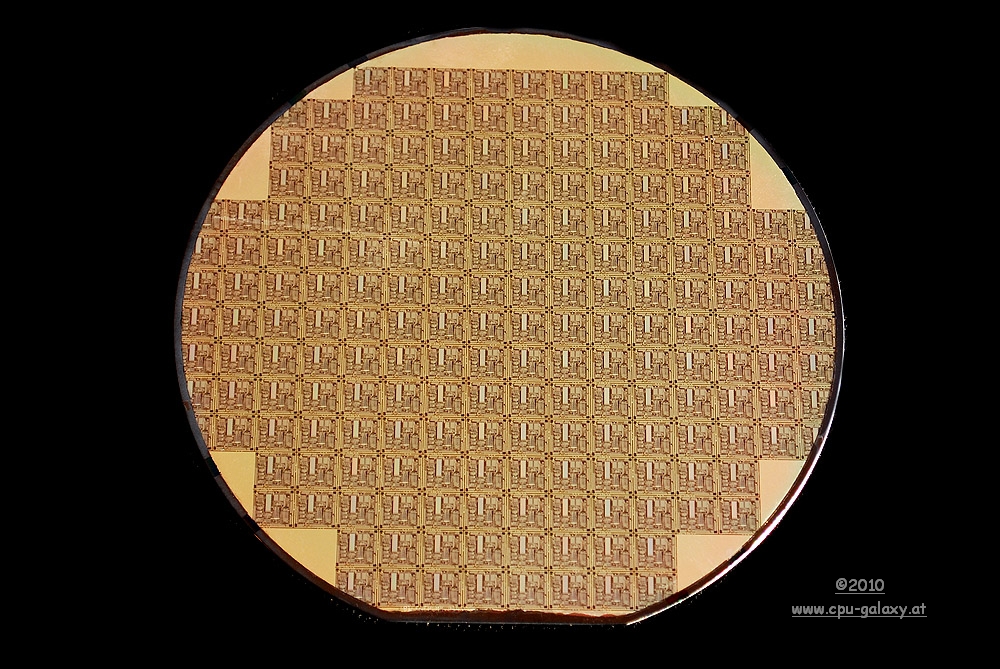

| Infineon wafer with IGBT dies. | unknown Infineon wafer | Infineon wafer with 8051 die cores. | interesting unready Infineon wafer. |
|
|
|||
 |
 |
 |
 |
| Infineon wafer with memory dies. |
interesting unready wafer |
unknown Infineon wafer | unknown Infineon wafer |
|
|
|||
 |
