Technical Specification


Introduction date:
Technology:
Category:
Voltage:
Temperature range:
Memory:
Ports:

Timer:

History:


1977
MOS
Static MOS RAM with I/O Ports and Timer
5 V
0 - 70°C
2048 Bit
1 programmable 6-Bit I/O Port
2 programmable 8-Bit I/O Ports
programmable 14-Bit Binary Counter

compatible with 8085A and 8088 CPU

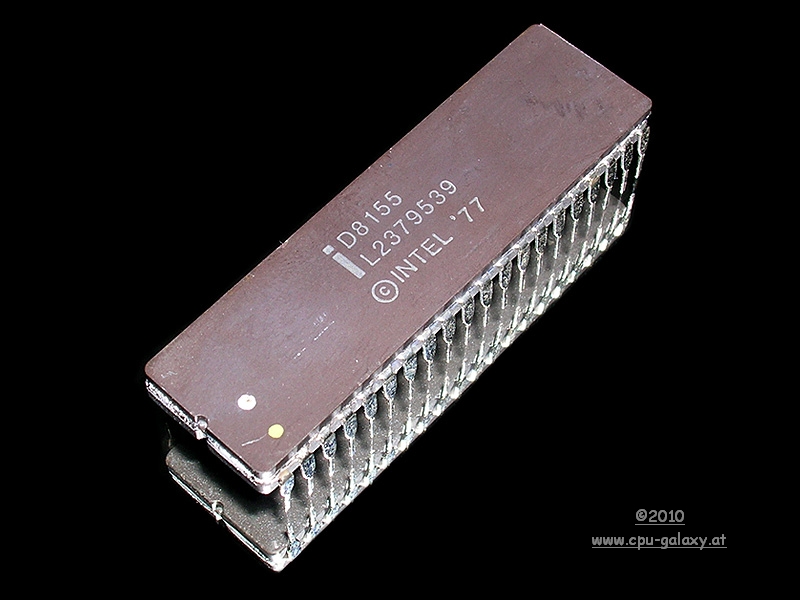

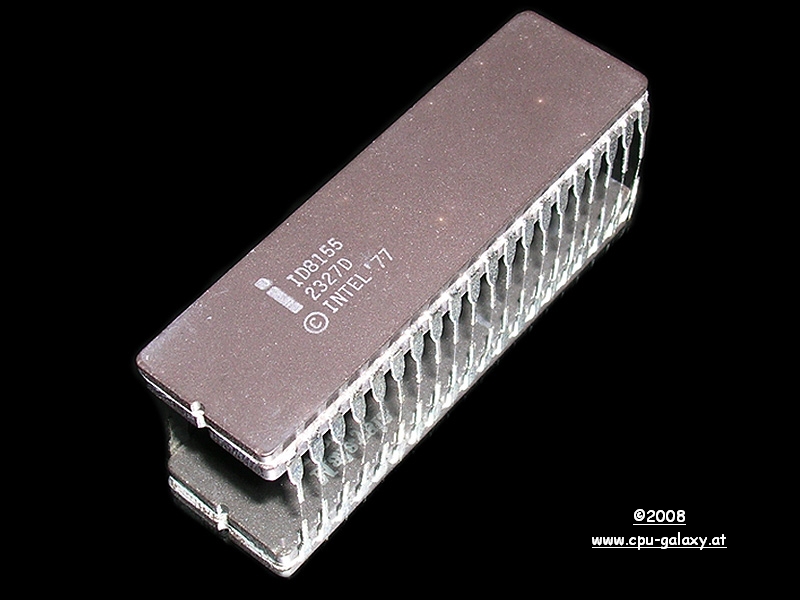

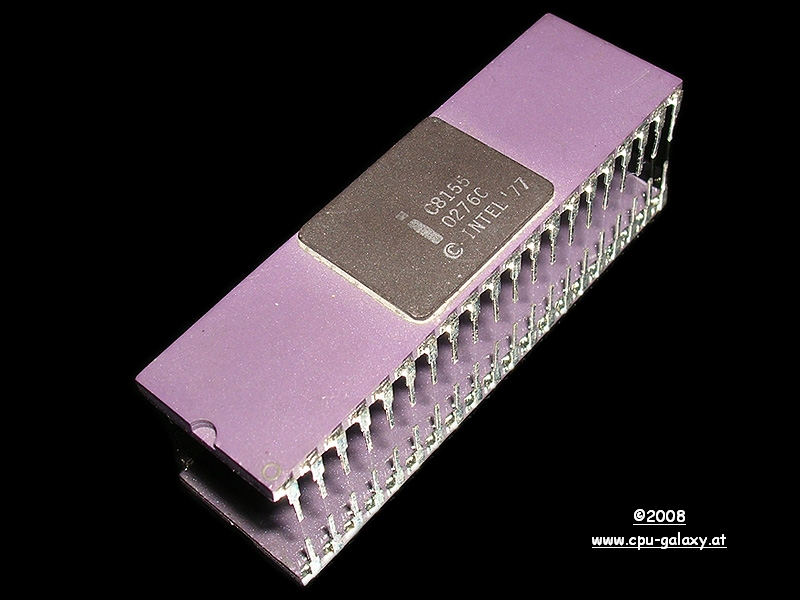

C8155 D8155 ID8155
Malaysia, 7830

Malaysia, 8006 Malaysia, 7935

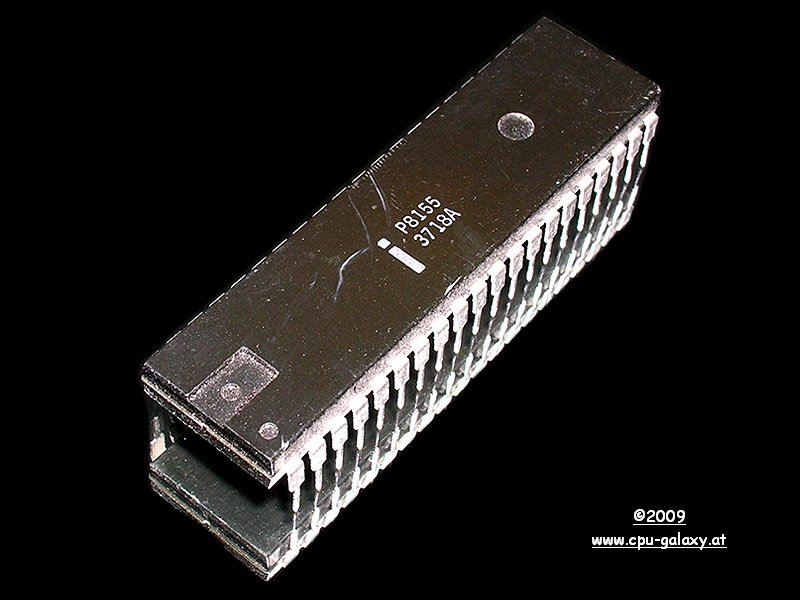

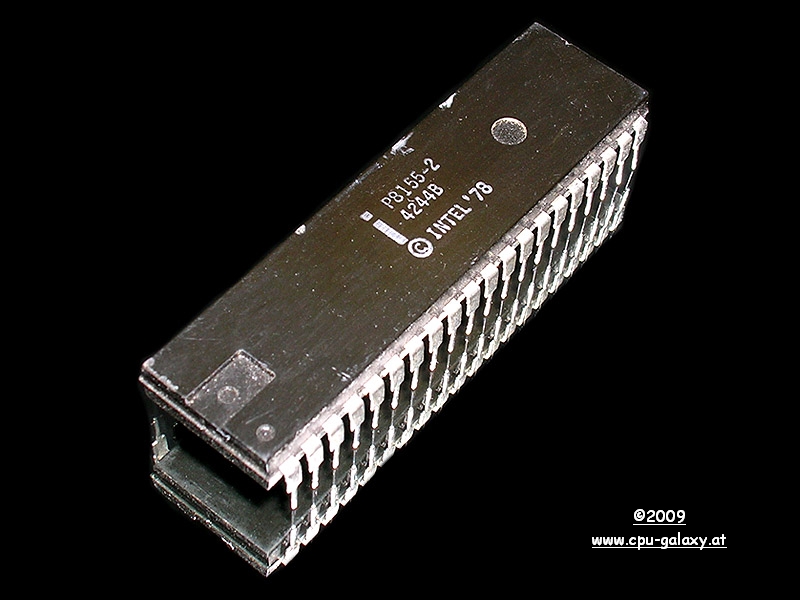

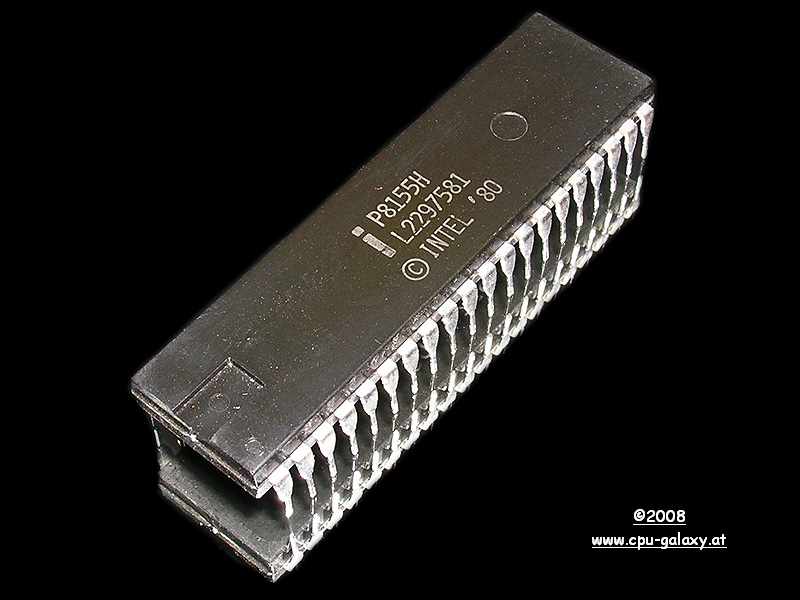

P8155 P8155-2 P8155H
Malaysia, 7716 Malaysia, 7816 Malaysia, 8229


Datasheet
8155.pdf 0,6MB

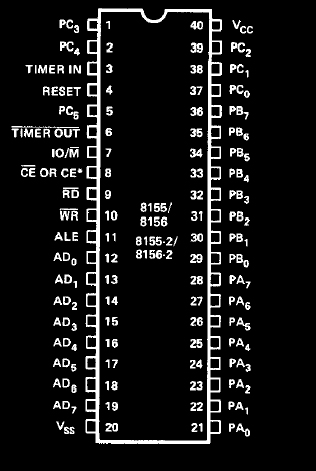

Pin out 8155
