Technical Specification



Download Datasheet 1702
Introduction date:
Technology:
Category:
Memory:
Max. access time:
Nom. Supp:
Program Voltage:

History:


1972
P-channel silicon gate MOS technology
Static
Erasable Programmable Read Only Memory
256 x 8-bit
750 ns
+5V and -9V
up to -48V

The 1702 was Intel's first official EPROM. The 1702, 4702 & 8702 share the same core. This EPROM's were produced up to the middle of the 80īs.

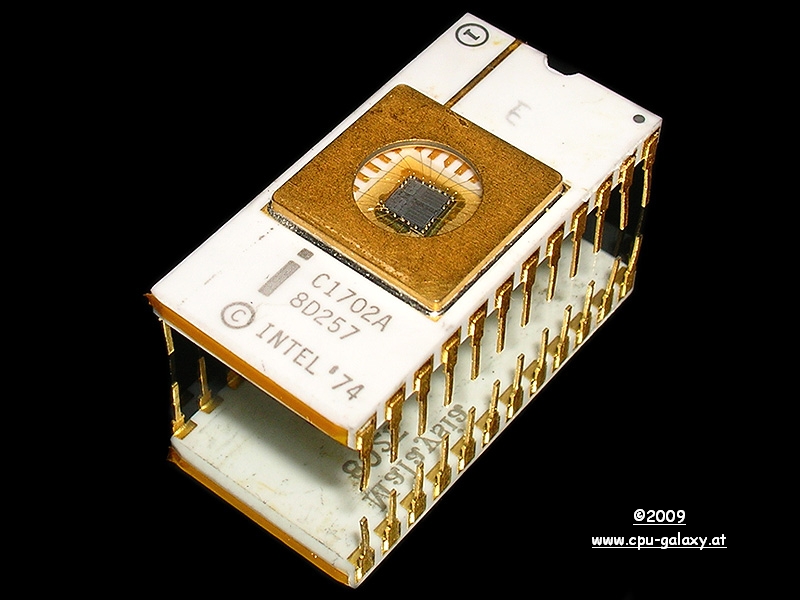

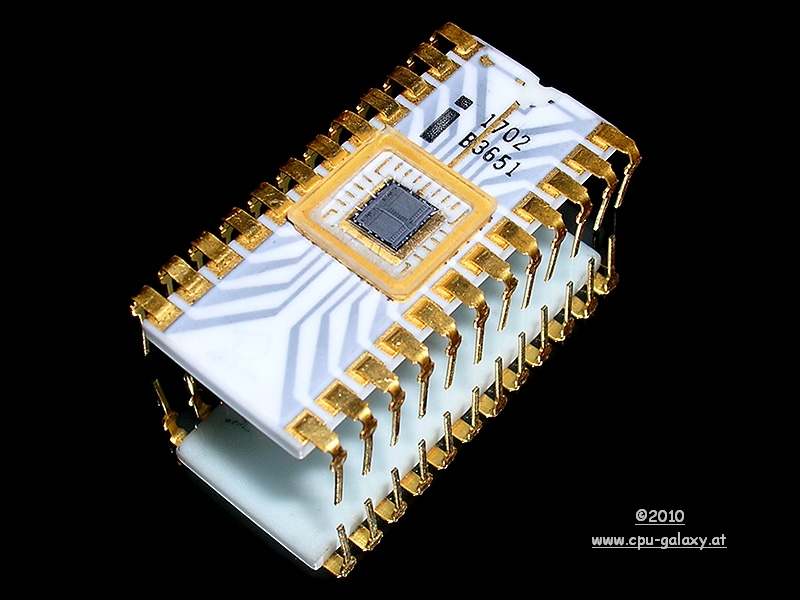

1702 C1702A C1702A

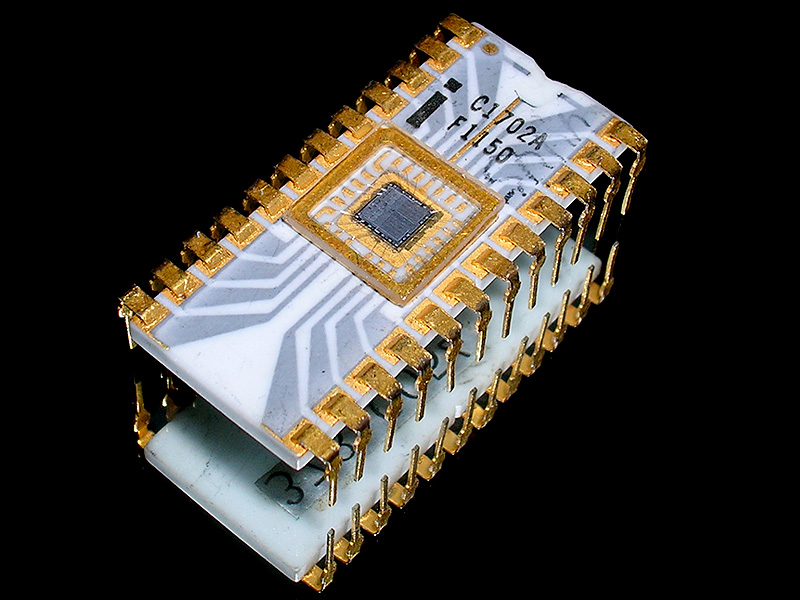

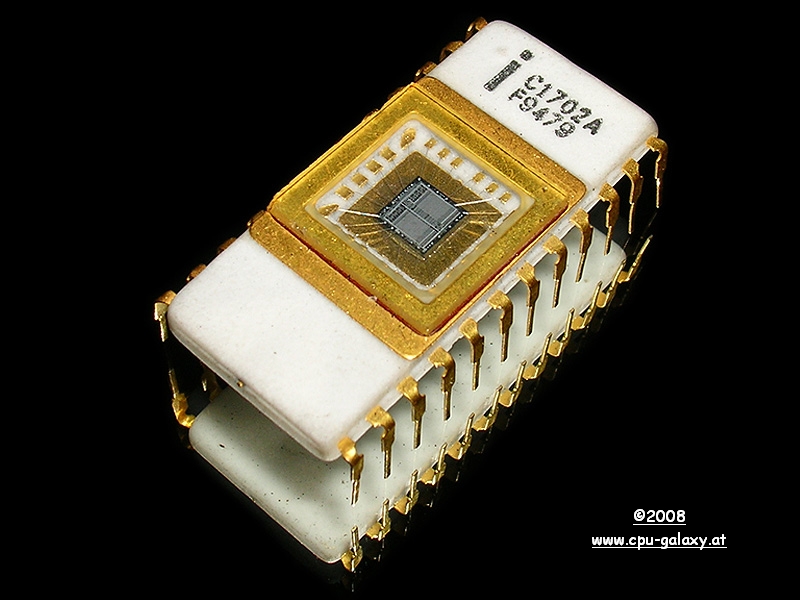

grey traces, without C prefix grey traces round ceramic package, core=National S.

C1702A C1702A C1702A

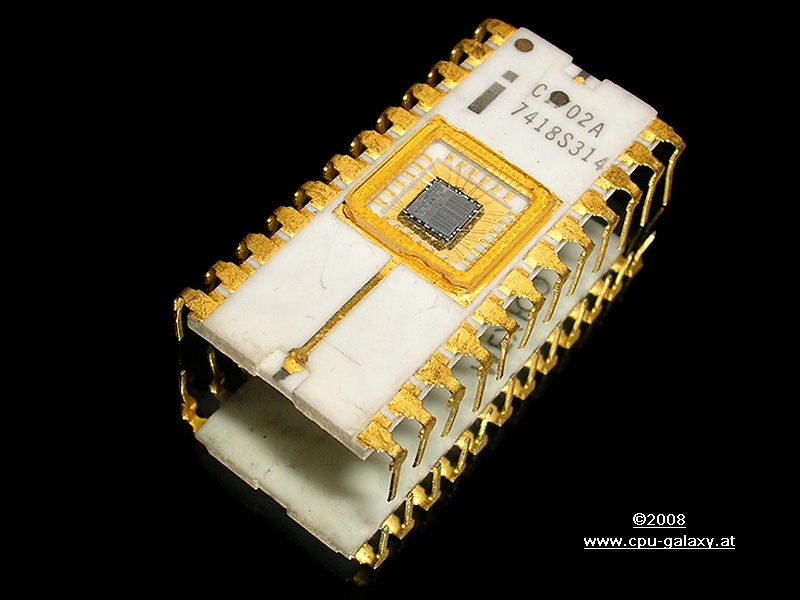

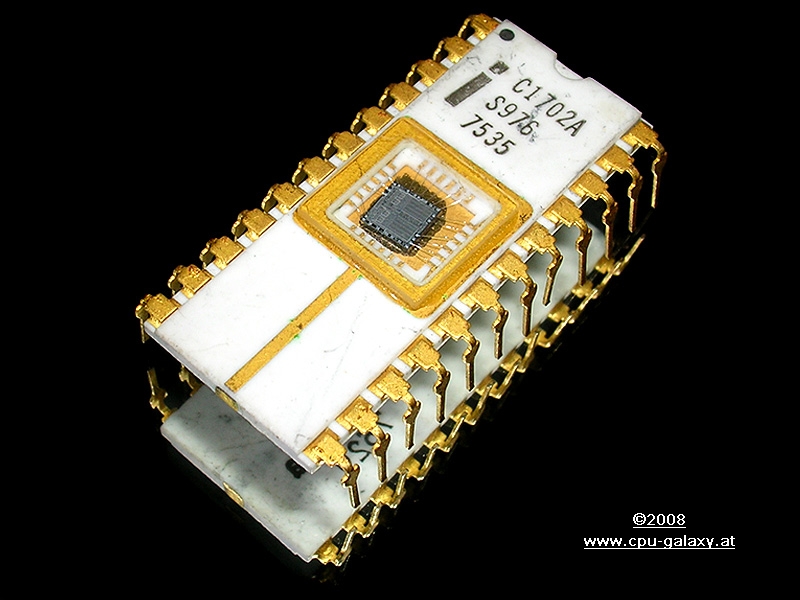

Malaysia, 7532 Malaysia, 7529  Black Dots, Mexico

C1702A C1702A C1702A

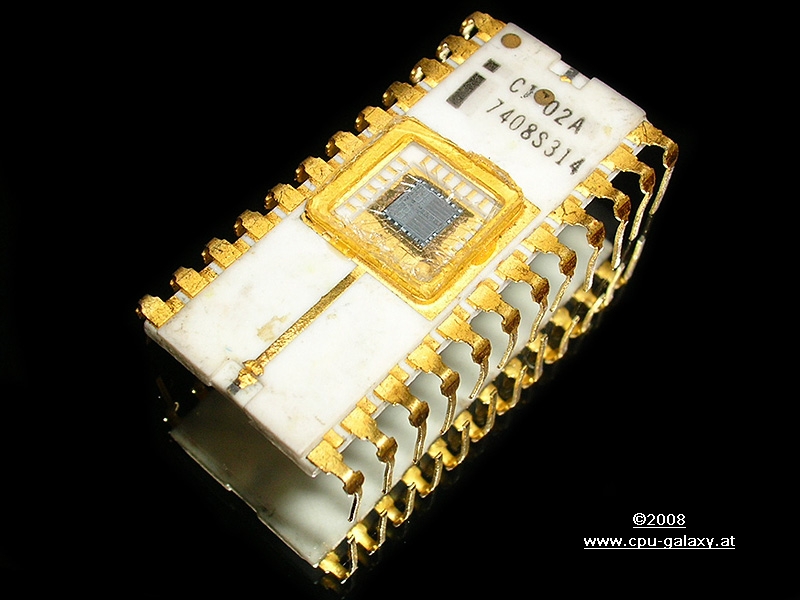

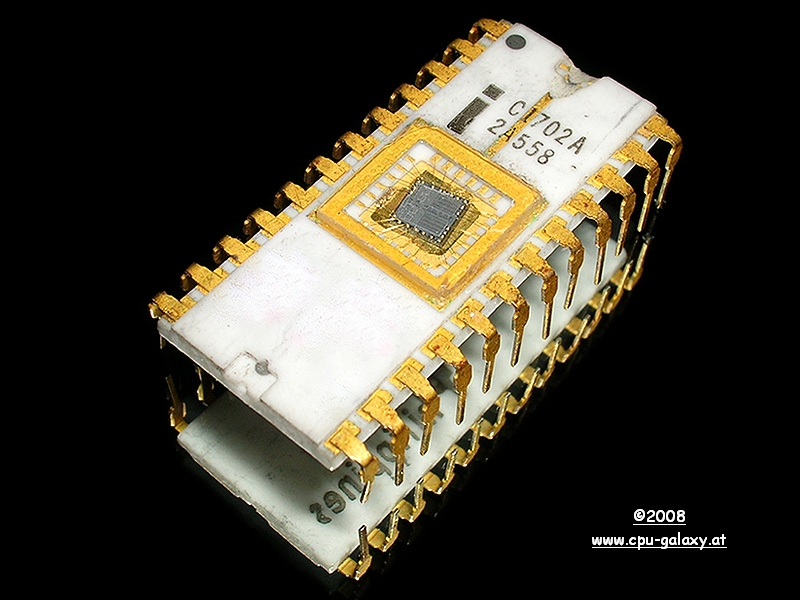

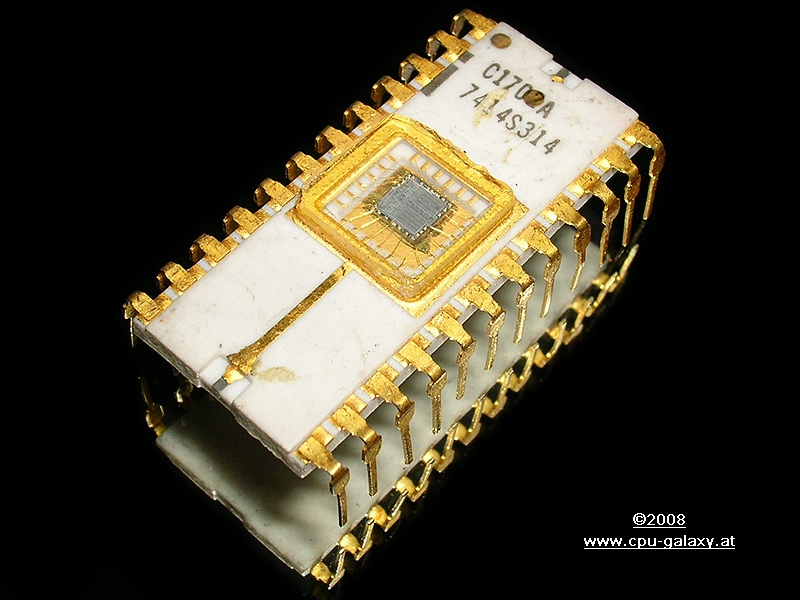

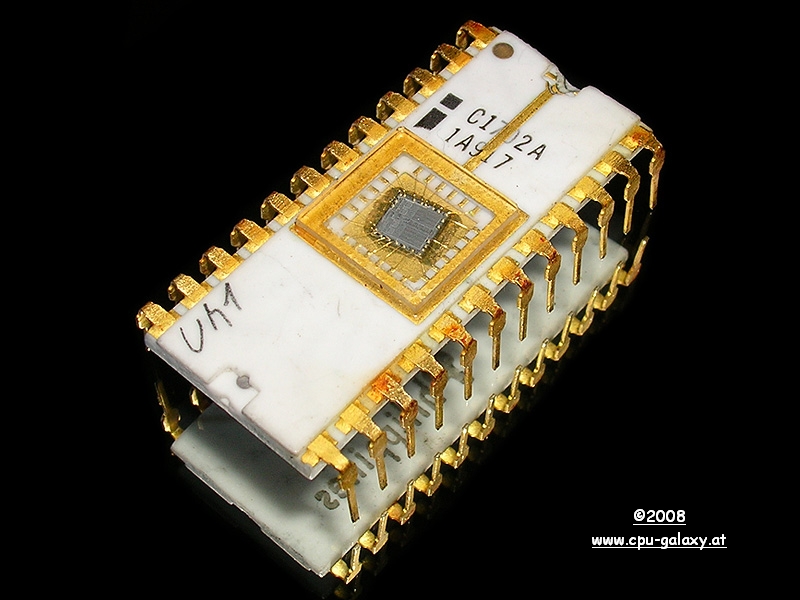

Gold Dots, Malaysia Gold Dots, NDC Philippines, 7609, opposite ground strap

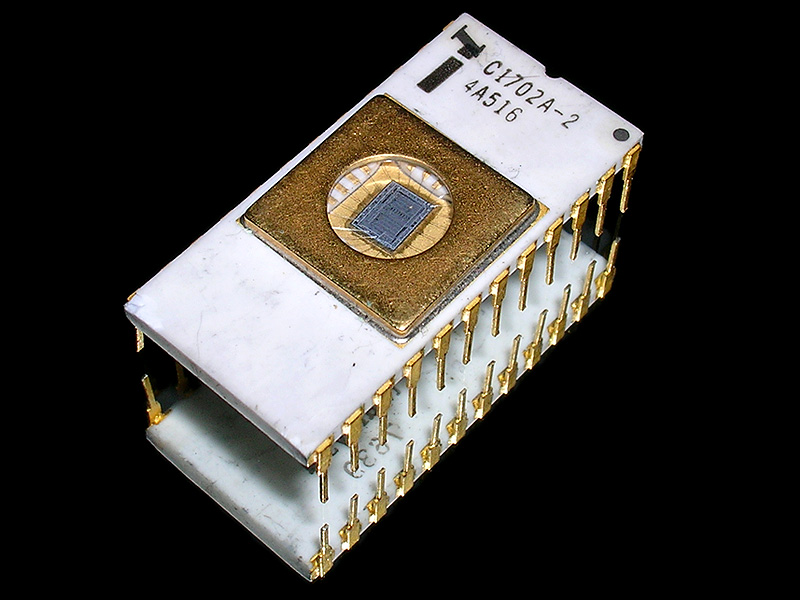

C1702A C1702A C1702A-2
Philippines, 7619, opposite ground strap Malaysia, 8052 Malaysia, 7639

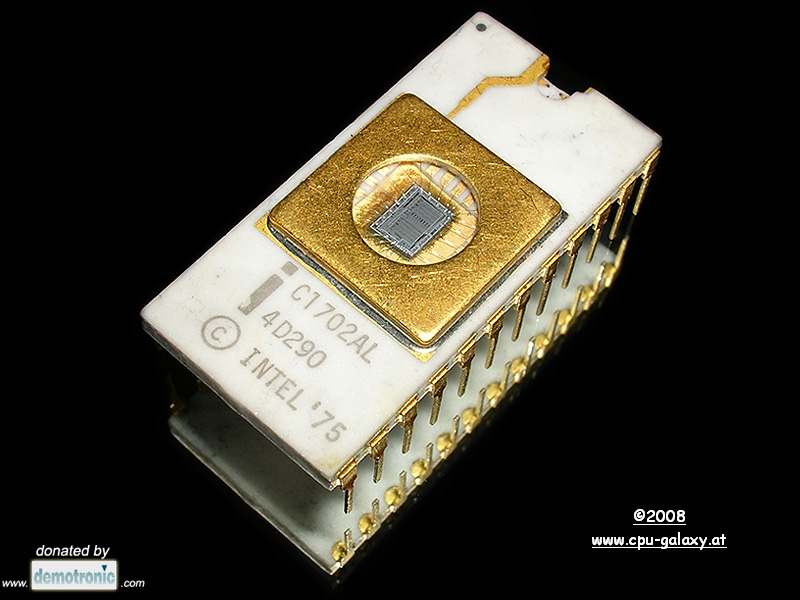

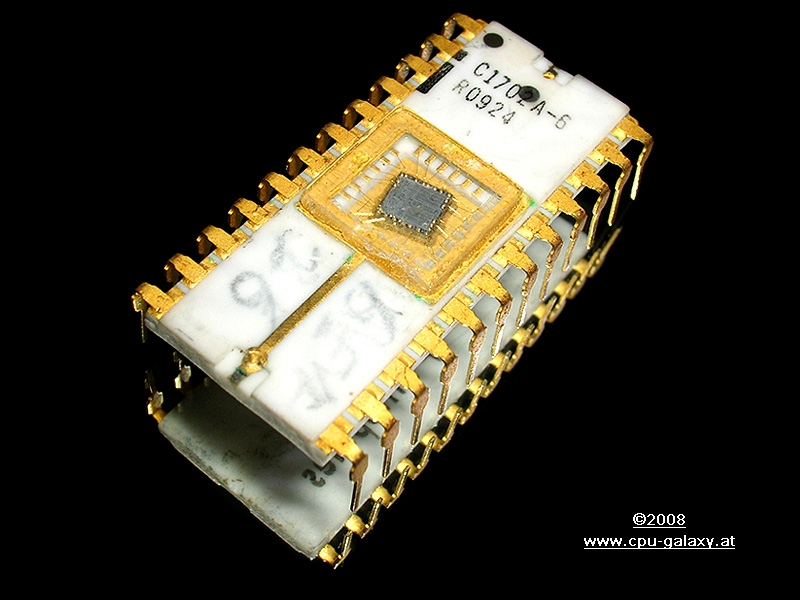

C1702A-6 C1702A-6 C1702AL

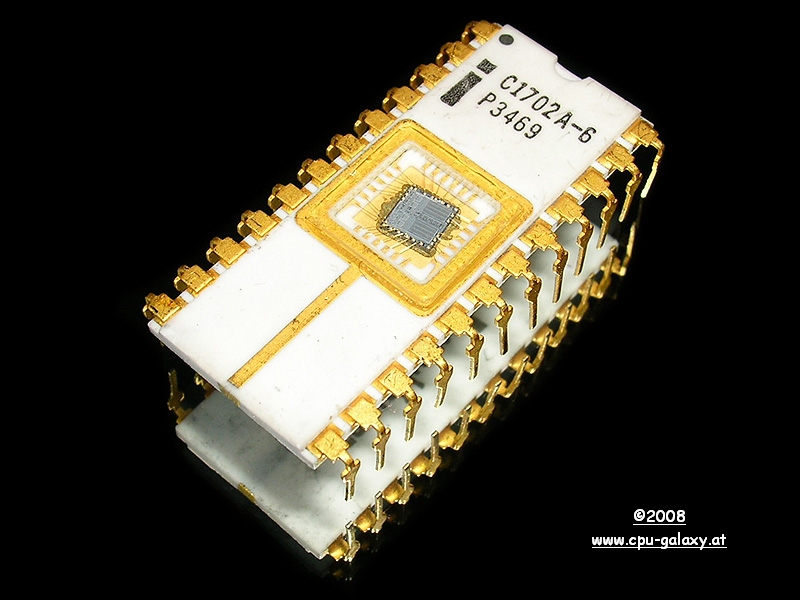

Philippines, 7542, black dots Philippines, 7546, black dot Malaysia, 7844

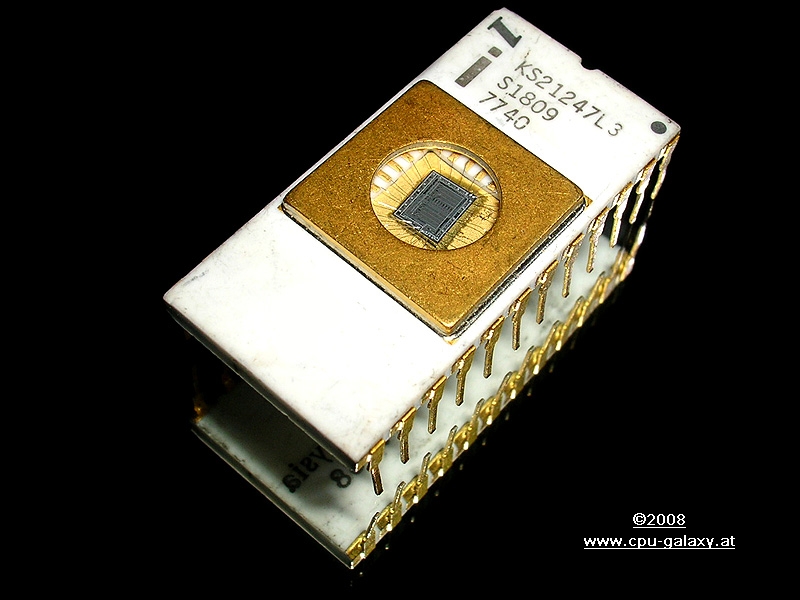

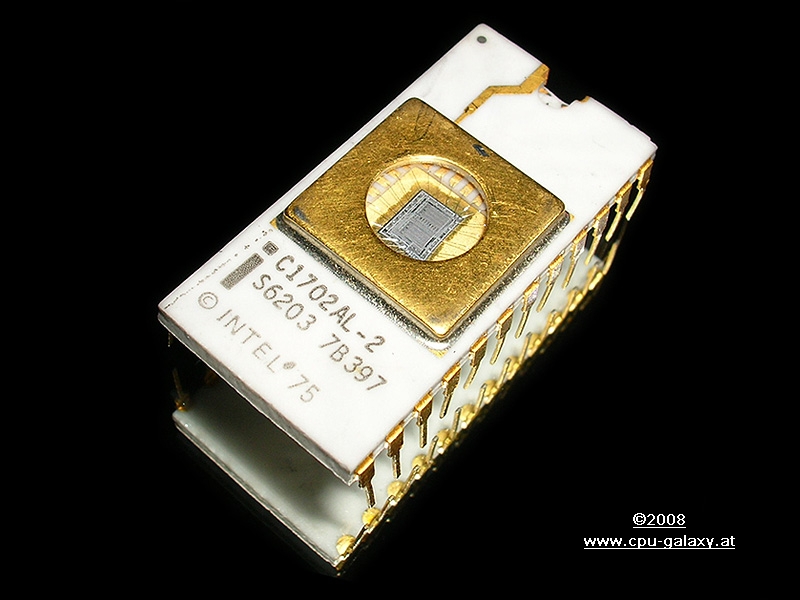

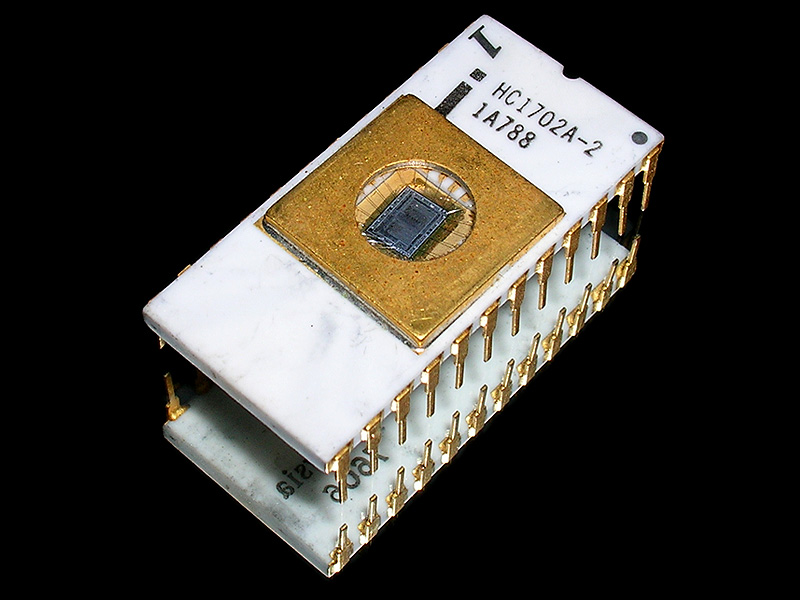

C1702AL-2 HC1702A-2 KS21247L3
Malaysia, 7813 Malaysia, 7606 Malaysia, 7638

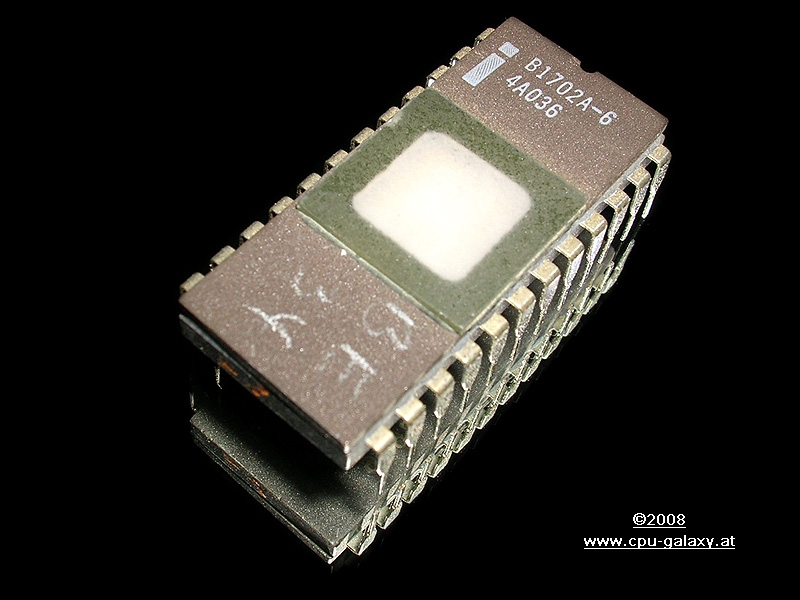

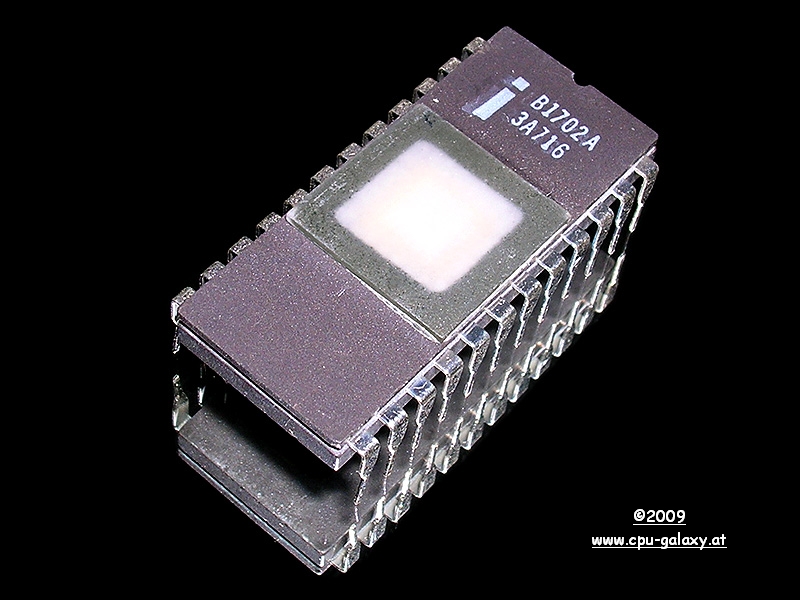

B1702A B1702A B1702A-6

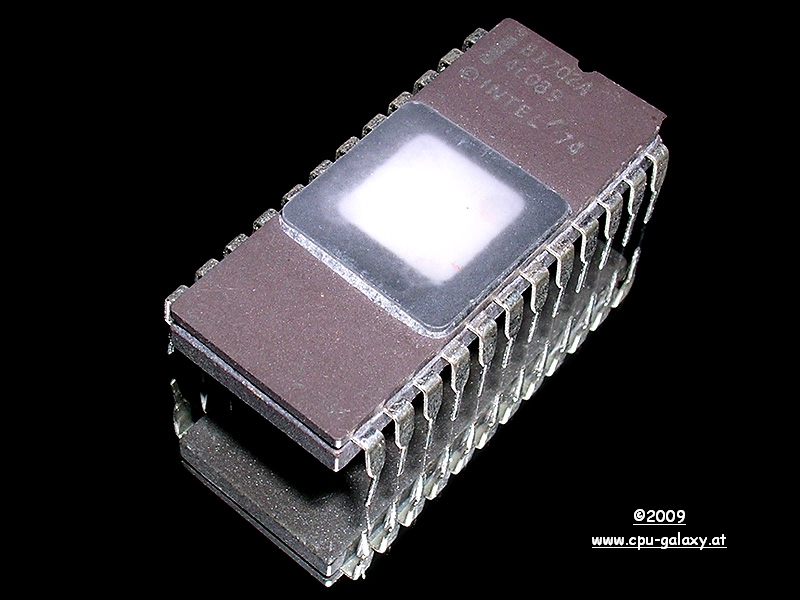

Malaysia, 7633 Malaysia, 7849, with (c)74 Malaysia, 7636

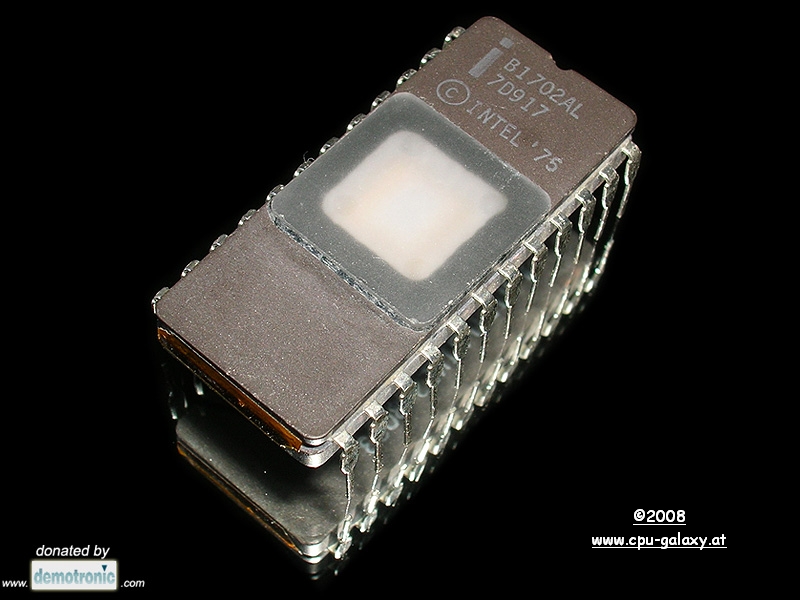

B1702AL B1702AL-2

Philippines, 8033 Malaysia, 7843

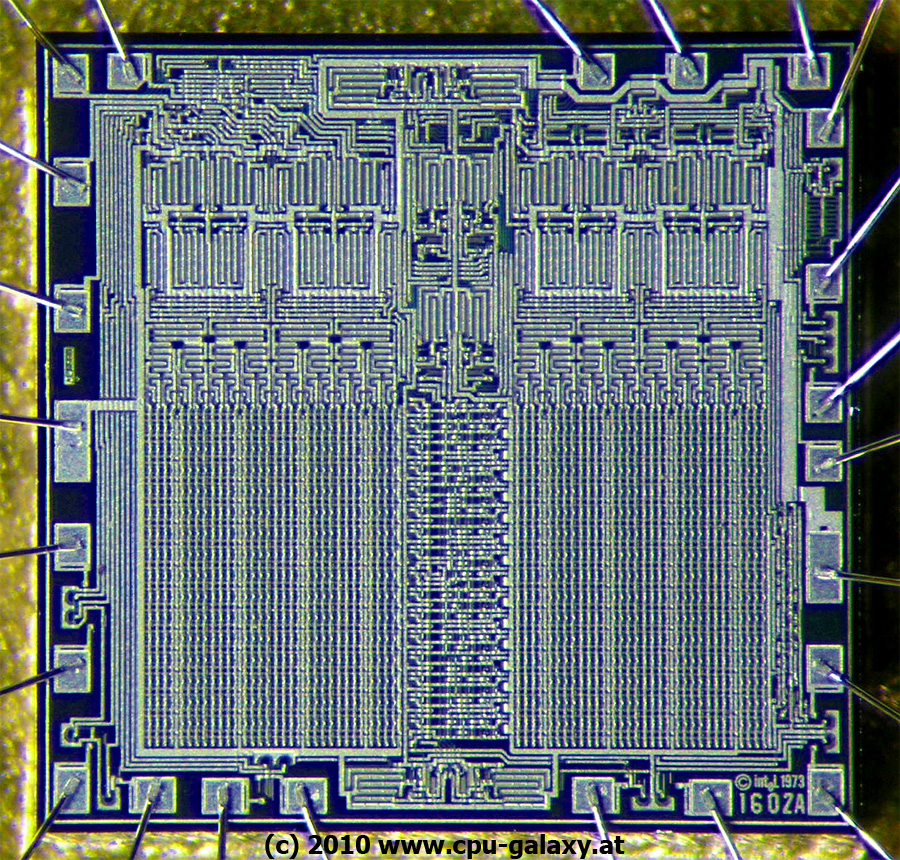

early 1702 Core marked 1602

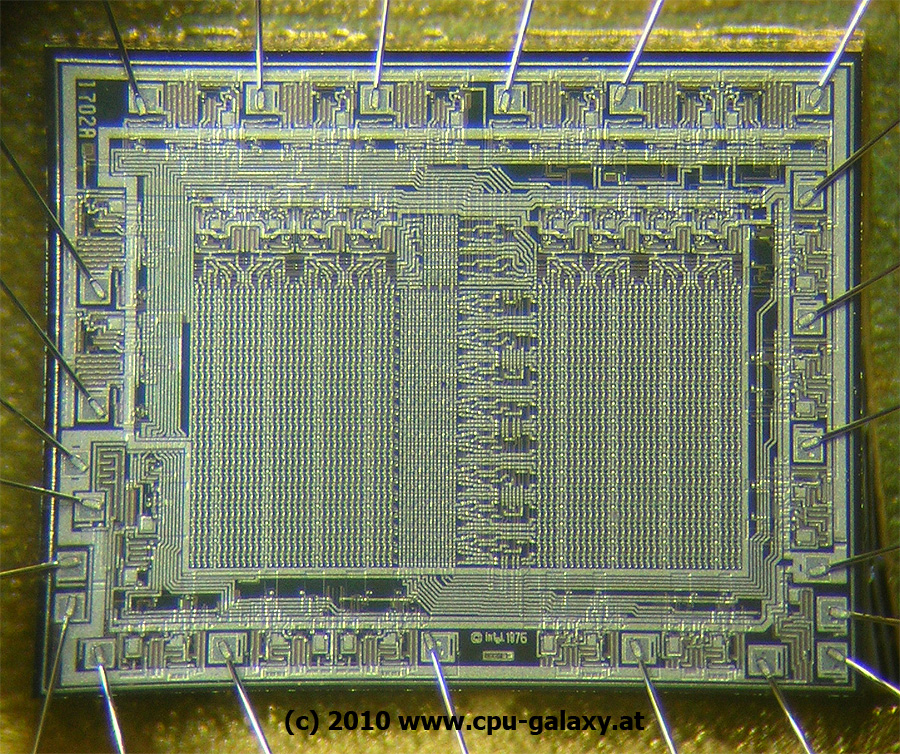

later 1702 Core marked 1702
