Technical
Specification |

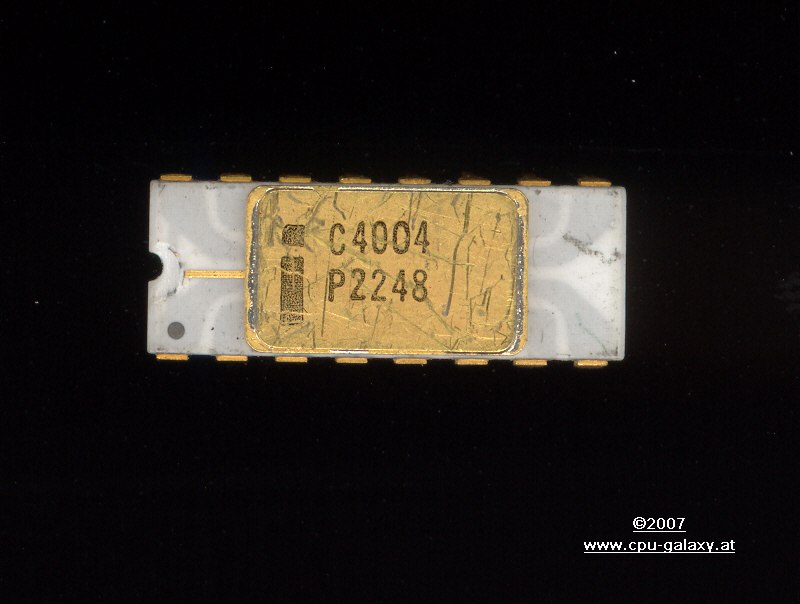

C4004 Grey Traces,
with black dot the
only one I know!
Most wanted CPU of the world!! |

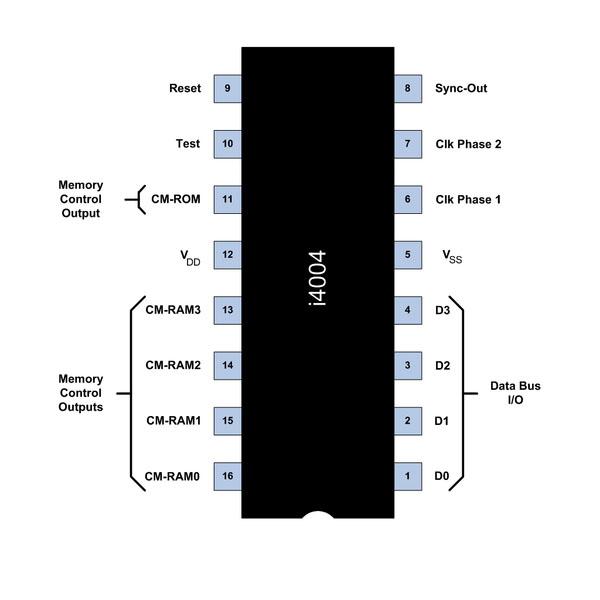

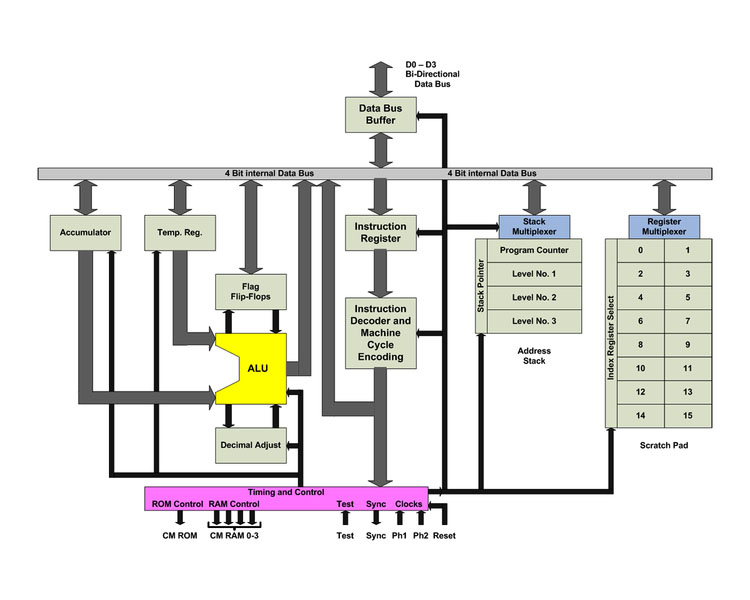

Introduction date:
Frequency:
Technology:
Category:
Transistors:
Addressable memory:
Instructions:
History:
|
15. November 1971
500-750
kHz
P-Channel silicon MOS technology
4 Bit microprocessor
(8 Bit instructions)
2300 , 10 Micron
4096x8-bit ROM and
1280x4-bit RAM
45 with a 4 level stack and sixteen 4-bit (or eight 8-bit)
registers
1969
Busicom assigned Intel to design a set of chips to be used in a
new high performance calculator. Ted Hoff and Federico Faggin
from INTEL and Stan Mazor from Busicom came up with a design
that involved a central processing unit, 4004 (CPU) a read-only
memory,
4001
(ROM) a random access memory,
4002 (RAM) and a shift
register,
4003 (I/O). |
|
|

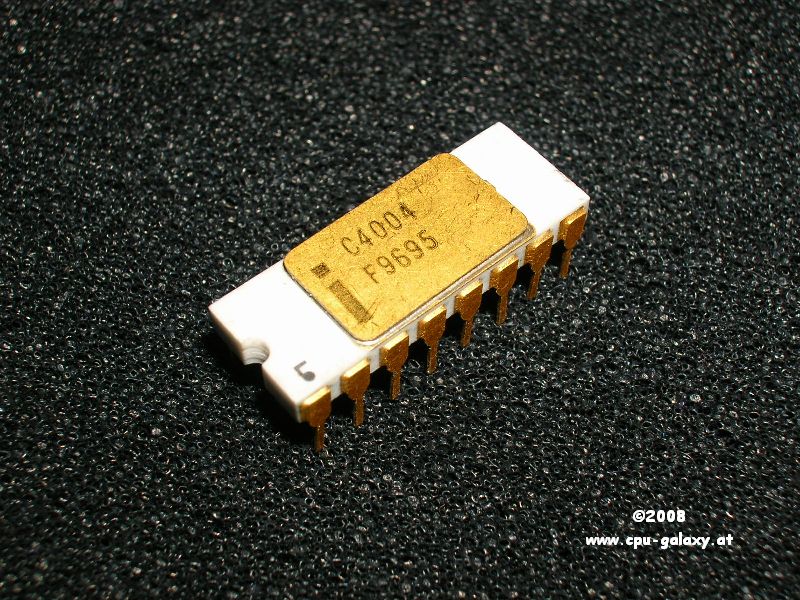

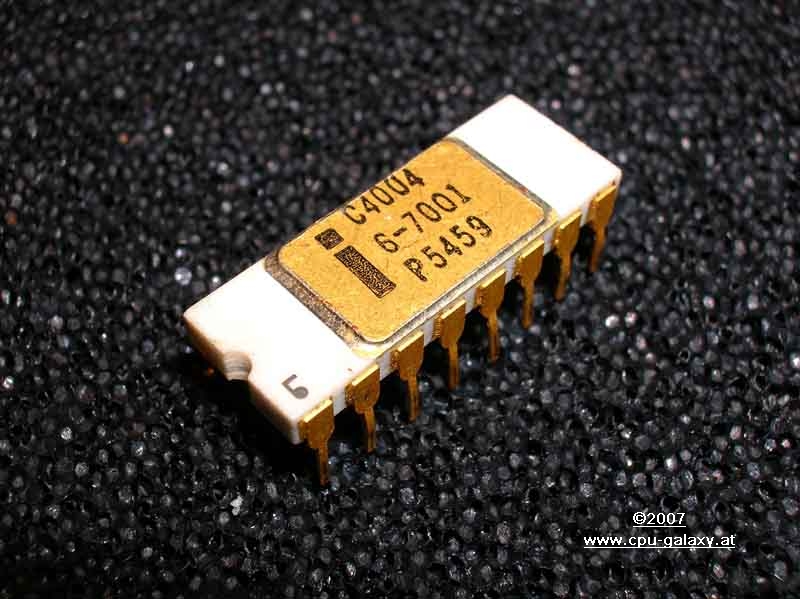

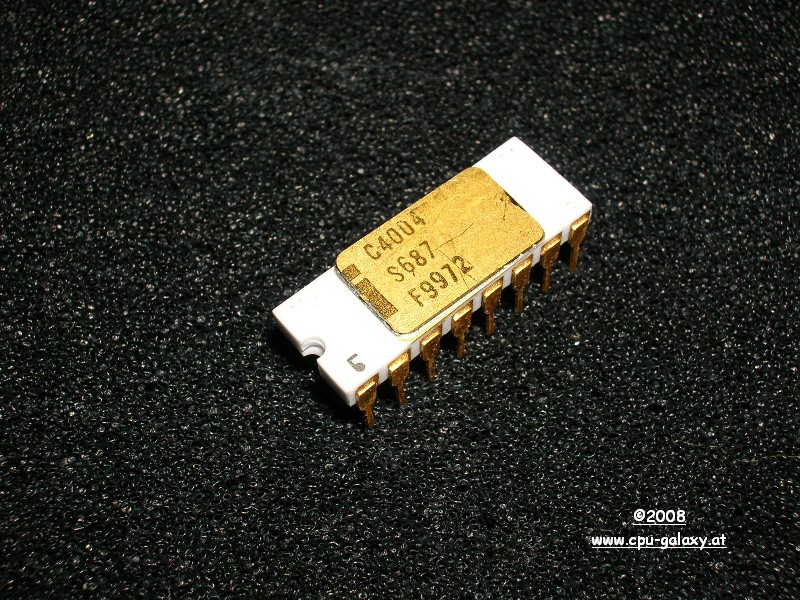

C4004 |

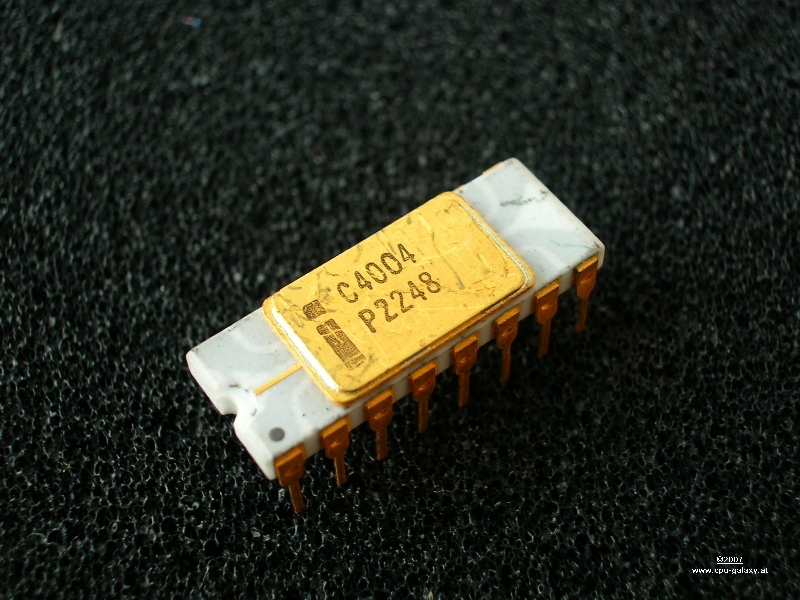

C4004 |
C4004 |
  |
  |
  |
|

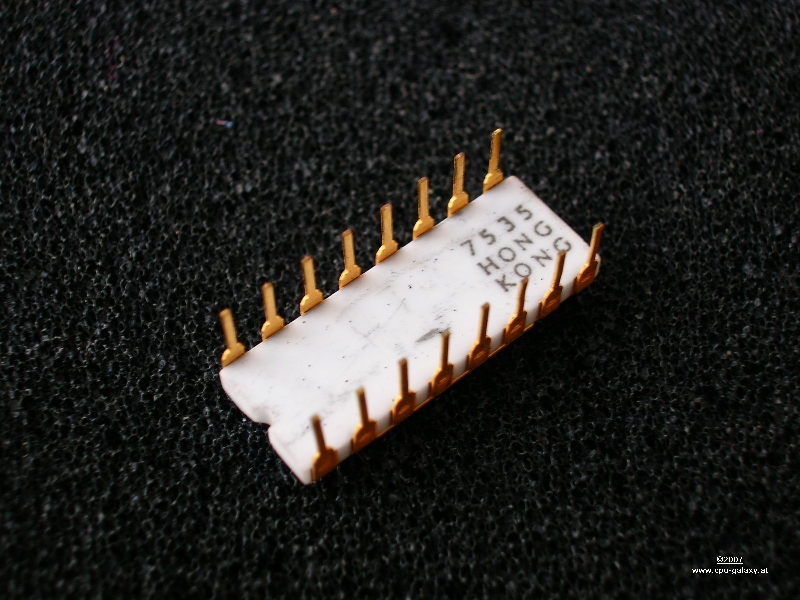

Grey Traces, Hong Kong, 7535
|

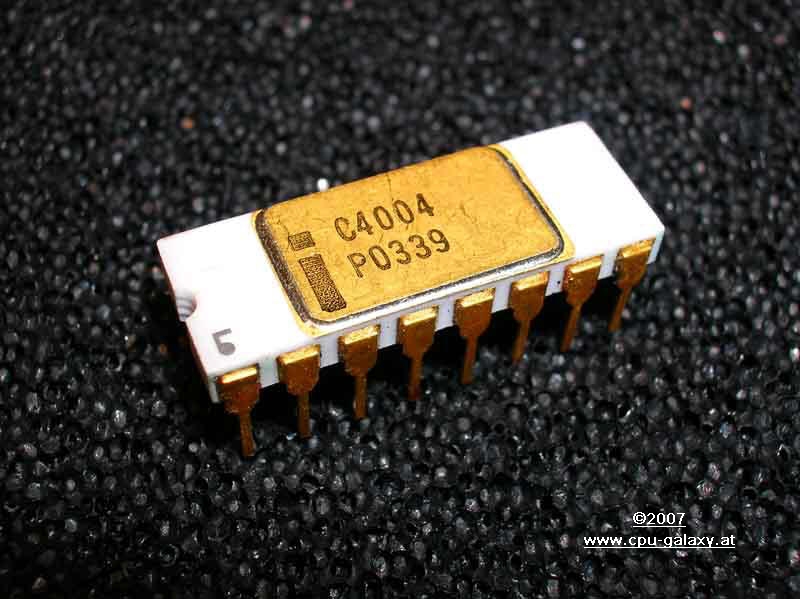

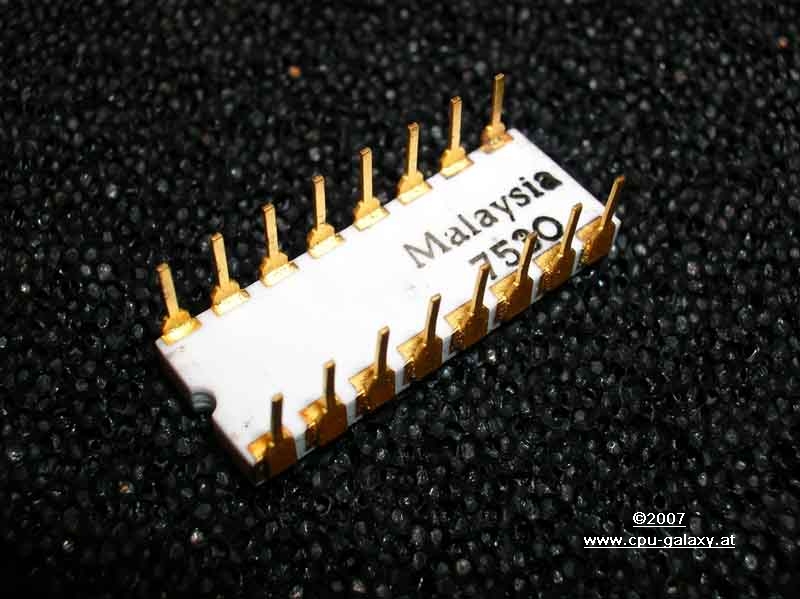

Two Lines, Malaysia NOS
,7530 |

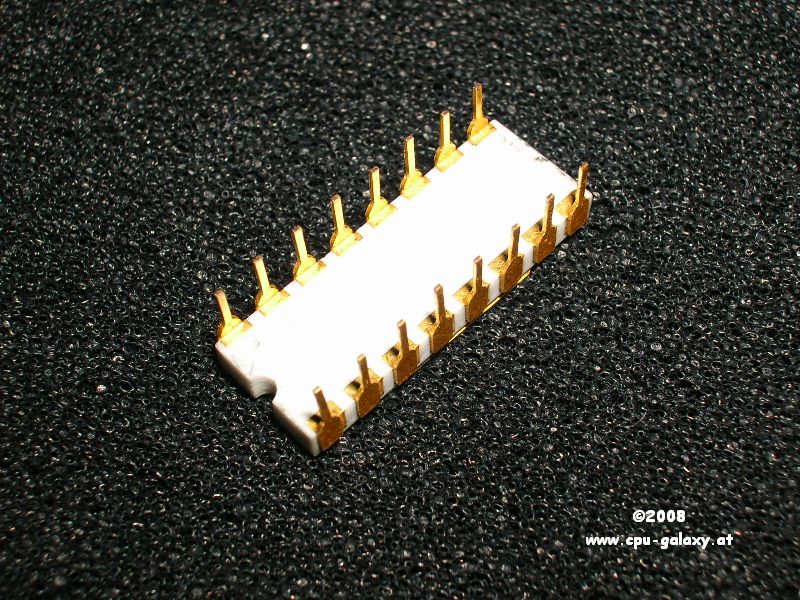

Two Lines, NDC |
|
C4004 |
C4004 |

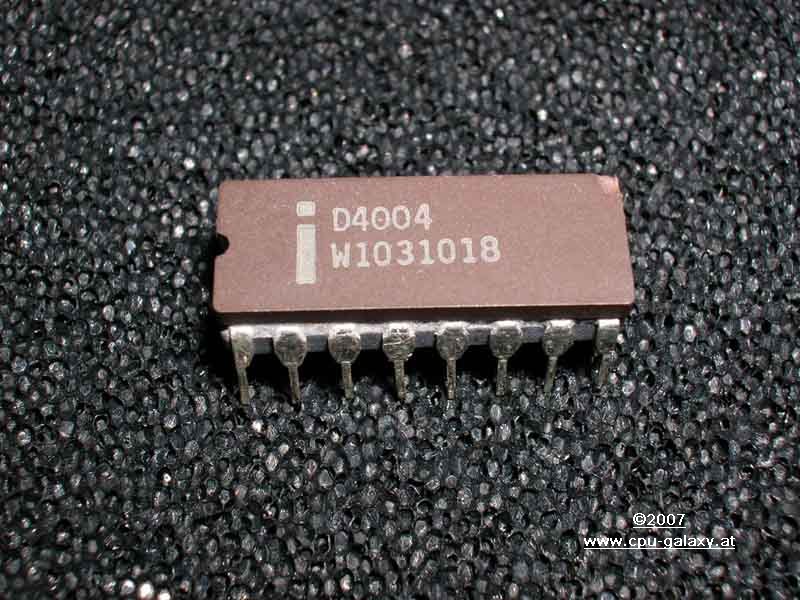

D4004 |
  |
  |
  |
|

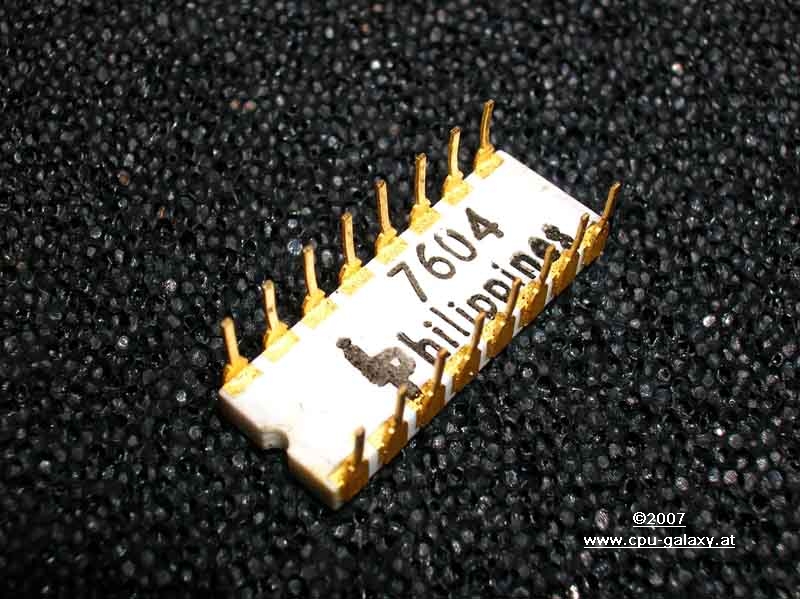

Three Lines, Philippines,
7604 |
Three Lines, N.D.C |
Malaysia, 8101 |
|

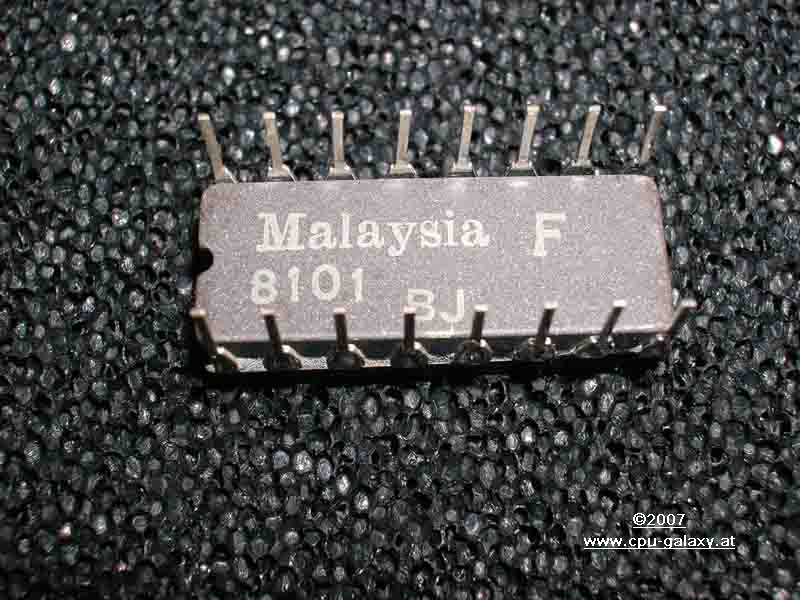

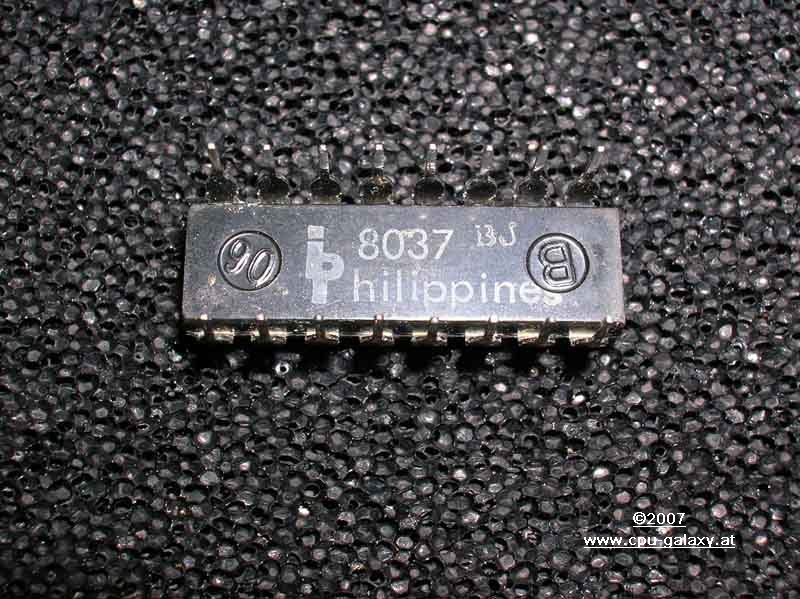

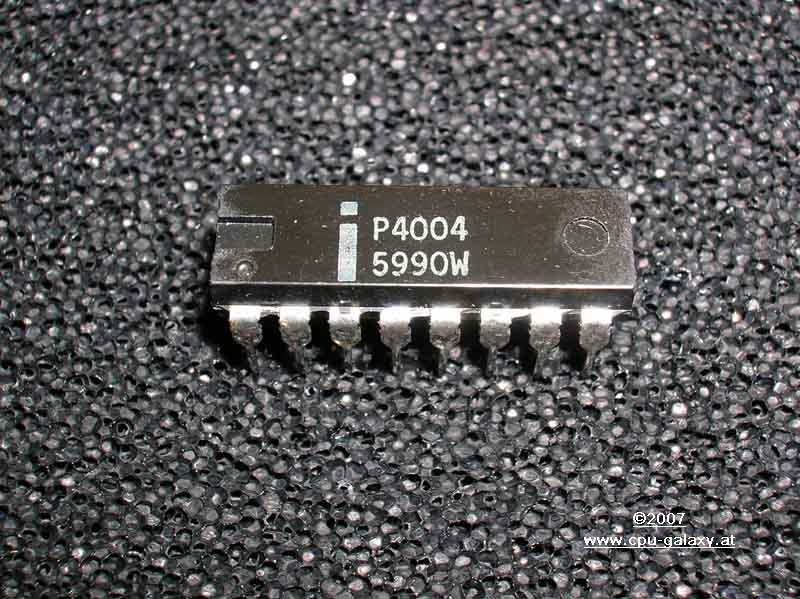

P4004 |
|
|
  |
|
|
|
Philippines, 8037 |
|
|
| |
|
National
Semiconductors
was the only second source to Intel 4004 |
|

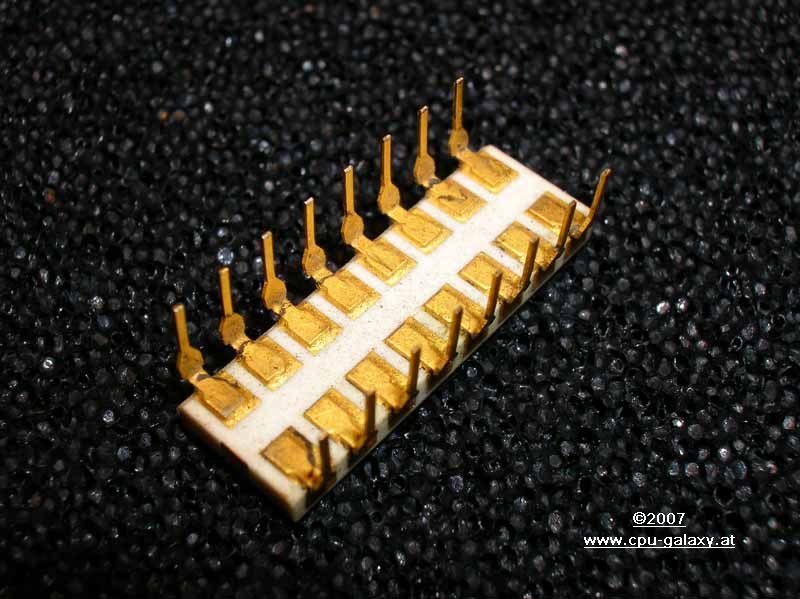

INS4004D |
INS4004D |
INS4004D |
  |
  |
  |

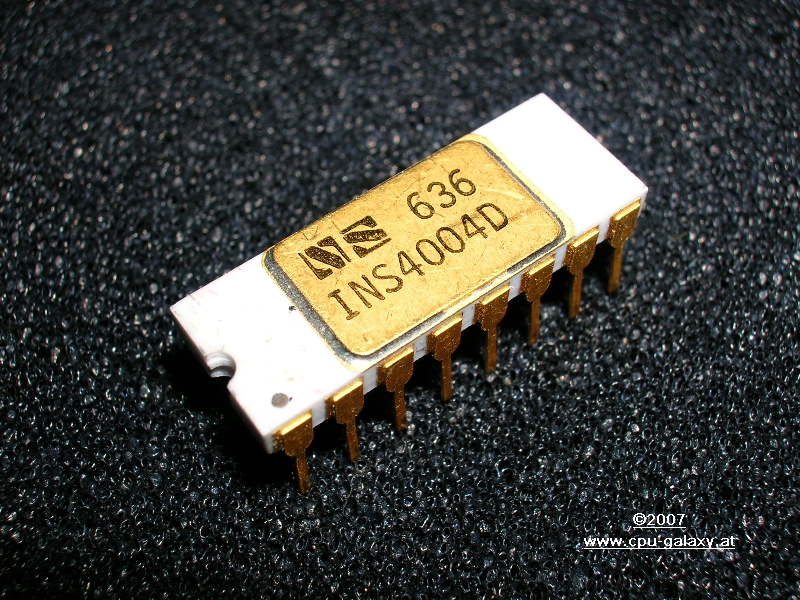

MFD 7636, white
ceramic, no
ground strap, very rare! |

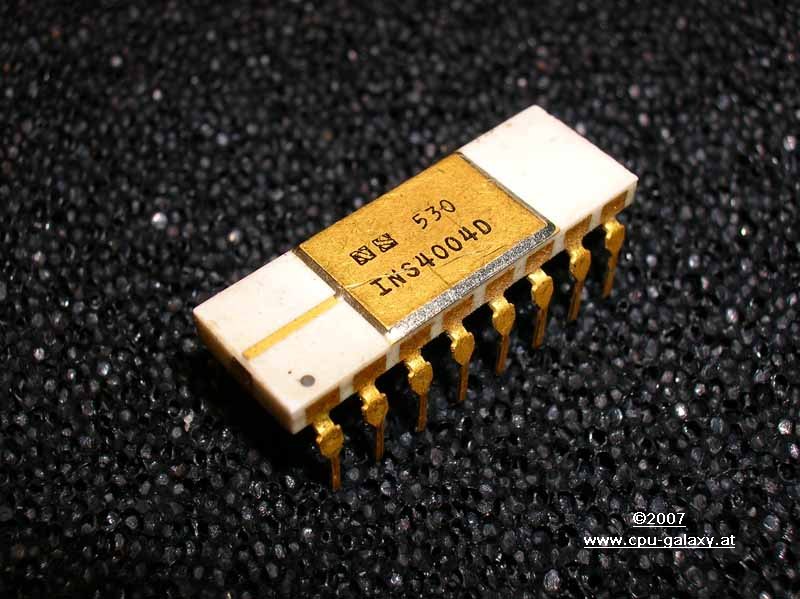

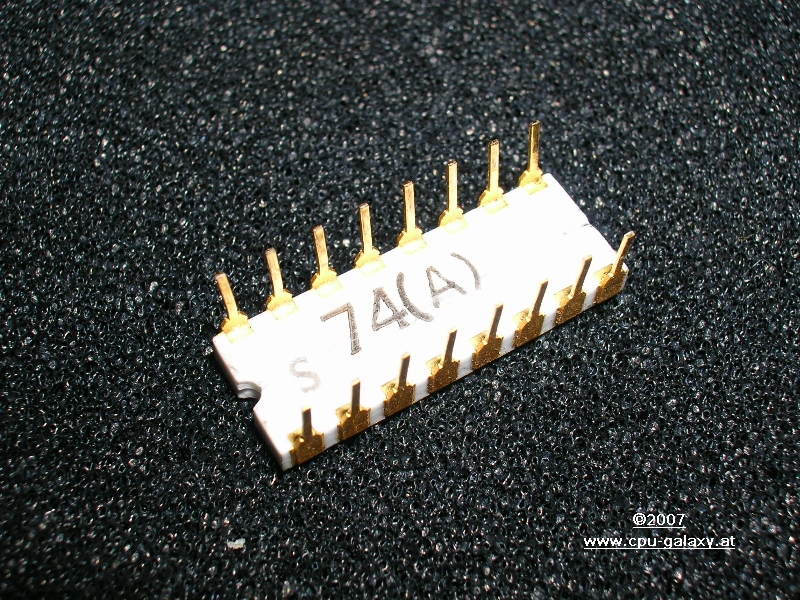

MFD 7530, white
ceramic, ground strap,
rarer than the INTEL C4004 with grey traces,
only one known to
exist!!! |

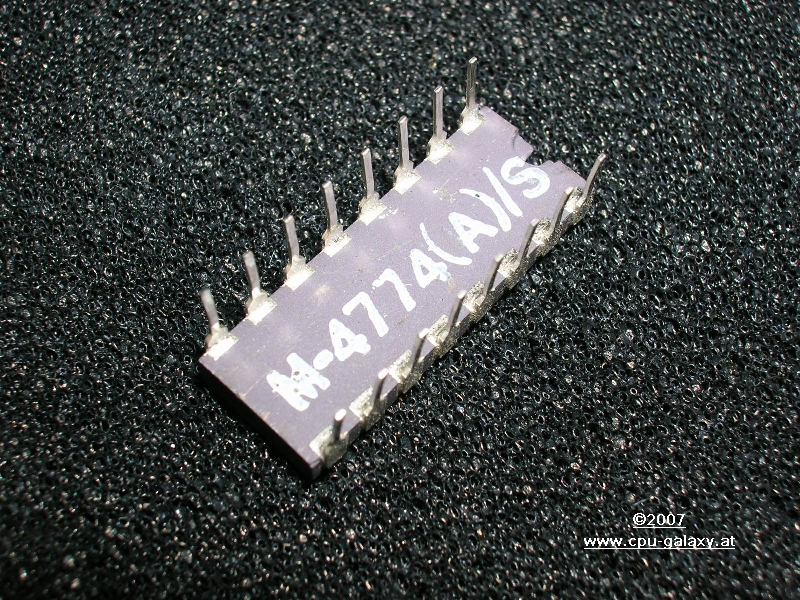

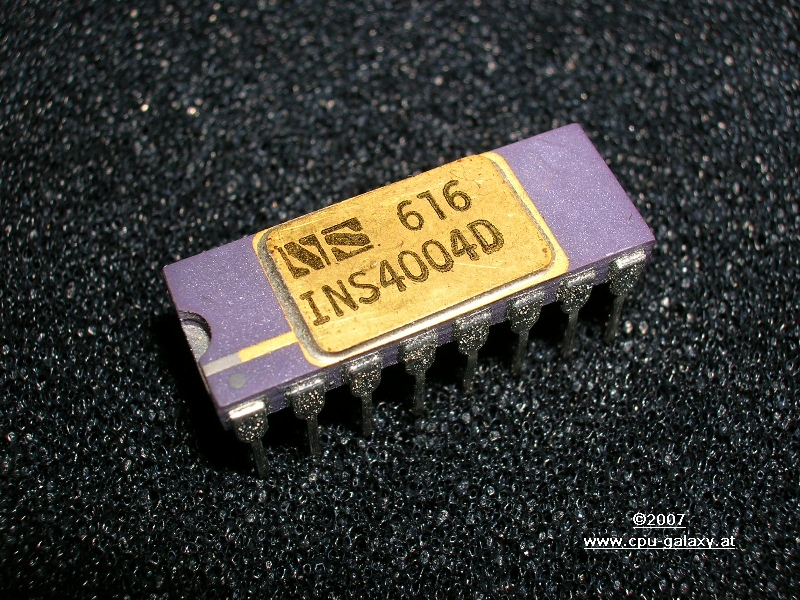

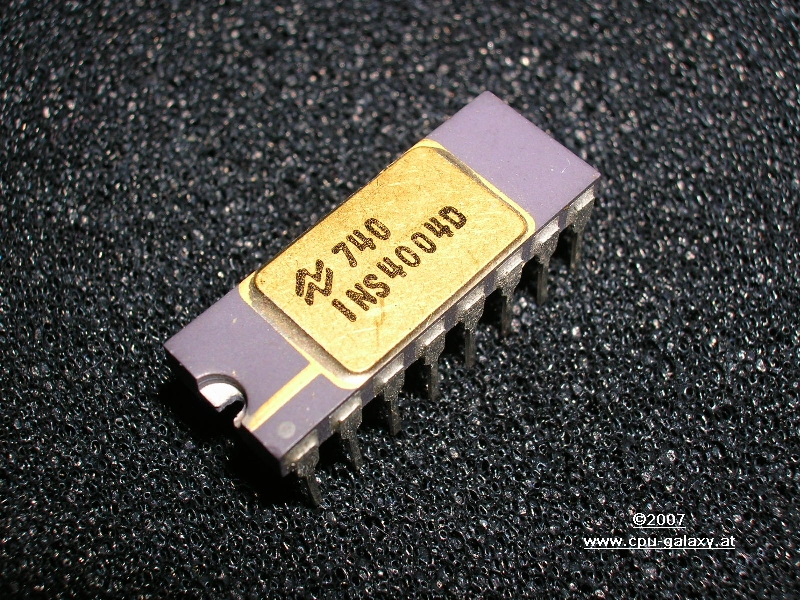

MFD 7616, purple
gold cap, |
|

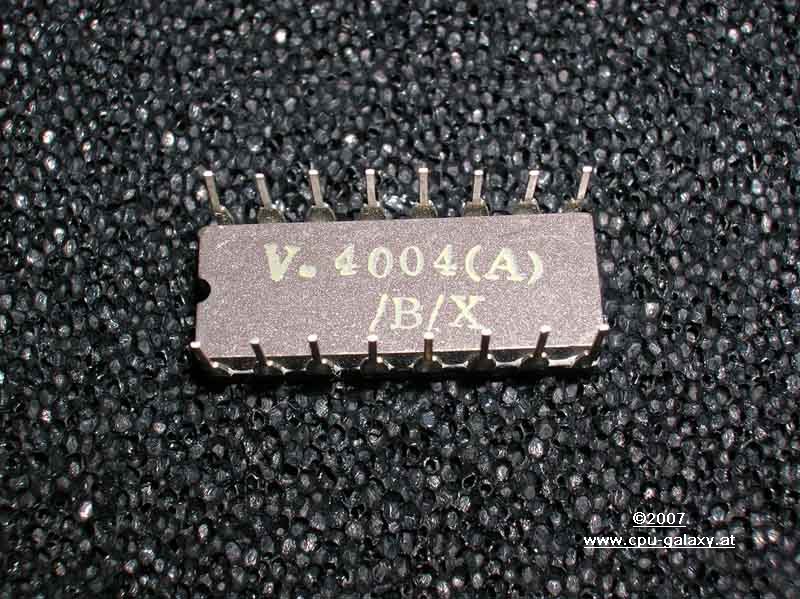

INS4004D |

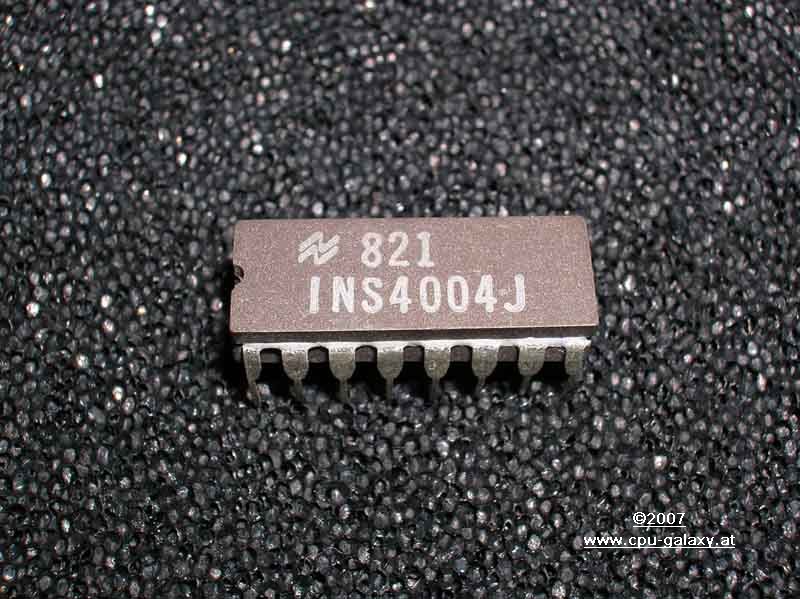

INS4004J |
|
  |
  |
|
|
MFD 7740, purple
gold cap, |
MFD 7821, ceramic
dip,
not so rare |
|
| |
|
