Technical Specification


Introduction date:
Frequency:
Technology:
Category:
Transistors:
Addressable memory:
Instructions:

History:
 		 1974
500-750 kHz
P-Channel silicon MOS technology
4 Bit microprocessor (8 Bit instructions)
3000 , 10 Micron
8192x8-bit ROM and 1024x4-bit RAM
60 with a 8 level stack, 24x4-bit (or12x8-bit) registers and interrupt abilities

The 4040 is an enhanced version of the 4004. They have both the same
clock speed. The 4040 has a increased stack size, double memory
address, 14 new instructions, eight 4-bit registers, and interrupt
abilities.
The 4040 family is also identified as MCS-40 and  was primary used for
games, testing and control equipment.
The Intel iUPP 103 PROM Programmer use the 4040 cpu.

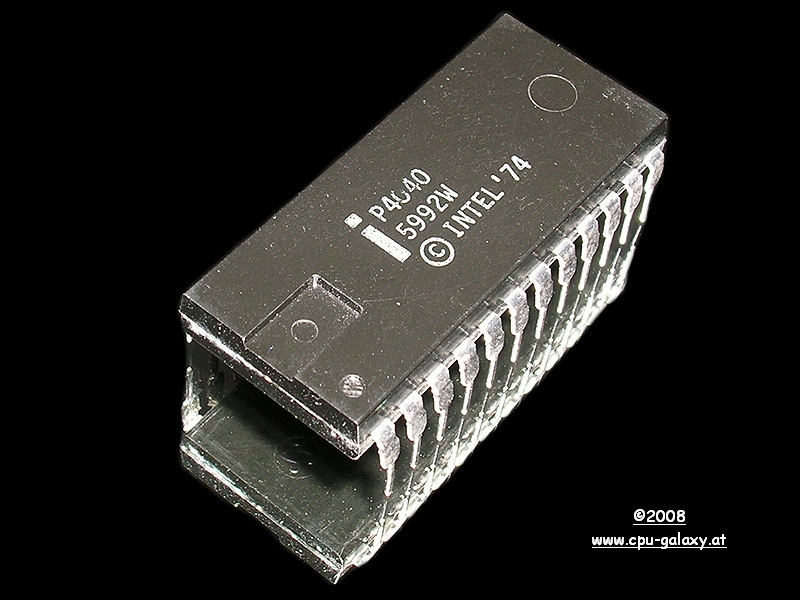

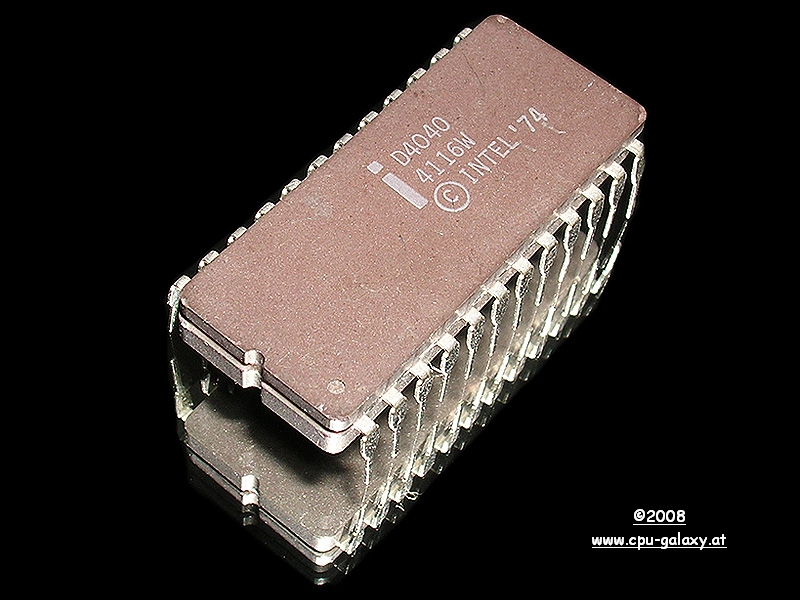

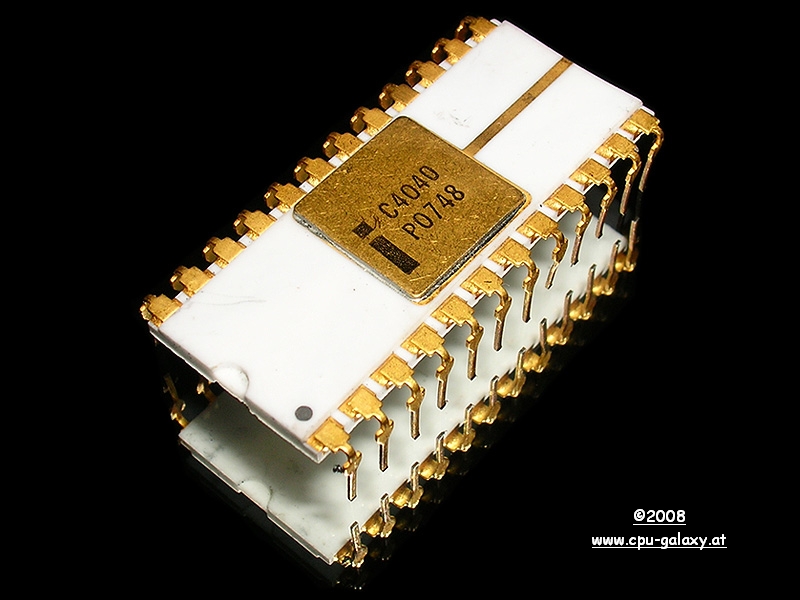

C4040 D4040 D4040
Malaysia, 7530
 one of the rarest CPU in the world!!		 Philippines, MFD 7719 Ground Dot, Philippines, MFD 8015
D4040 P4040

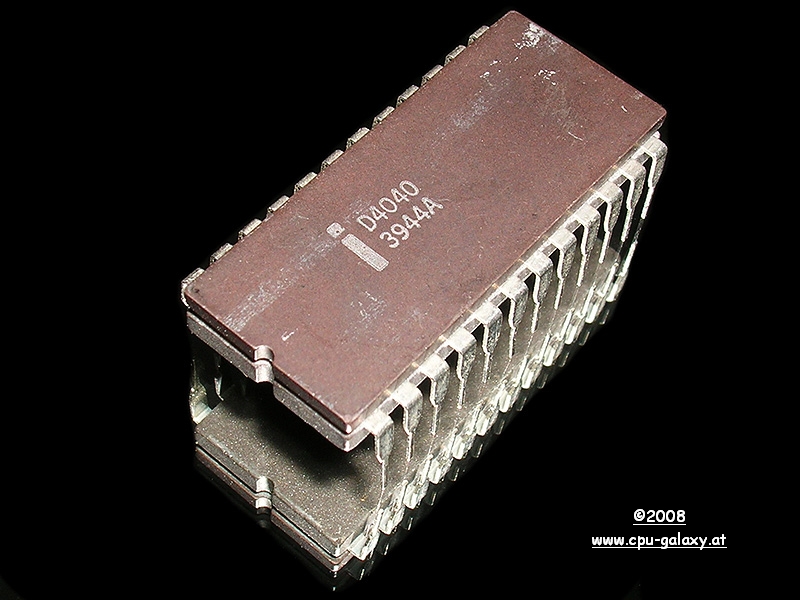

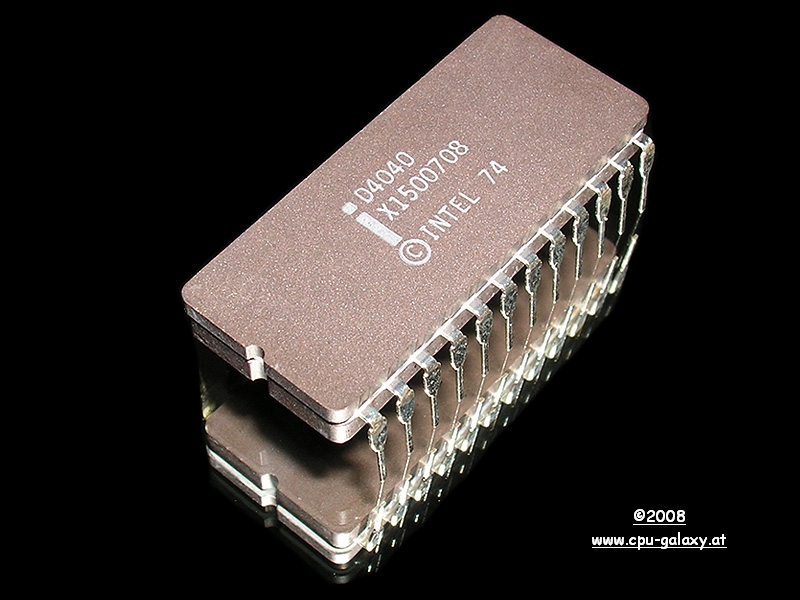

Philippines, MFD 8117 Philippines, MFD 8037
The MCS-40 chipset contains following chips

4008 - Memory +I/O Interface
4009 - Memory +I/O Interface
4040 - CPU
4101 - 1024-bit (256 x 4) Static RAM with separate I/O
 4201 - 4MHz Clock Generator
 4207 - General Purpose Byte I/O Port
 4209 - General Purpose Byte I/O Port
 4211 - General Purpose Byte I/O Port
4265 - Programmable General Purpose I/O Device
 4269 - Programmable Keyboard Display Device
 4289 - Standard Memory Interface for MCS-4/40 (replaces 4008/4009)
4308 - 8192-bit (1024 x 8) ROM w/ 4-bit I/O Ports
4316 - 16384-bit (2048 x 8) Static ROM
 4702 - 2048-bit (256 x 8) EPROM
4801 - 5.185 MHz Clock Generator Crystal

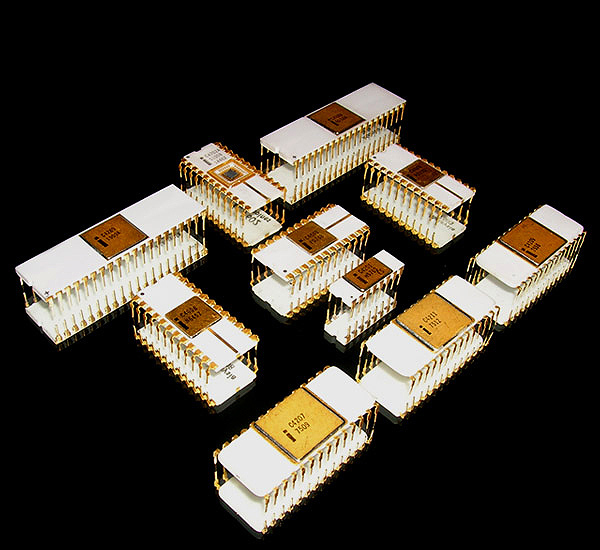

This MCS-40 Set here on the picture here is one of the most complete in white ceramic on the world, and in absolute great condition.

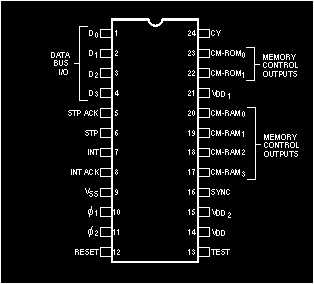

Intel 4040 pinout
