Rare gold cap version
of the I860

Introduction:
Frequency:
Technology:
Category:
Transistors:
On-chip peripherals:
Data Bus:

Cache:
XR:

XP:

History:

1989
25 MHz to 50 MHz
CHMOS IV Process
Risc Processor
XP40 & XP50 2.500.000 Transistors at 0,8 Micron
64-bit 3D Graphics Unit
32 Bit

4 KB 2-way set-associative code cache
8 KB 2-way set-associative data cache
16 KB 4-way set-associative code cache
16 KB 4-way set-associative data cache

The i860 processor achieves high levels of integer, floating point, and 3D graphics performance. Machines based on the i860 address simulation and modeling, animation, virtual reality, image processing, and other high end, computationally intensive applications. It was used in UNIX workstations and the Intel iPSC/860 Supercomputer.

Intel Paragon
The Intel Paragon was a series of massively parallel supercomputers produced by Intel, and was based around the Intel i860 RISC microprocessor. Up to 2048 (later, up to 4000) i860s were connected in a 2D grid. The prototype for the Intel Paragon was the Intel Delta, built by Intel with funding from DARPA and installed operationally at the California Institute of Technology in the late 1980s with funding from the National Science Foundation. The Delta was one of the few computers to sit significantly above the curve of Moore's Law.

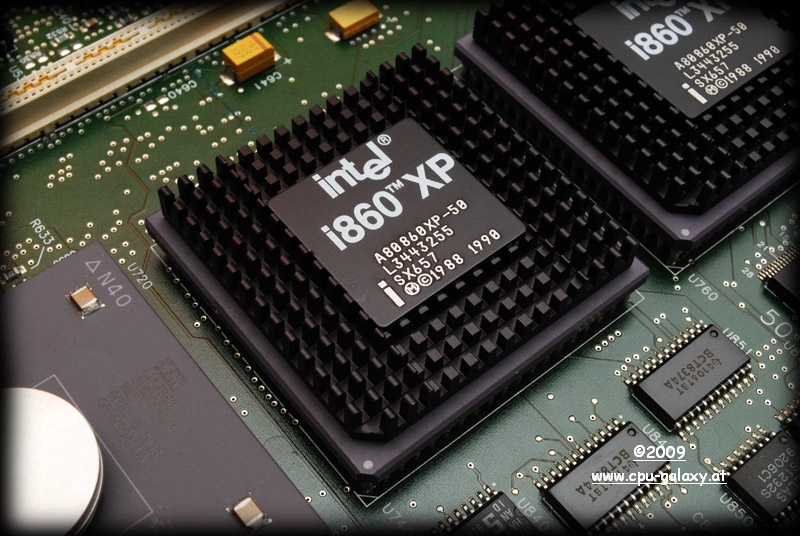

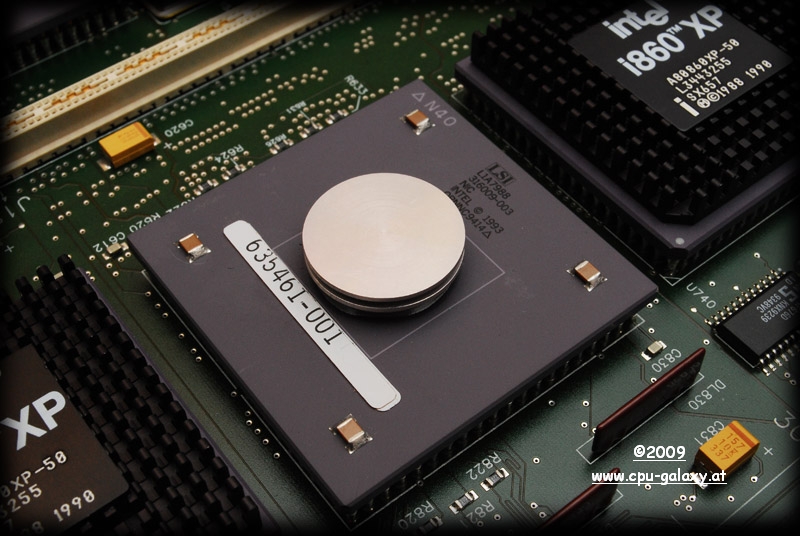

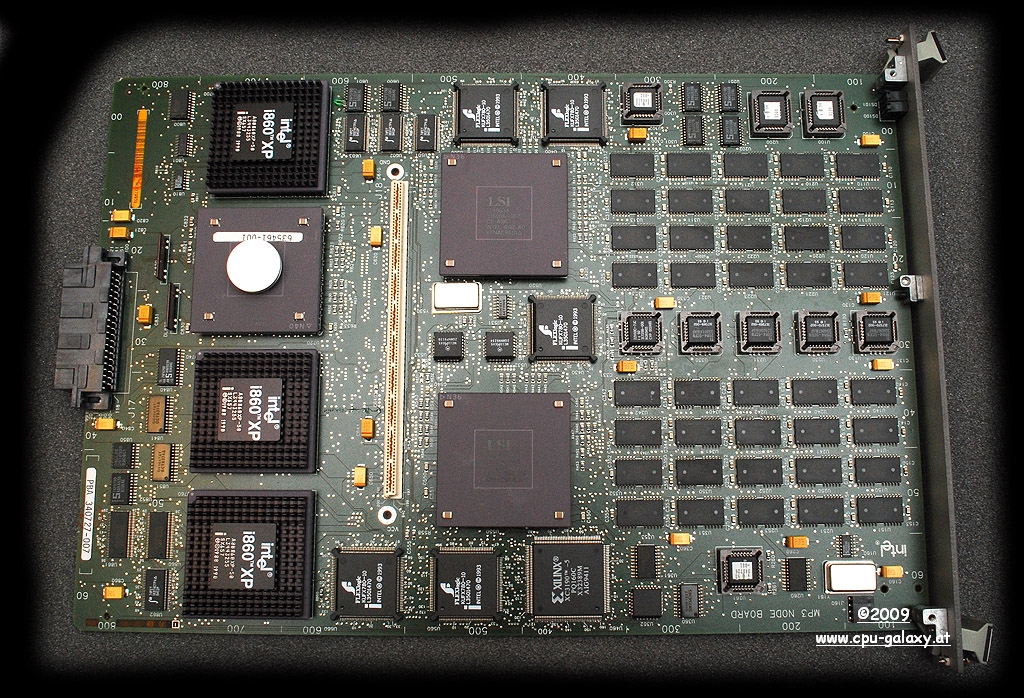

MP-16 CPU from a Intel Paragon	3 I860XP Processors

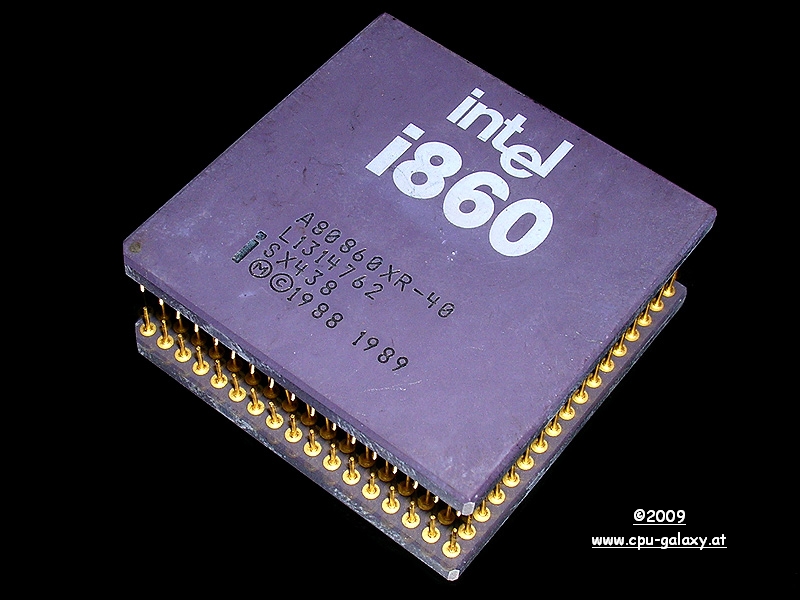

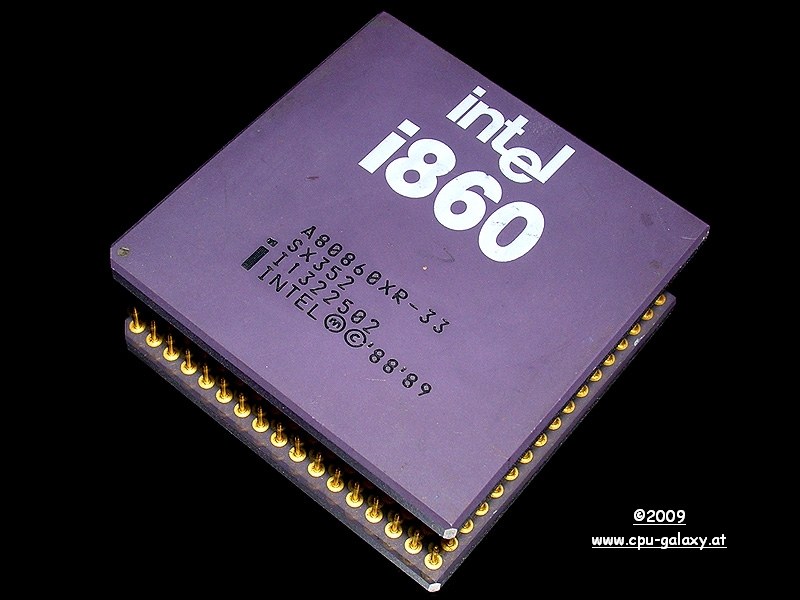

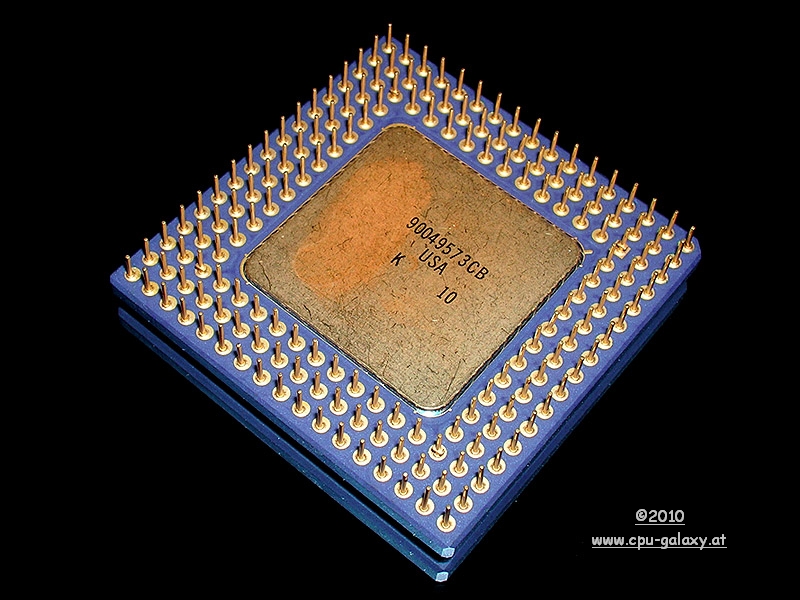

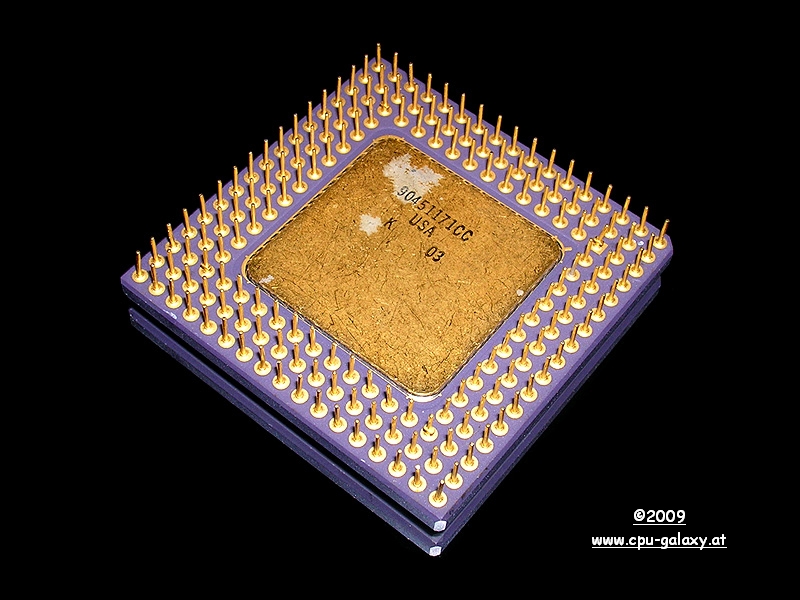

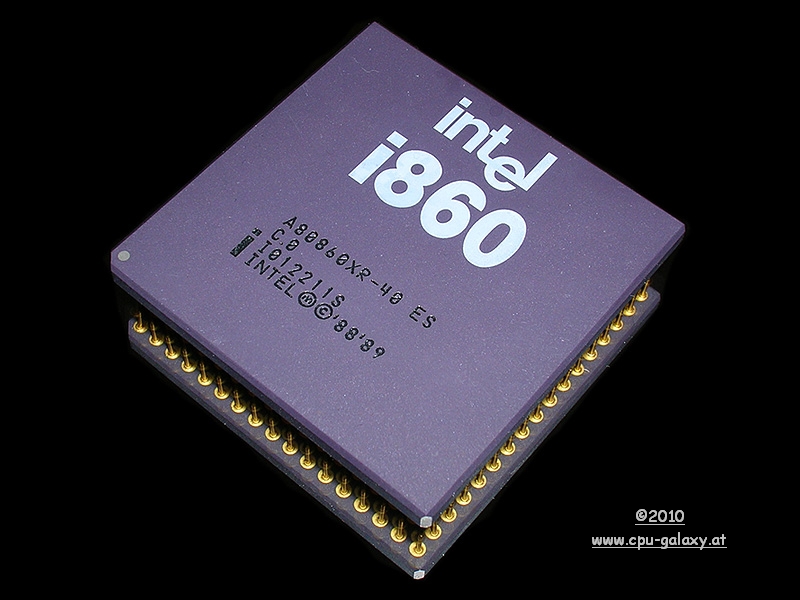

A80860XR-33	A80860XR-40 ES	A80860XR-40

SX352, USA bottom view	C.0, USA, Engineering Sample bottom view	SX438, USA bottom view

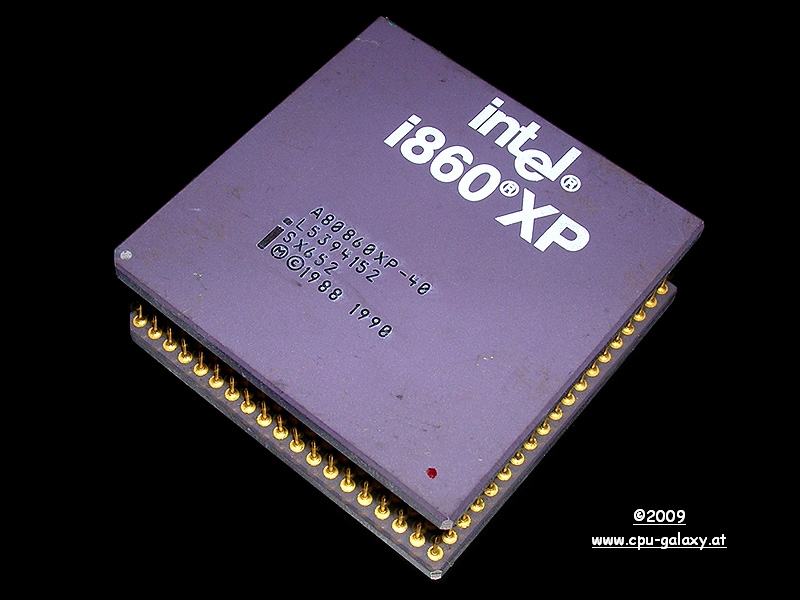

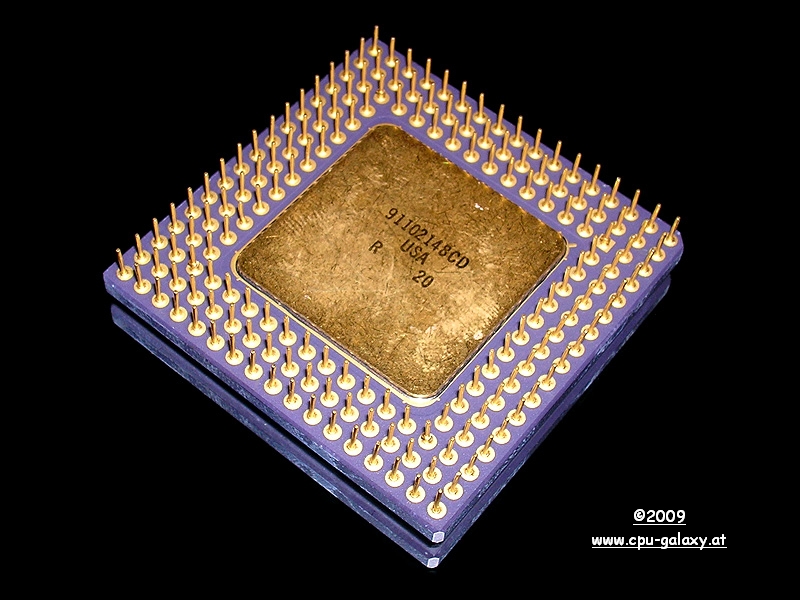

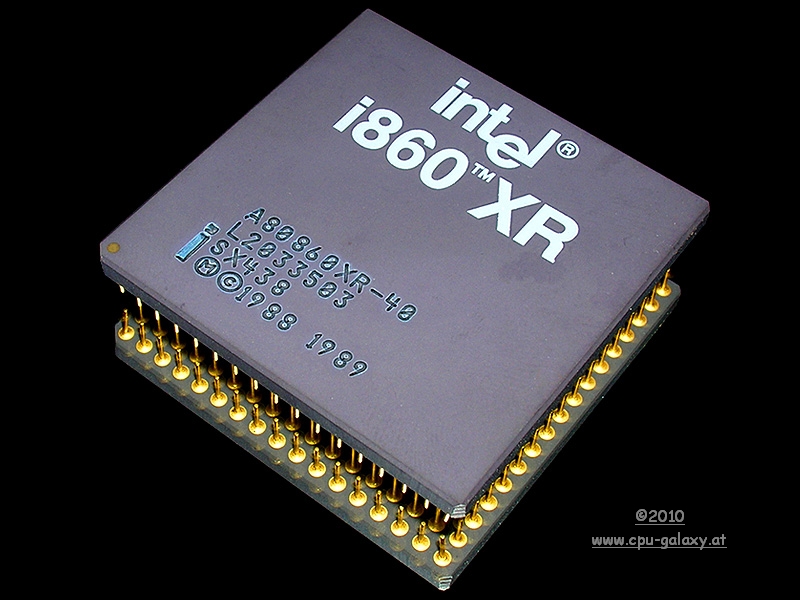

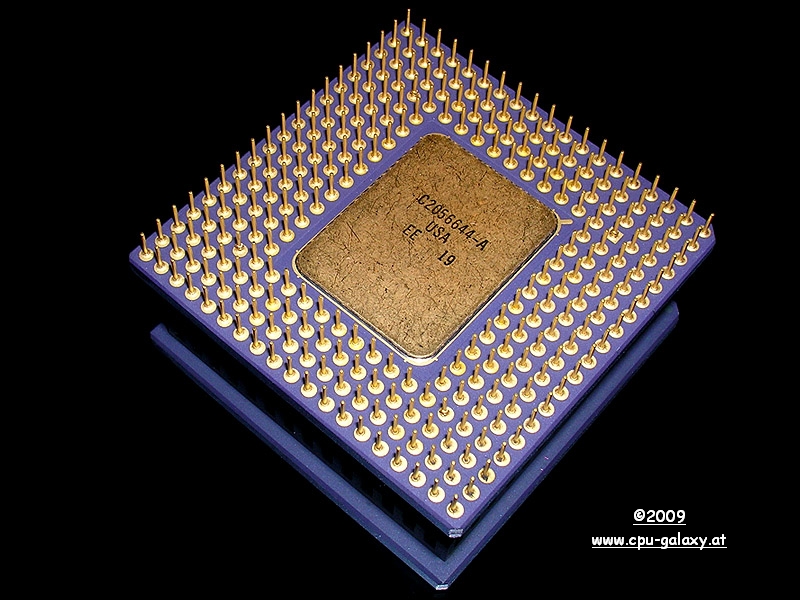

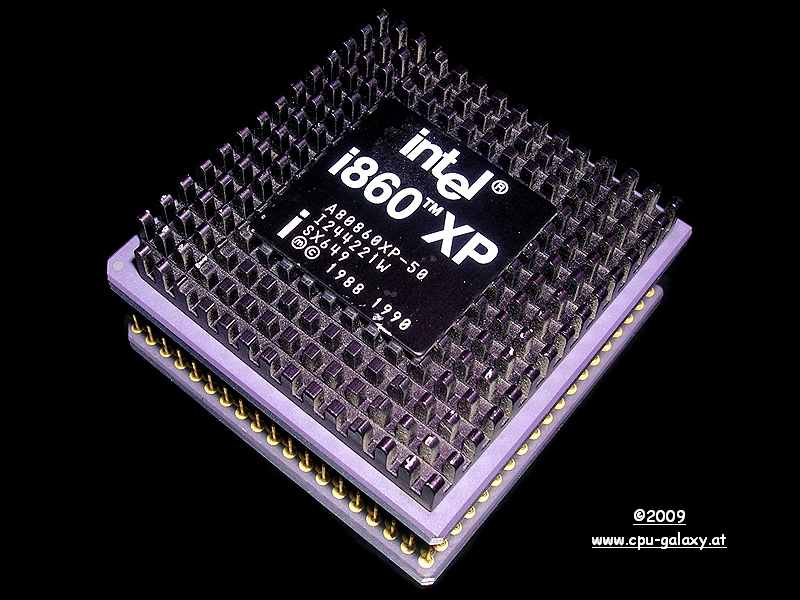

A80860XR-40	A80860XP-40	A80860XP-50

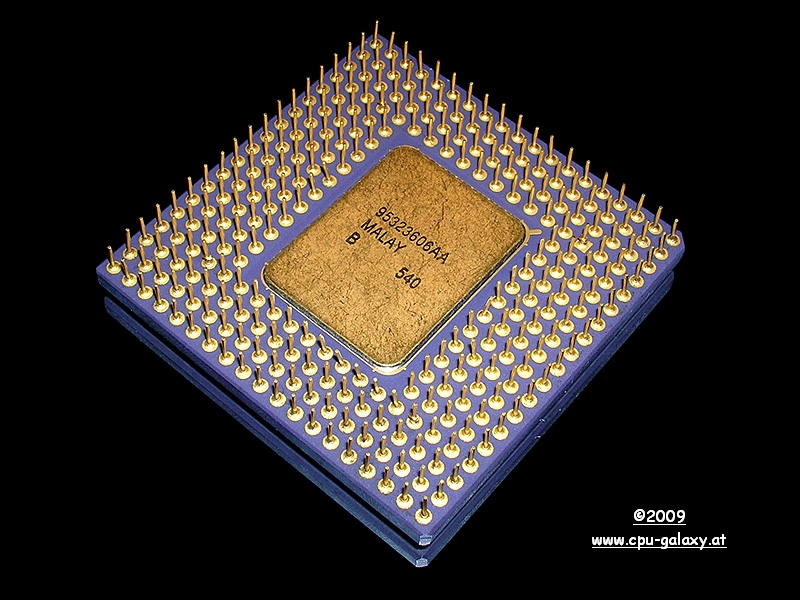

with XR LOGO, SX438, USA bottom view	SX652, Malaysia bottom view	SX649, USA bottom view

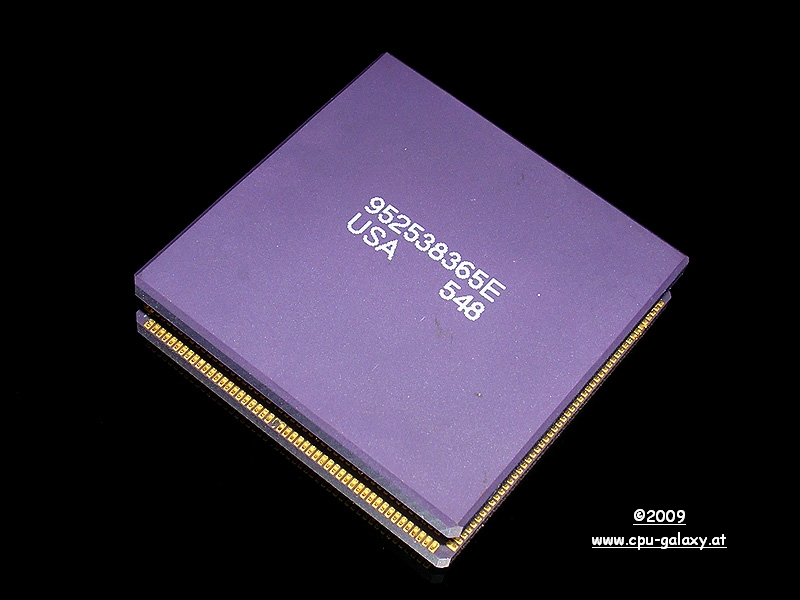

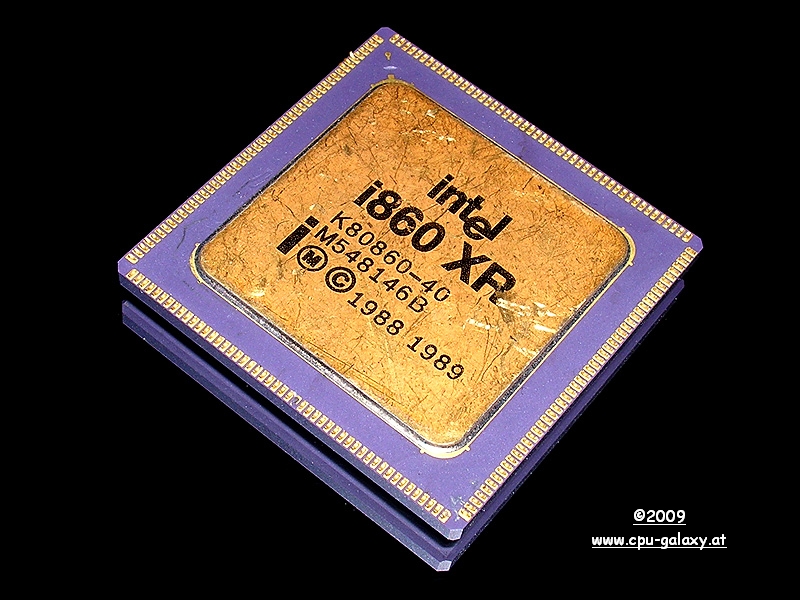

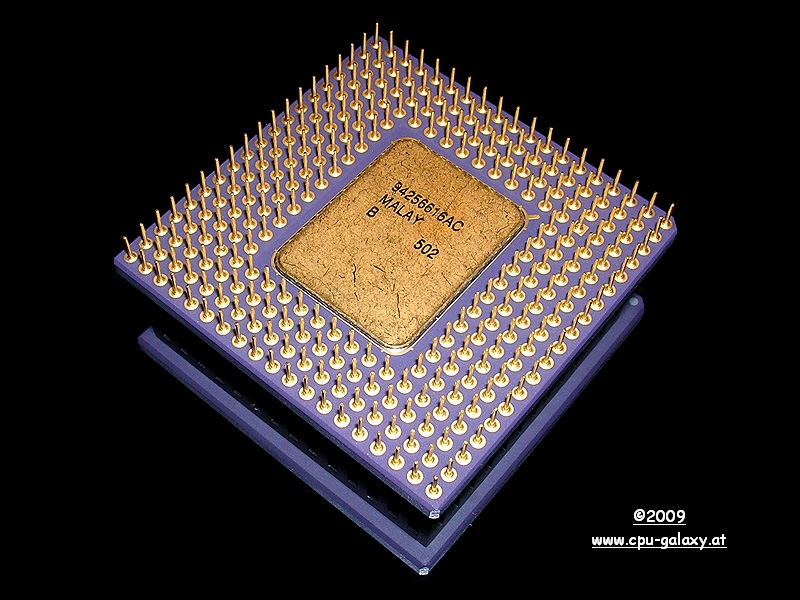

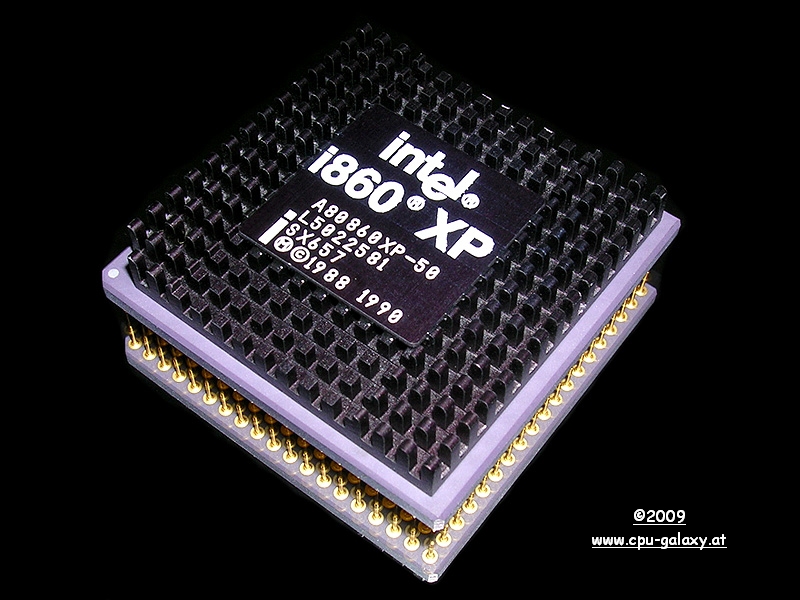

A80860XP-50	K80860-40

SX657, Malaysia bottom view	USA bottom view
