Introduction date:
Frequency:
Category:
Technology:
Addressable memory:
Address Bus:
Number of Transistors:
History:
|
1992
50 - 100 MHz
32 Bit Microprocessor with speed doubling technology
4 Giga Byte
32 Bit
DX: 1.200.000 0,8 Micron
SX: 900.000 1,0
Micron
Intel OverDrive processors are a category of various Intel CPUs
that were produced to upgrade computers. ODP is the acronym for
Over Drive Processor, however most OverDrives are ODPR (Over
Drive Processor Replacement) chips: To upgrade a computer to a
new processor you just replace it with the new one.
|

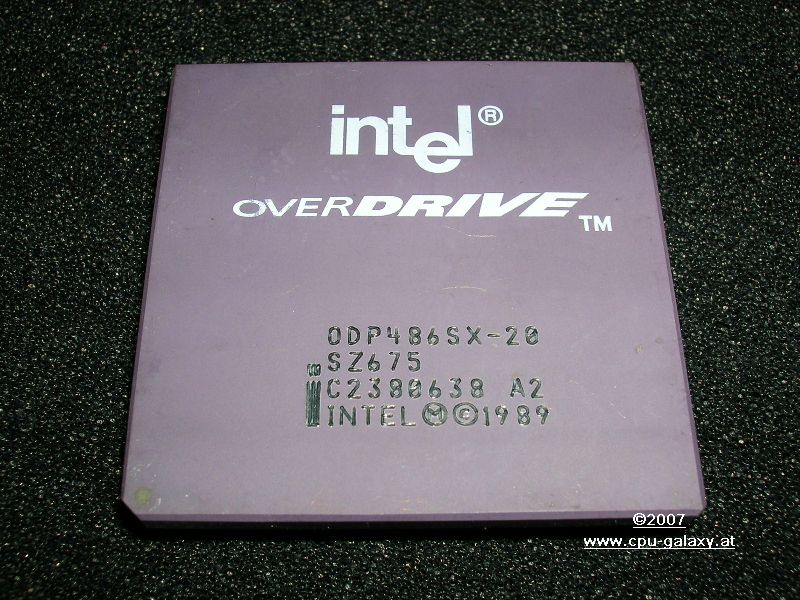

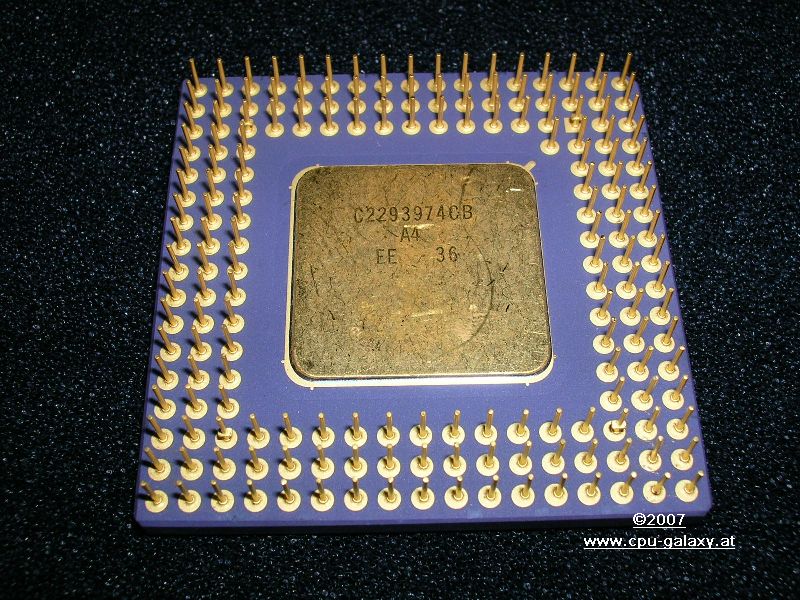

ODP486SX-20:

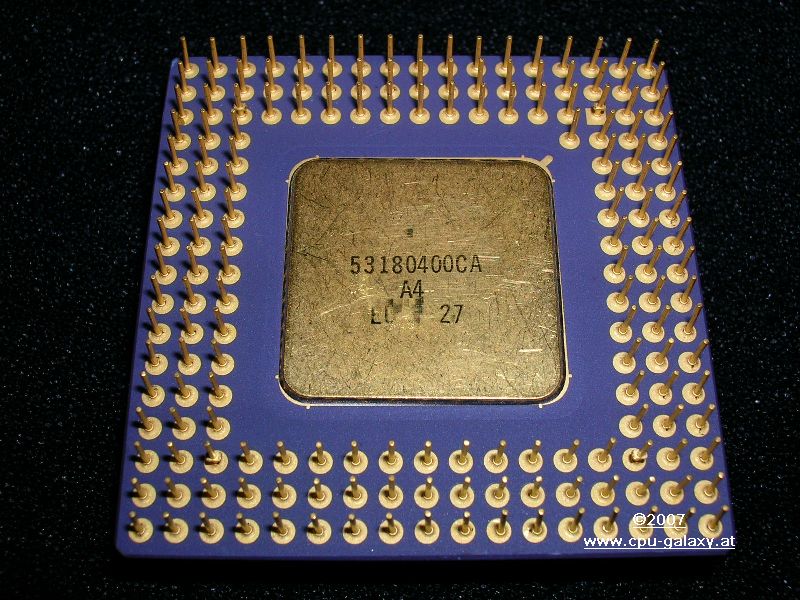

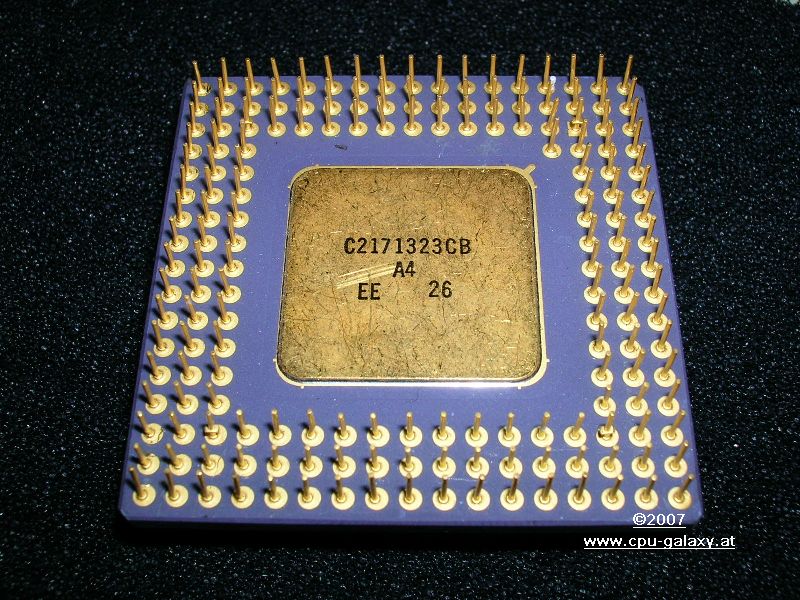

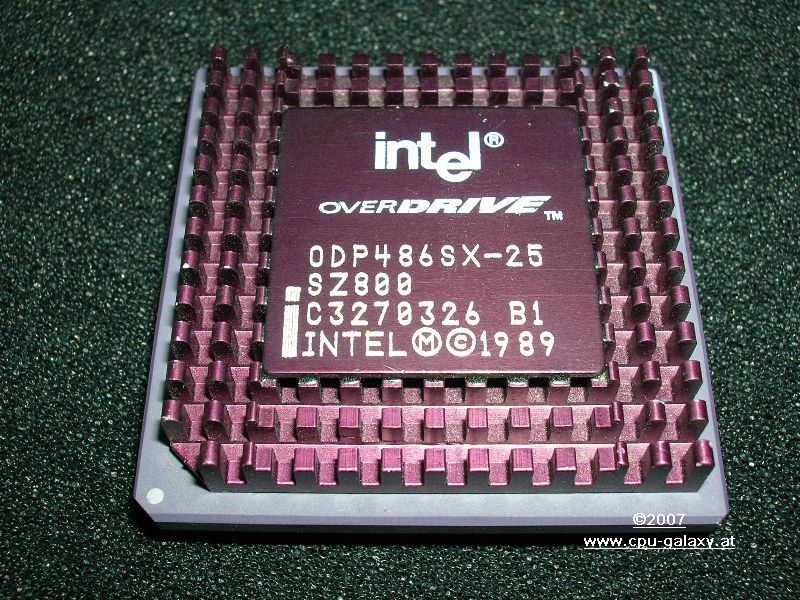

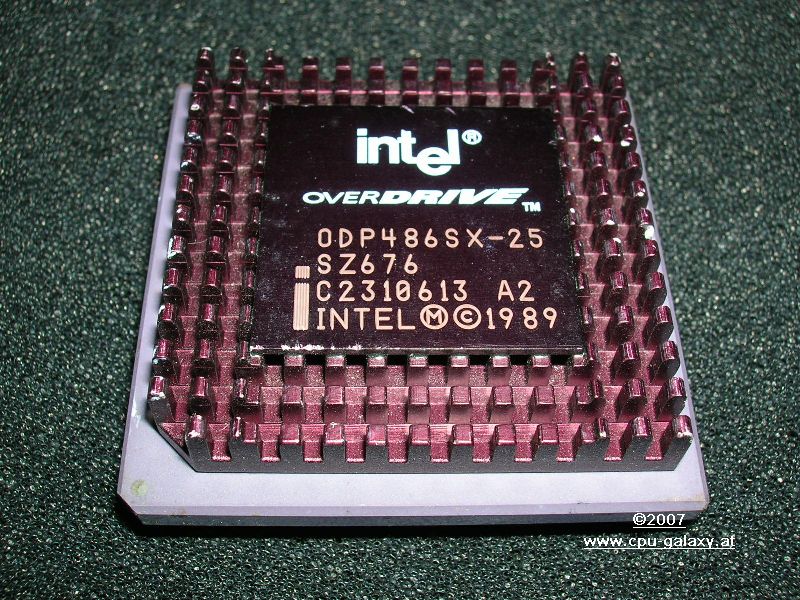

ODP486SX-25:

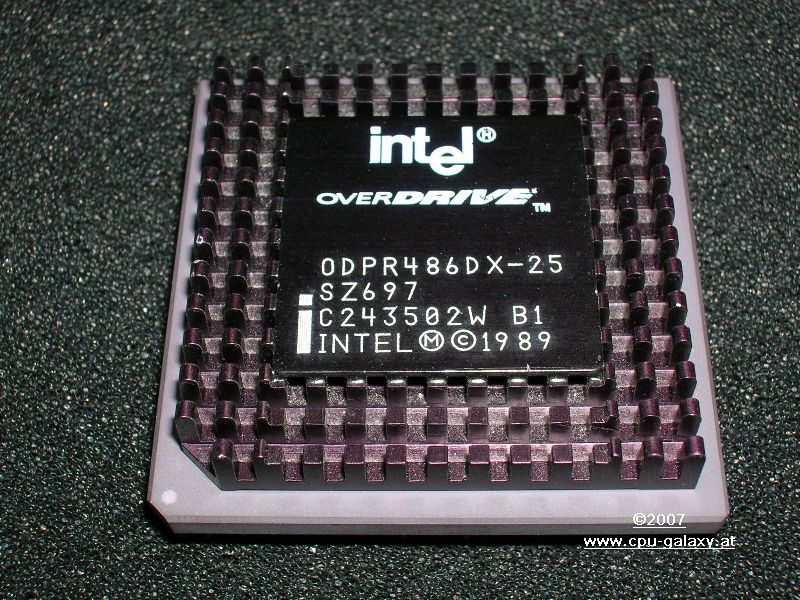

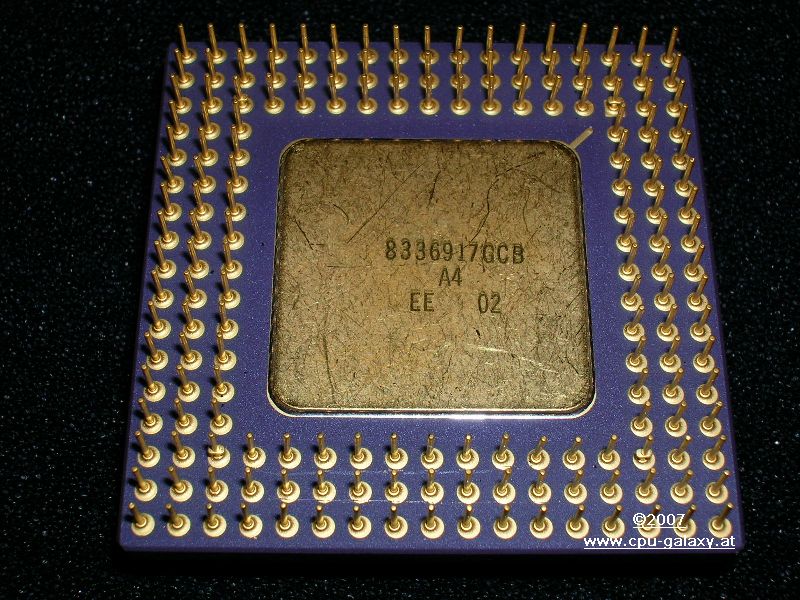

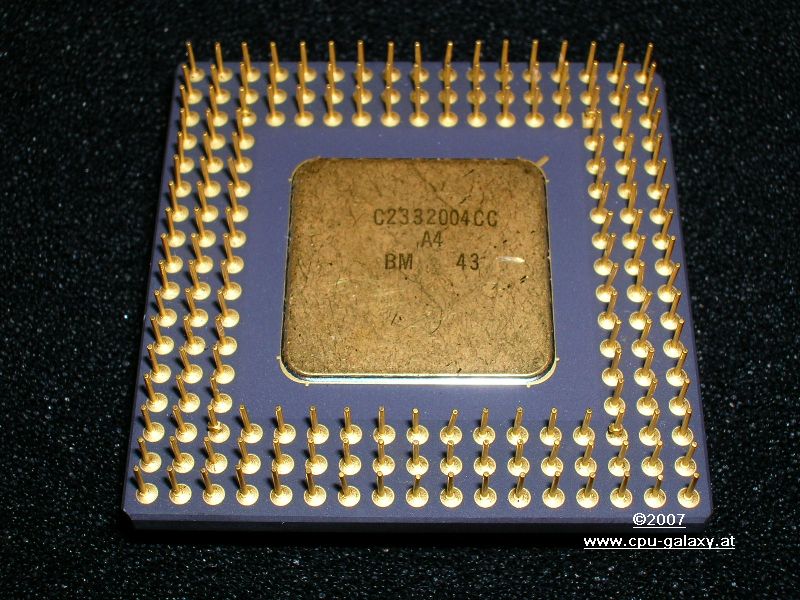

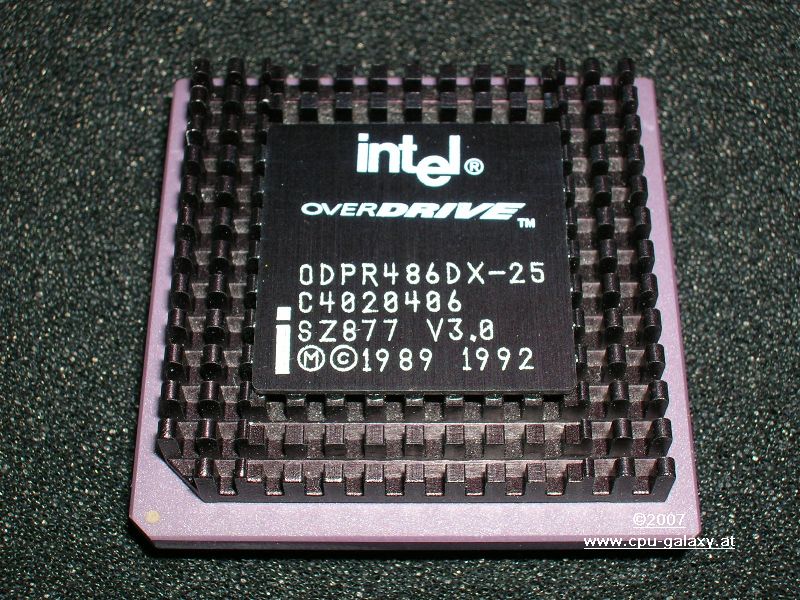

ODP486DX-25:

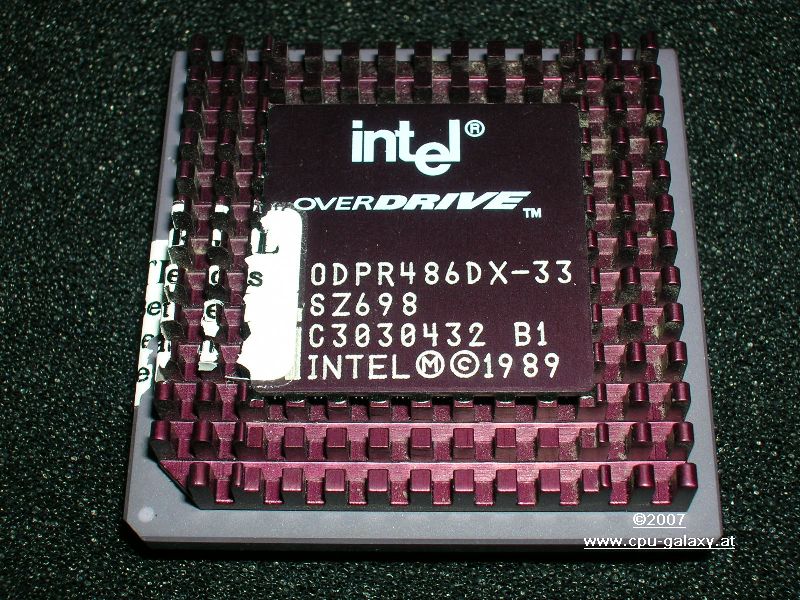

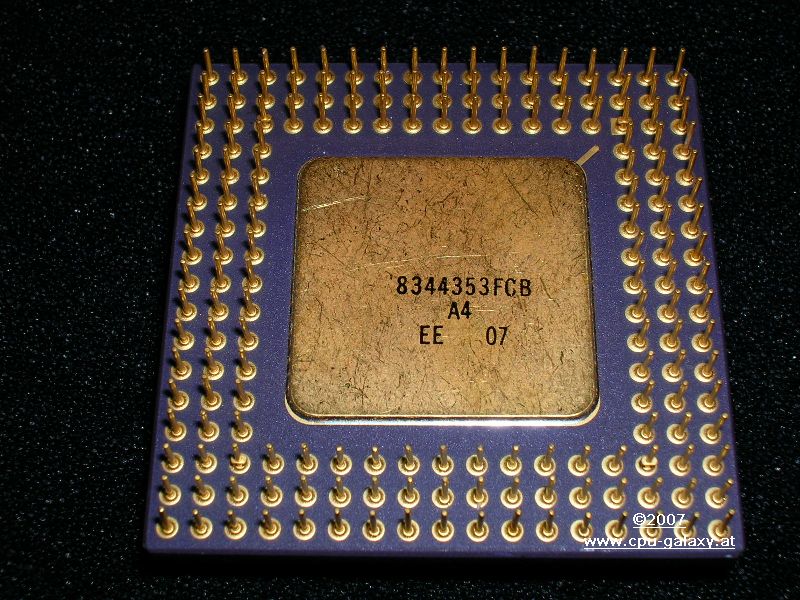

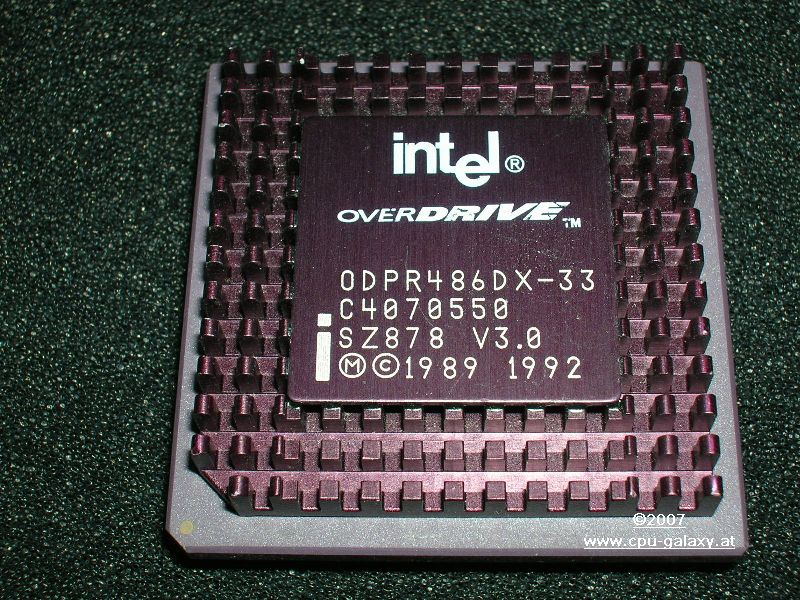

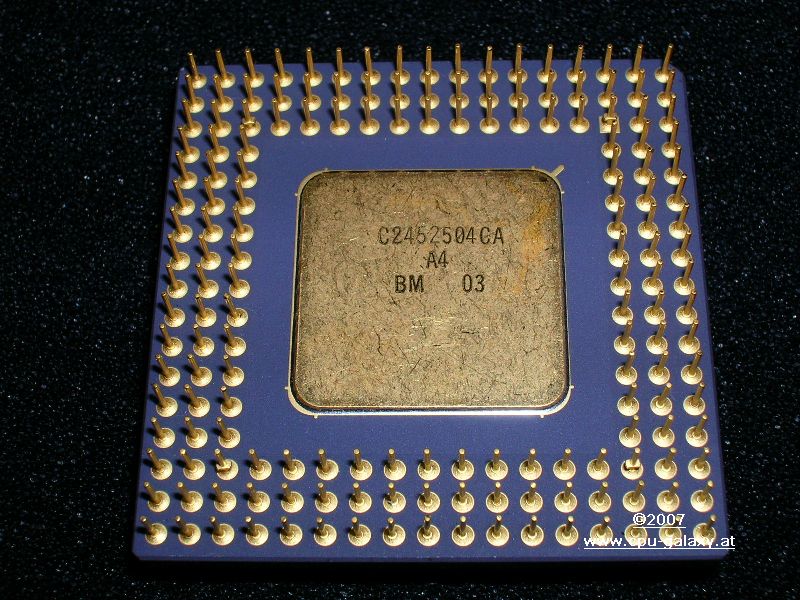

ODPR486DX-33:

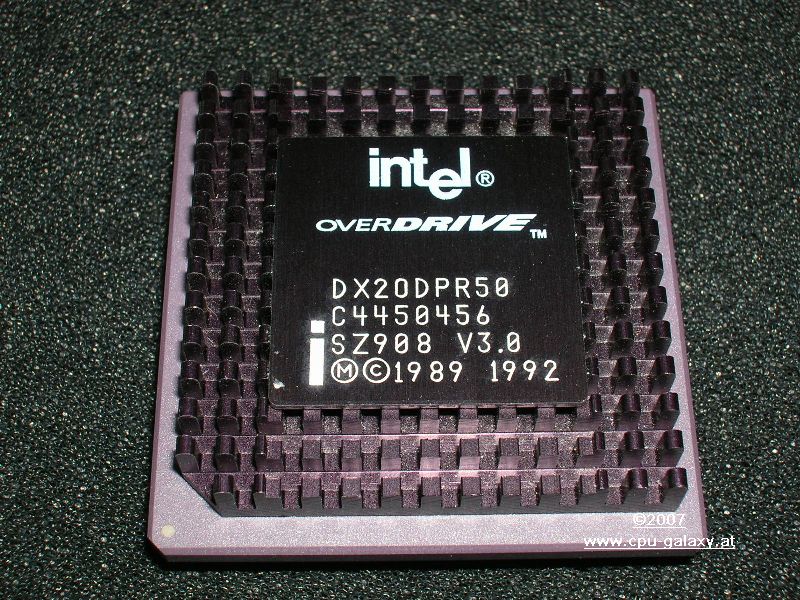

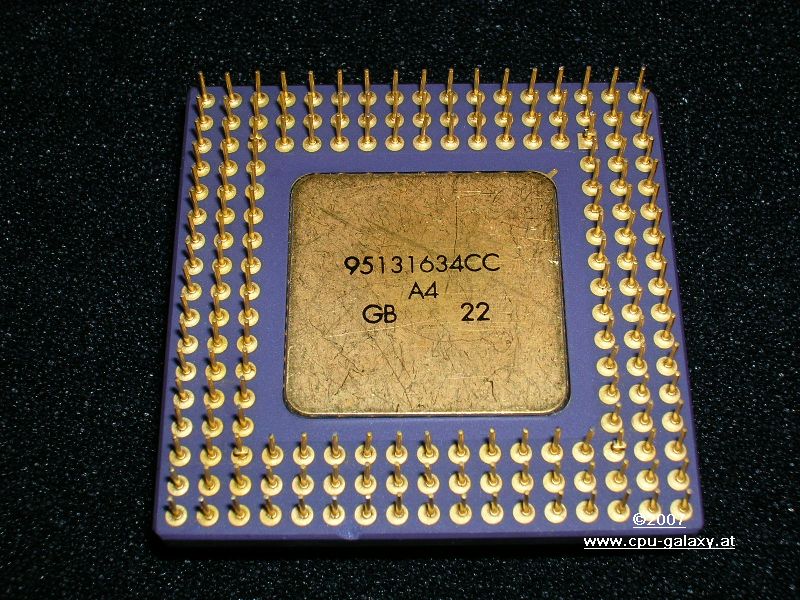

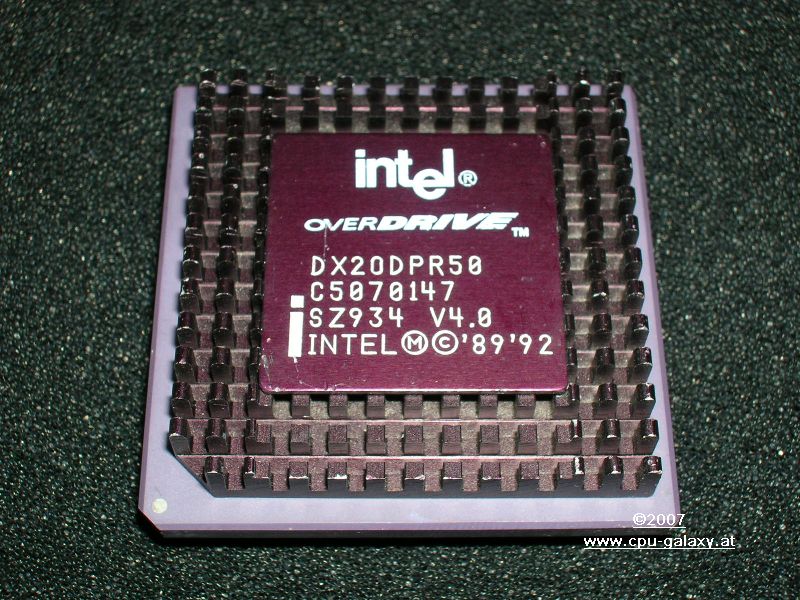

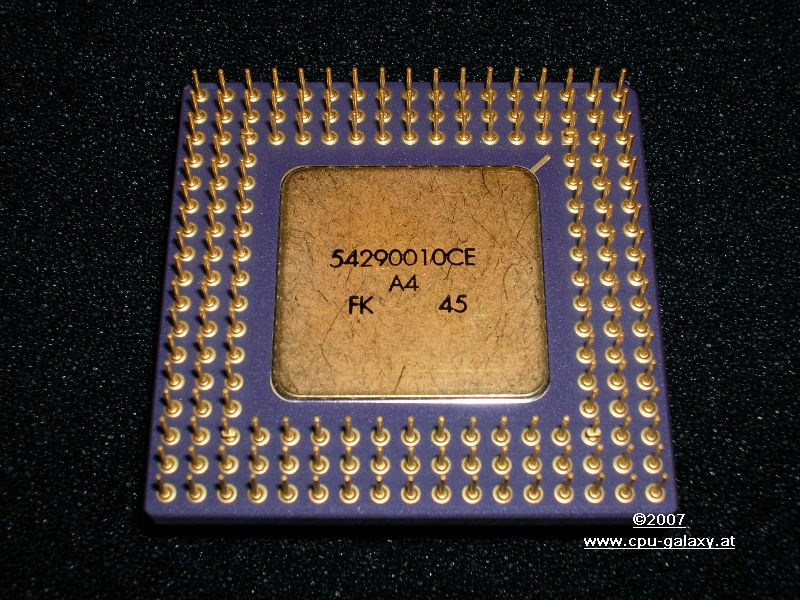

DX2ODPR50:

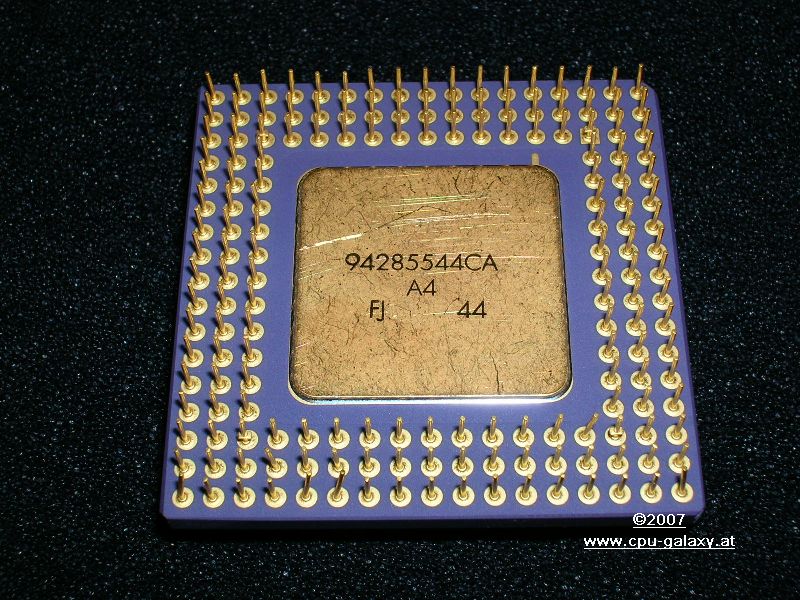

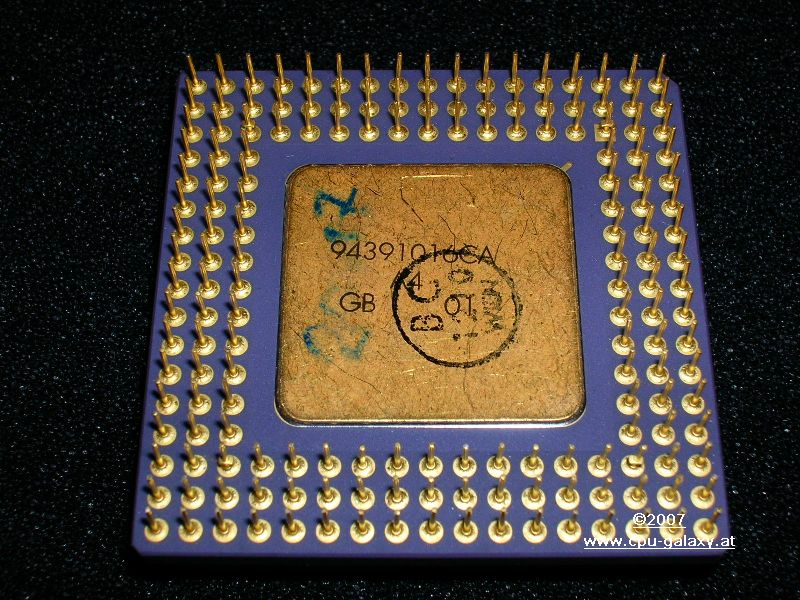

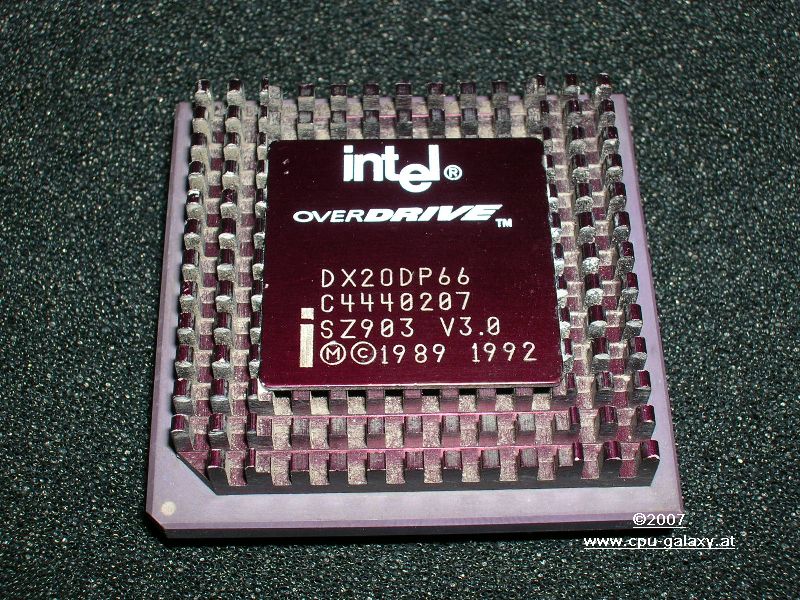

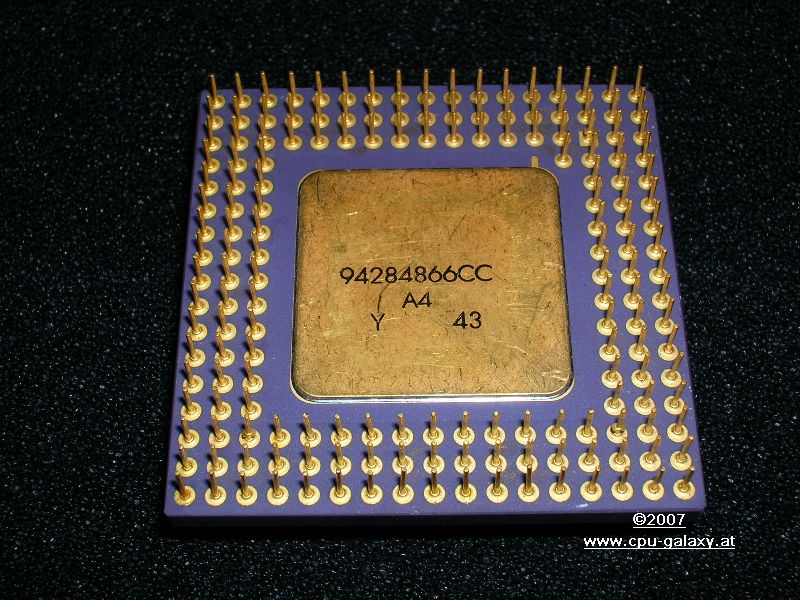

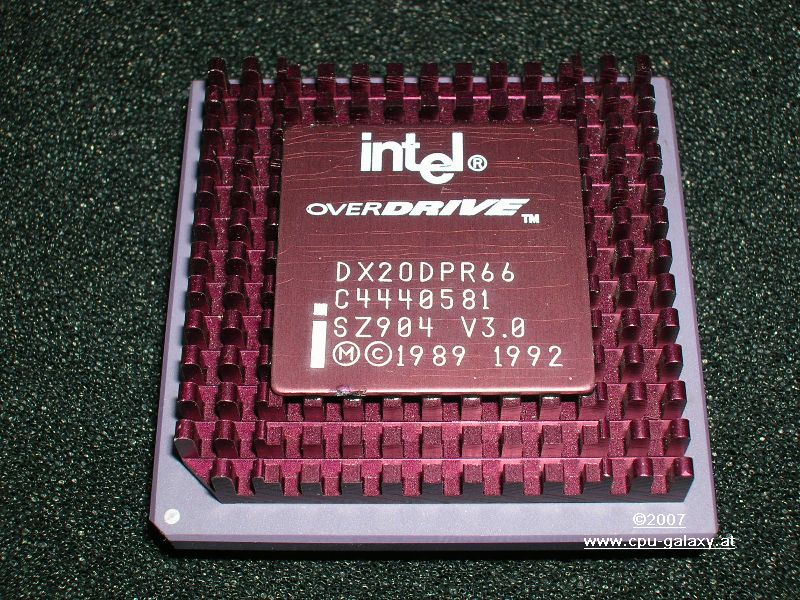

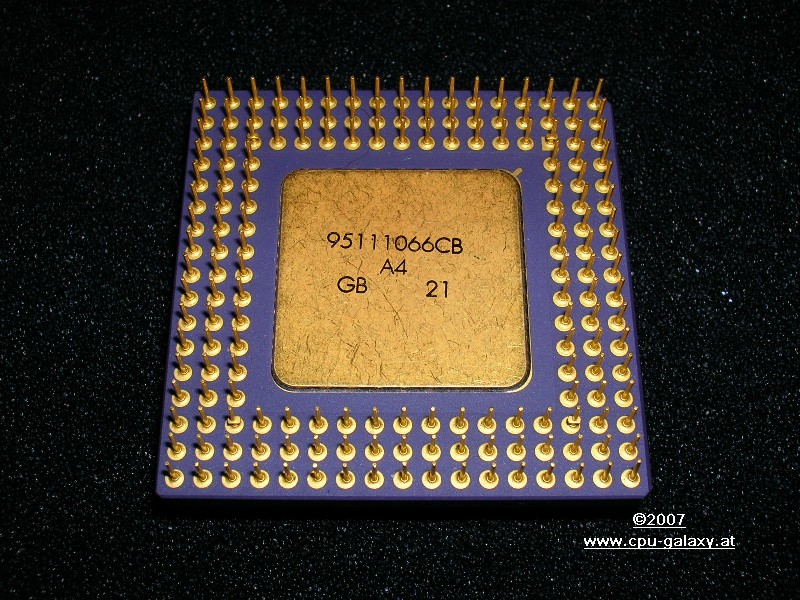

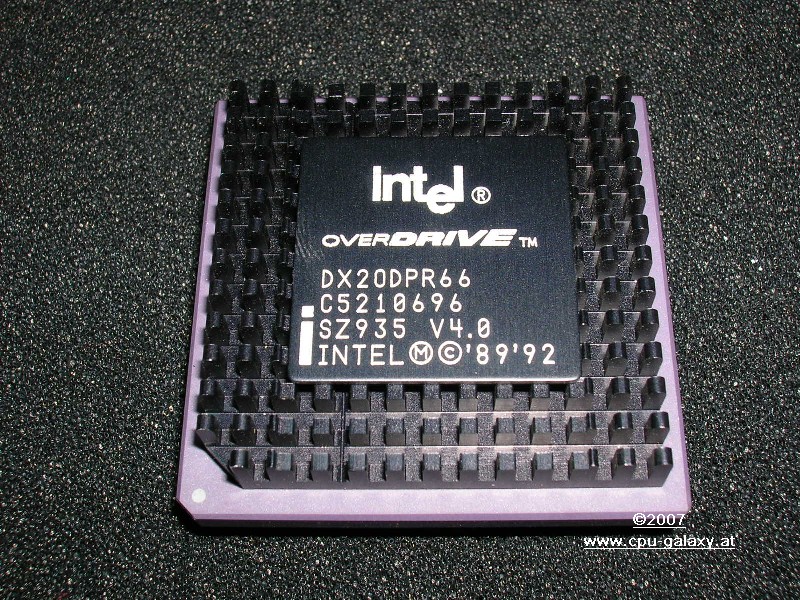

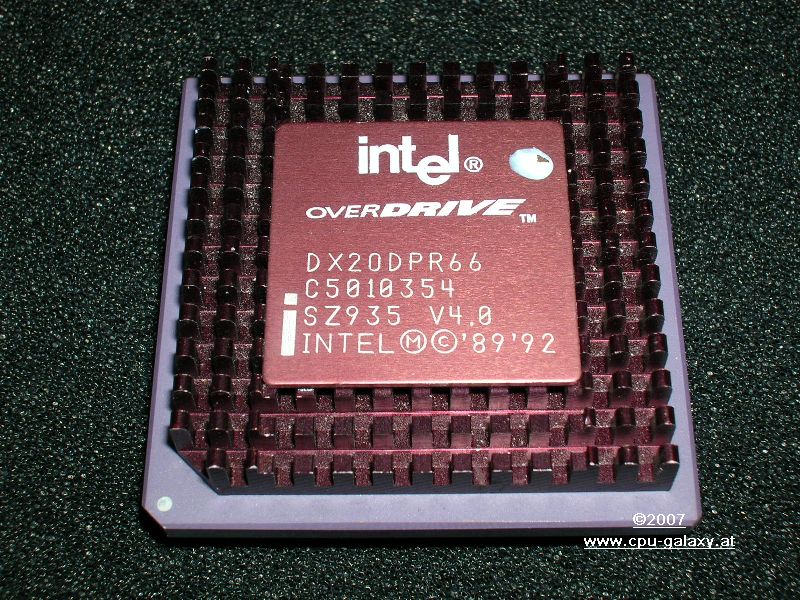

DX2ODP(R)66:

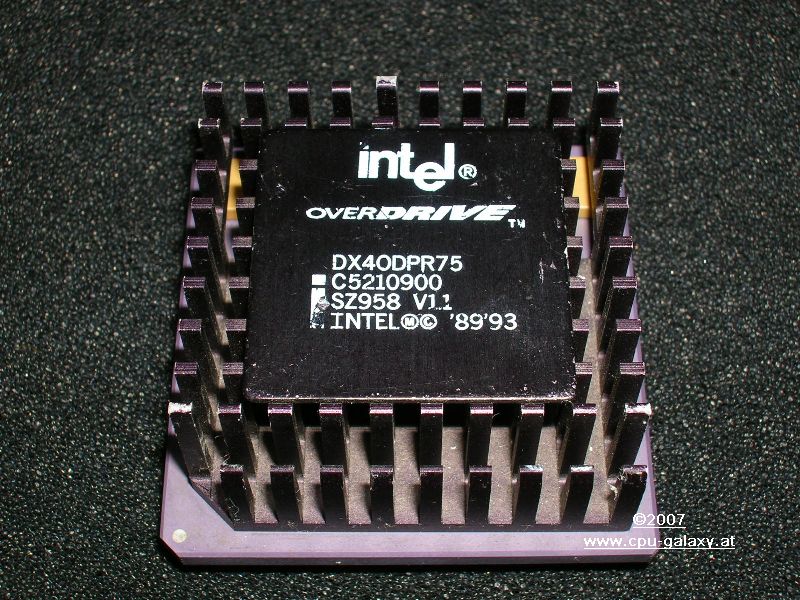

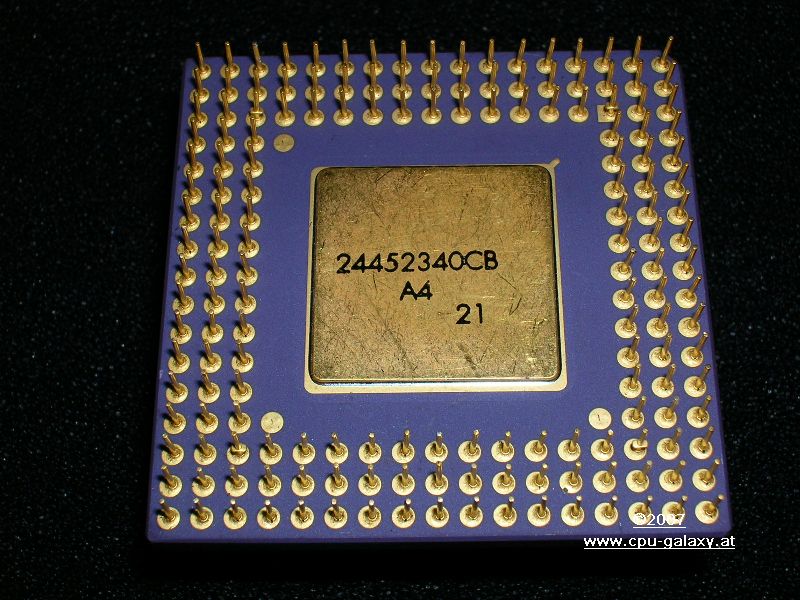

DX4ODP(R)75:

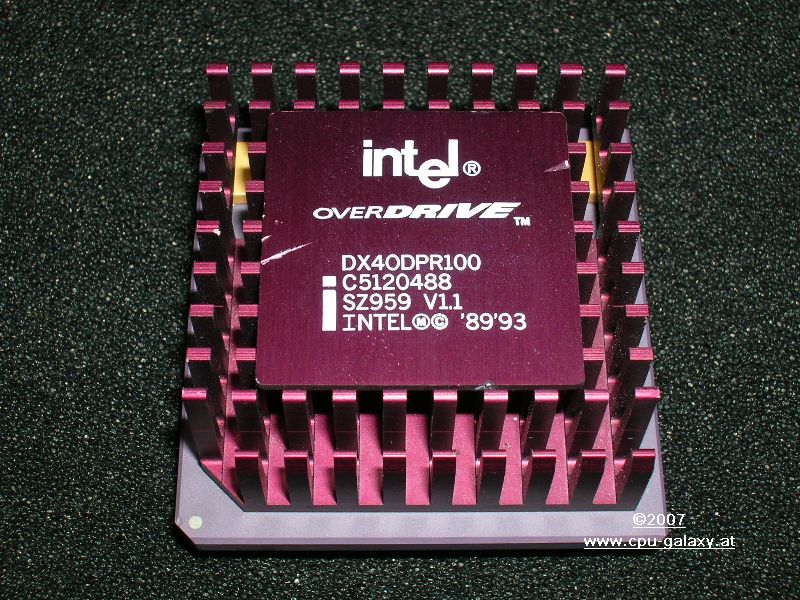

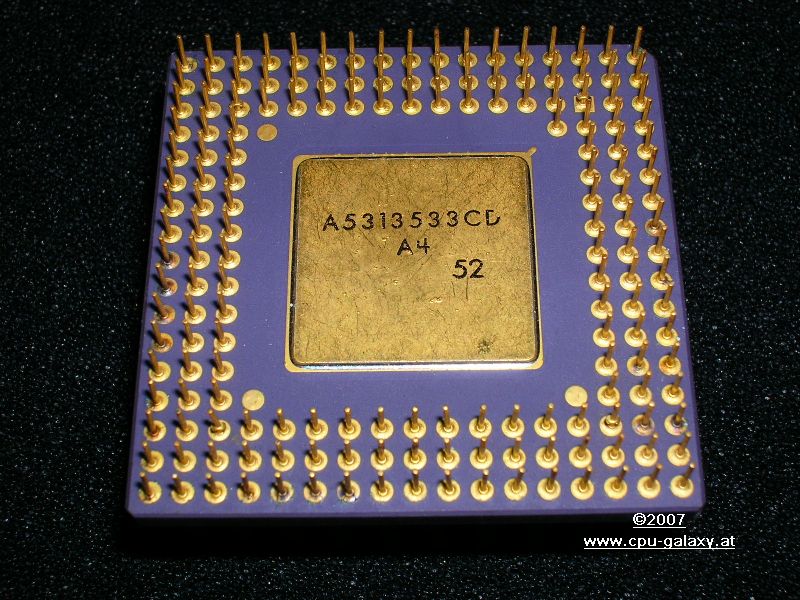

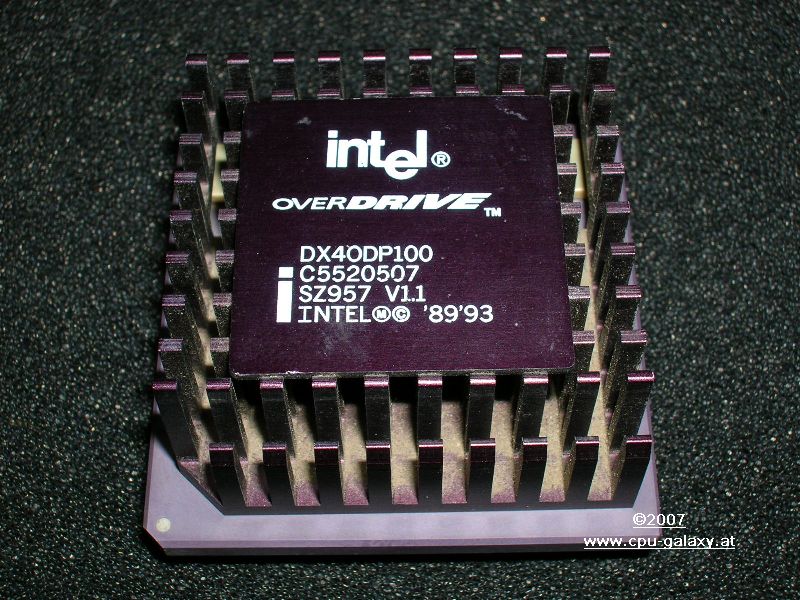

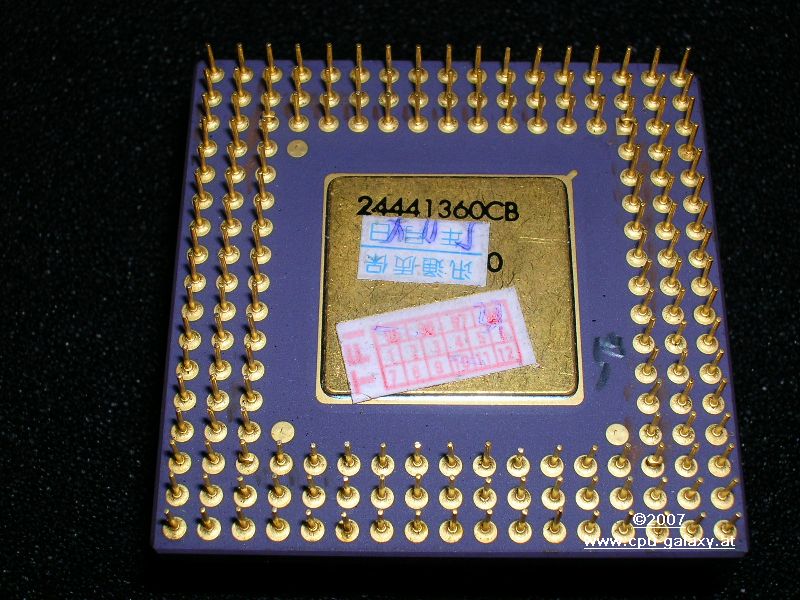

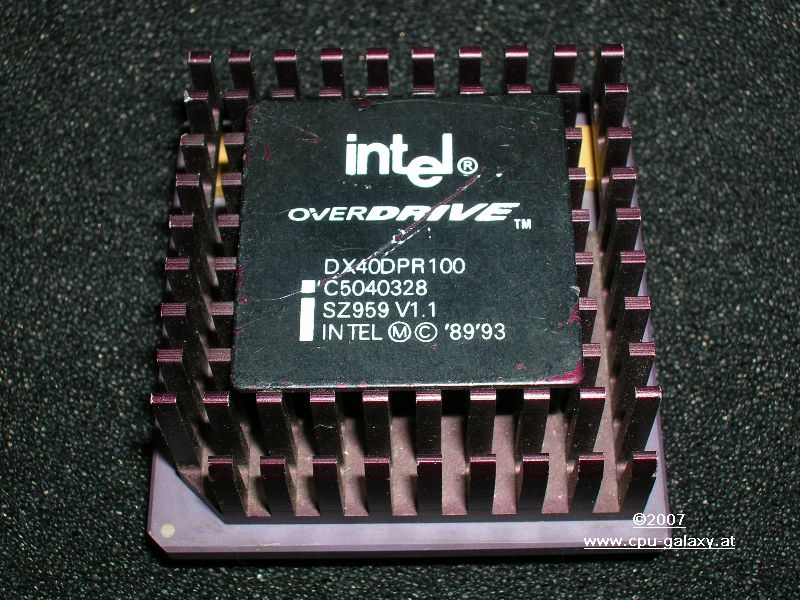

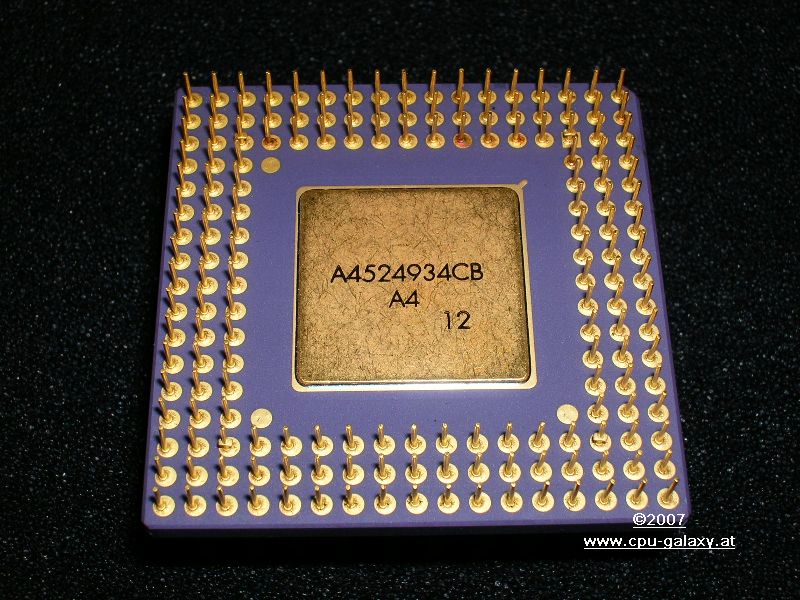

DX4ODP(R)100:
ODPR:
ODP: |
20 MHz Intel 486SX based systems to 40 MHz
25 MHz Intel 486SX based systems to 50 MHz
25 MHz Intel 486DX and SX based systems to 50 MHz
33 MHz Intel 486DX and SX based systems to 66 MHz
25 MHz Intel 486DX and SX based systems to 50 MHz
33 MHz Intel 486DX and SX based systems to 66 MHz
25 MHz Intel 486DX & 16/20/25 MHz 486SX based systems to 75 MHz
33 MHz Intel 486DX & SX based systems to 100 MHz
Over
Drive
Processor
Replacement,
To upgrade a computer to a new processor you just replace it
with the new one.
Over
Drive
Processor
ODP chips in contrast were made for additional sockets on the
main board, the Performance Upgrade Socket. |
